Published row 1
- Power
- 7W
- Dimensions
- Ø90 × H45 mm
- Cut-out
- Ø70 mm

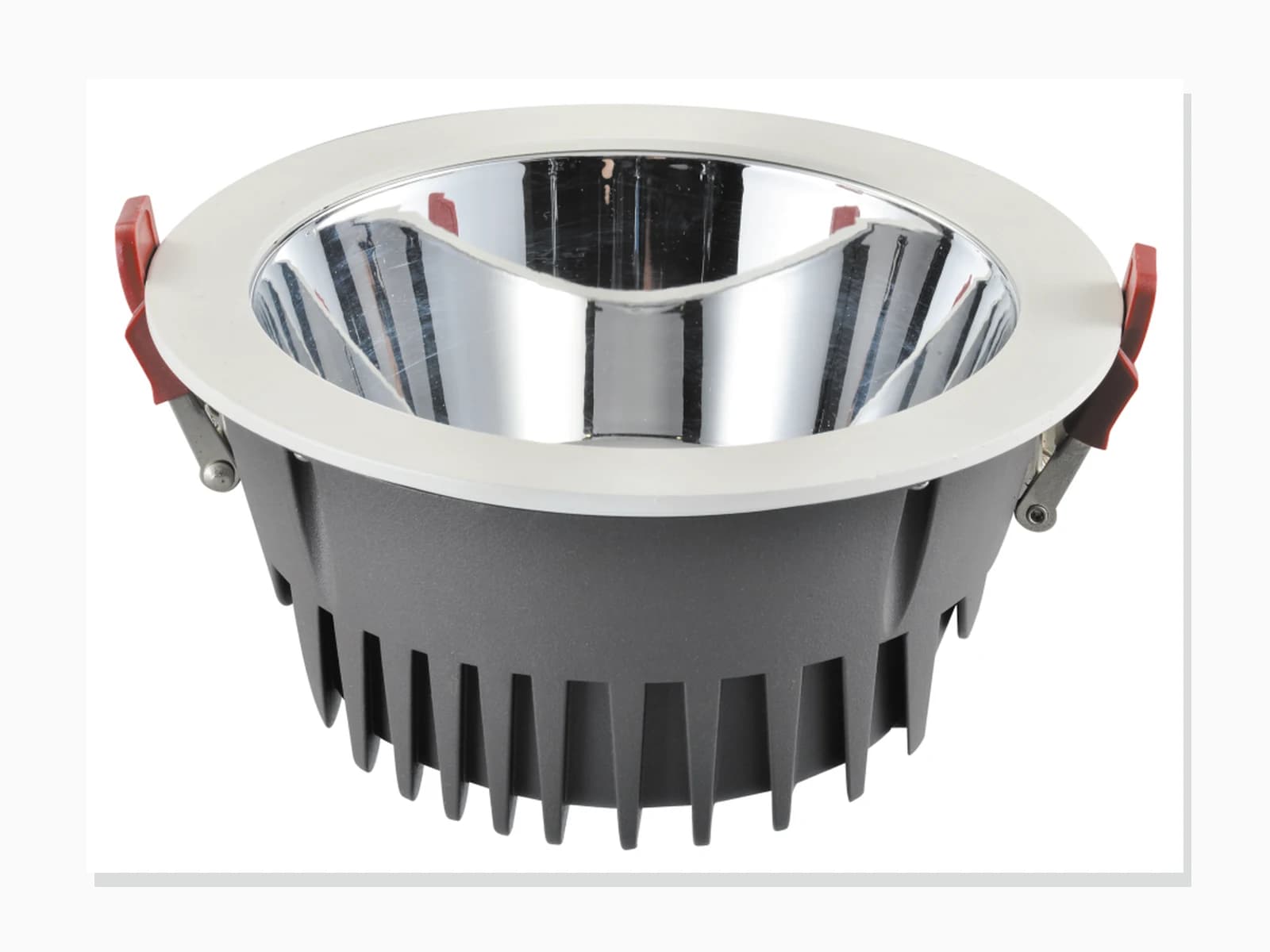

Product model / MET-TD806
Reflector Anti-Glare Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application
Detail 01
Detail 02

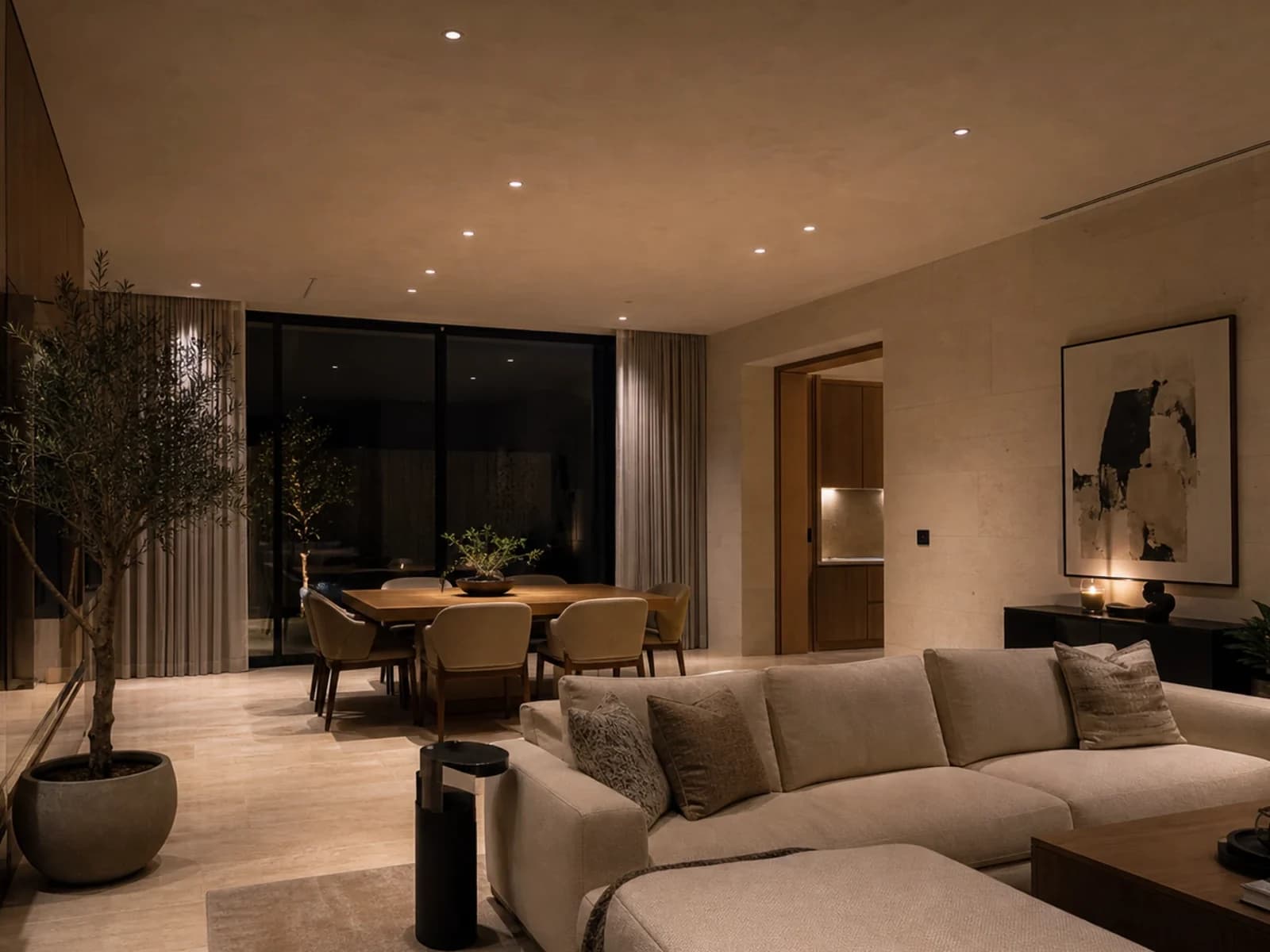

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 7W | Ø90 × H45 mm | Ø70 mm |
| 10W | Ø105 × H65 mm | Ø85 mm |
| 14W | Ø130 × H68 mm | Ø105 mm |
| 20W | Ø165 × H90 mm | Ø140 mm |
| 30W | Ø185 × H95 mm | Ø165 mm |
| 34W | Ø220 × H105 mm | Ø200 mm |
Published row 2
- Power
- 10W
- Dimensions
- Ø105 × H65 mm
- Cut-out
- Ø85 mm
Published row 3
- Power
- 14W
- Dimensions
- Ø130 × H68 mm
- Cut-out
- Ø105 mm
Published row 4
- Power
- 20W
- Dimensions
- Ø165 × H90 mm
- Cut-out
- Ø140 mm
Published row 5
- Power
- 30W
- Dimensions
- Ø185 × H95 mm
- Cut-out
- Ø165 mm
Published row 6
- Power
- 34W
- Dimensions
- Ø220 × H105 mm
- Cut-out
- Ø200 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- SMD LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 60°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD806
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
