Published row 1
- Power
- 12W
- Dimensions
- Ø94 × H64 mm
- Cut-out
- Ø80-85 mm
Product model / MET-TD805

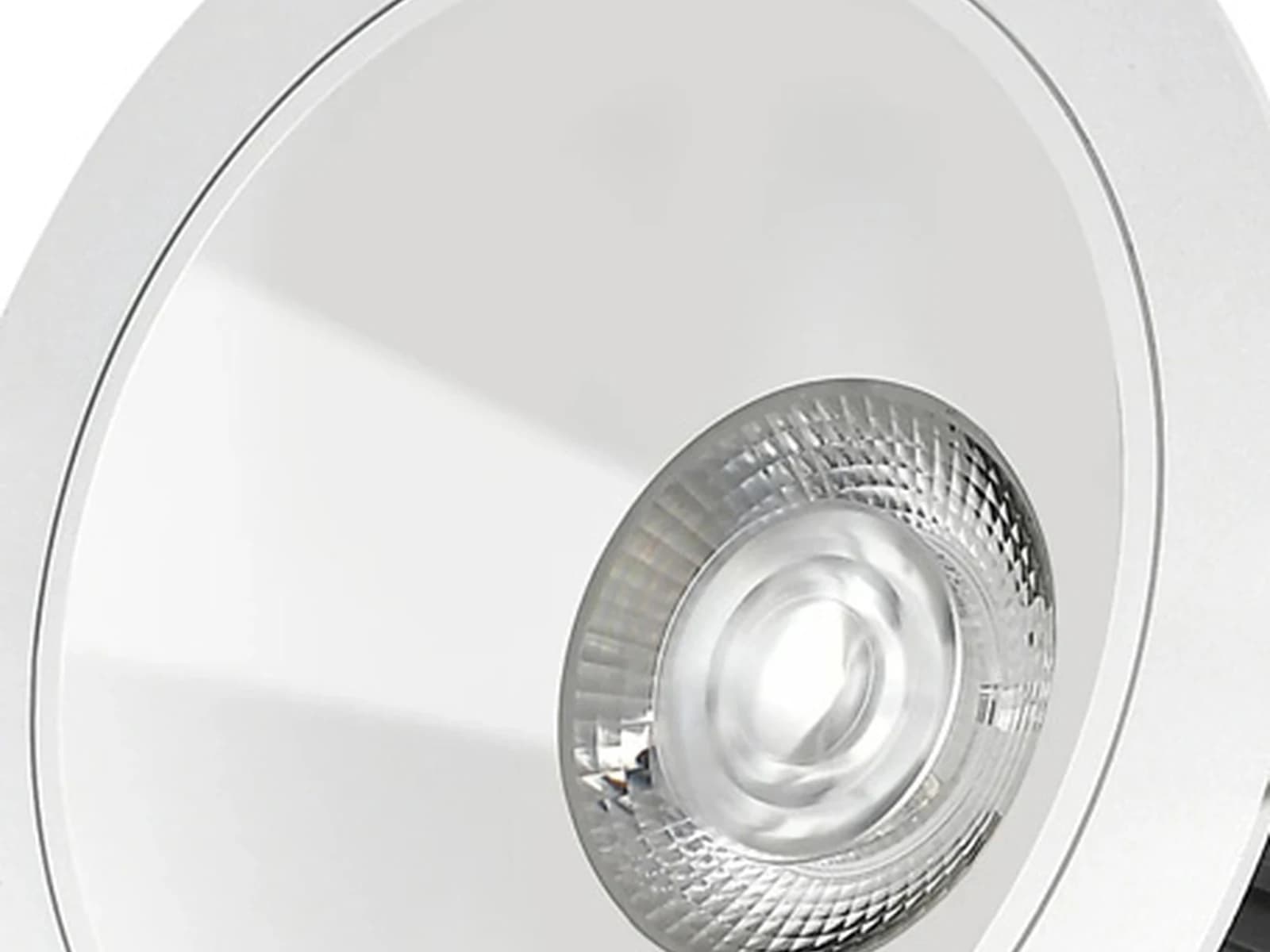

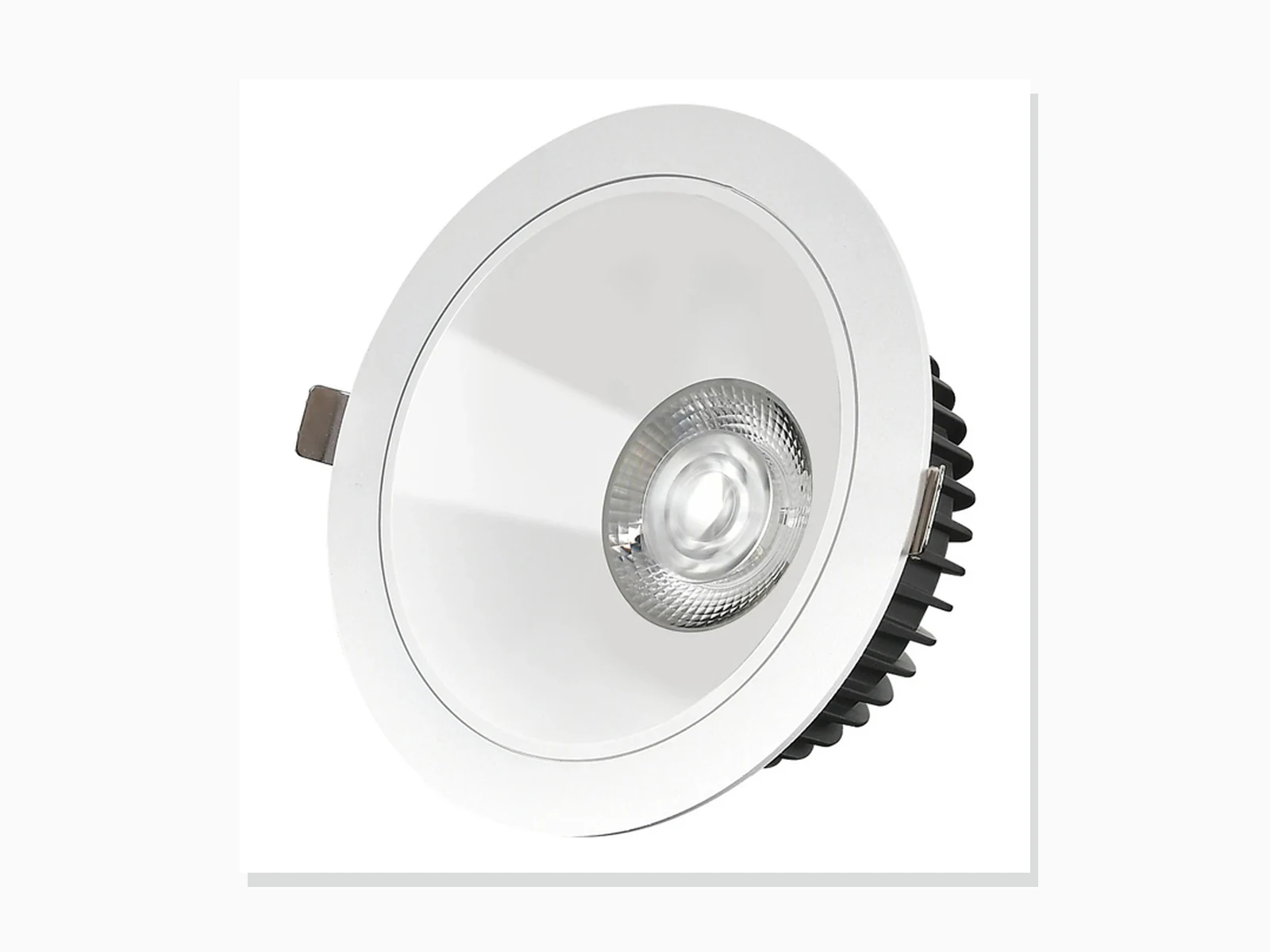

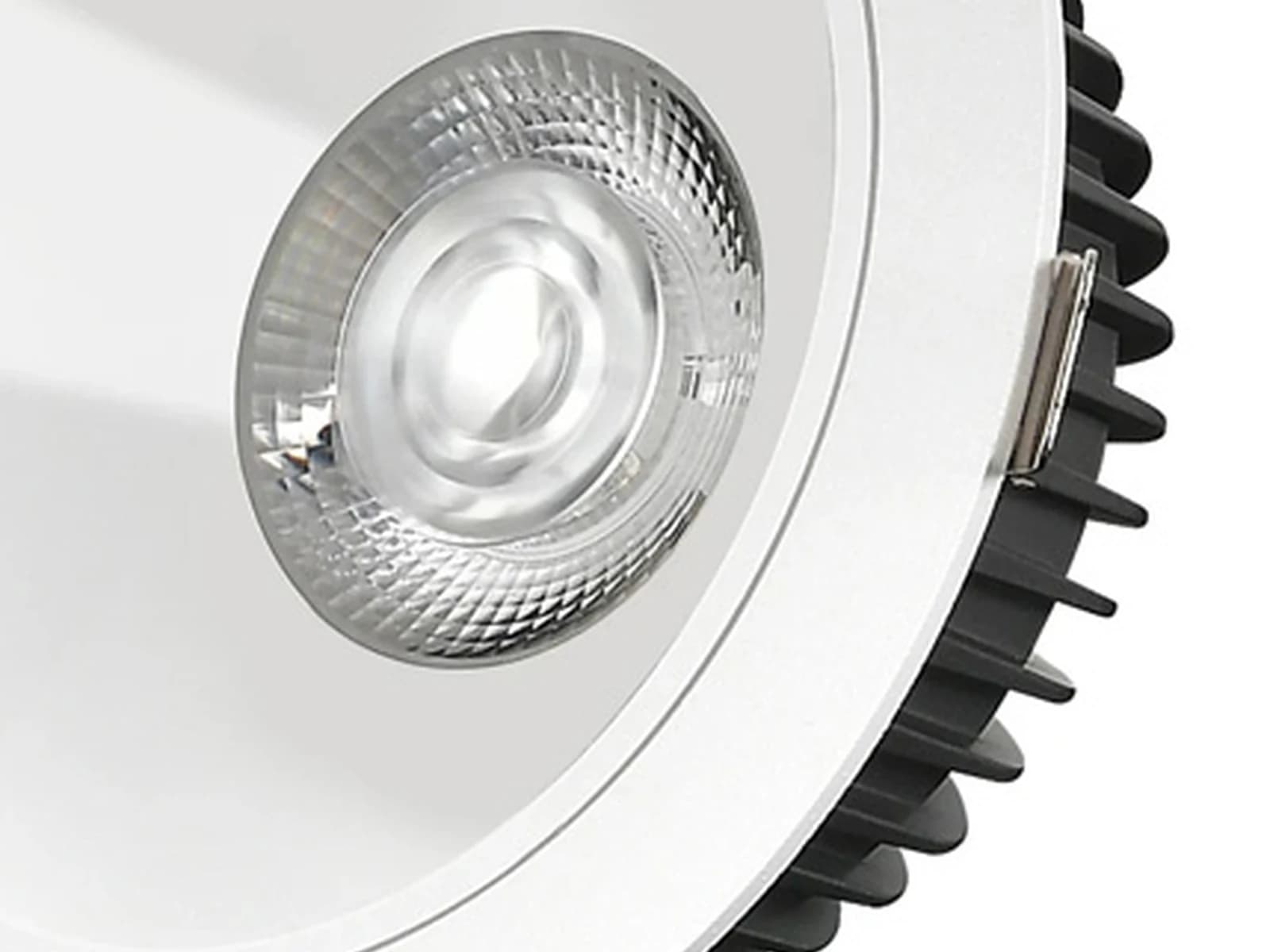

Adjustable Recessed LED Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application
Detail 01
Detail 02

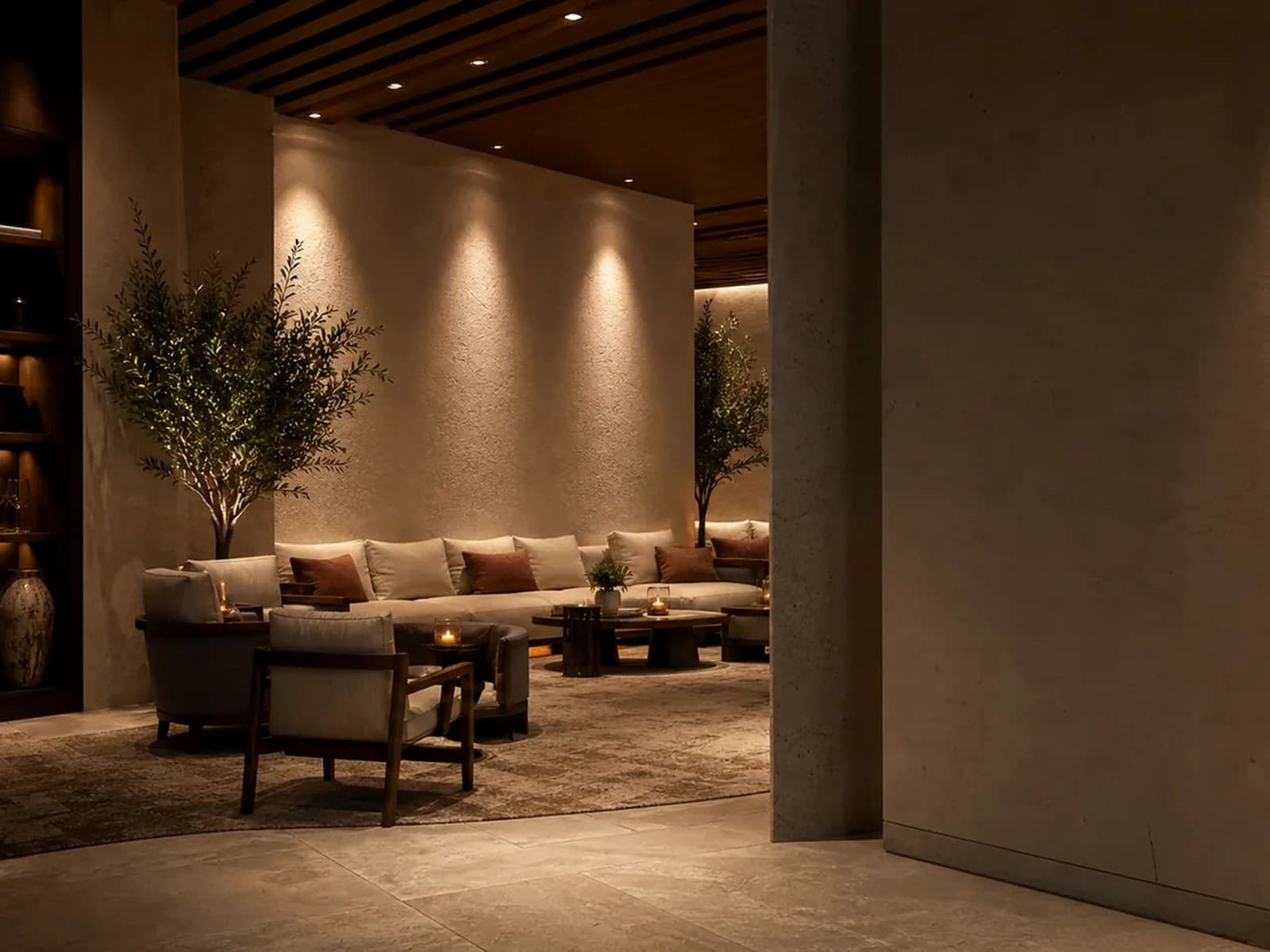

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 12W | Ø94 × H64 mm | Ø80-85 mm |
| 14W | Ø114 × H68 mm | Ø95-105 mm |
| 20-24W | Ø140 × H74 mm | Ø120-130 mm |
| 30W | Ø184 × H80 mm | Ø150-175 mm |
| 36W | Ø184 × H80 mm | Ø150-175 mm |
Published row 2
- Power
- 14W
- Dimensions
- Ø114 × H68 mm
- Cut-out
- Ø95-105 mm
Published row 3
- Power
- 20-24W
- Dimensions
- Ø140 × H74 mm
- Cut-out
- Ø120-130 mm
Published row 4
- Power
- 30W
- Dimensions
- Ø184 × H80 mm
- Cut-out
- Ø150-175 mm
Published row 5
- Power
- 36W
- Dimensions
- Ø184 × H80 mm
- Cut-out
- Ø150-175 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90/97
- Beam
- 15° / 24° / 36° / 60°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD805
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
