Published row 1
- Power
- 7W
- Dimensions
- Ø108 × H54 mm
- Cut-out
- Ø80 mm

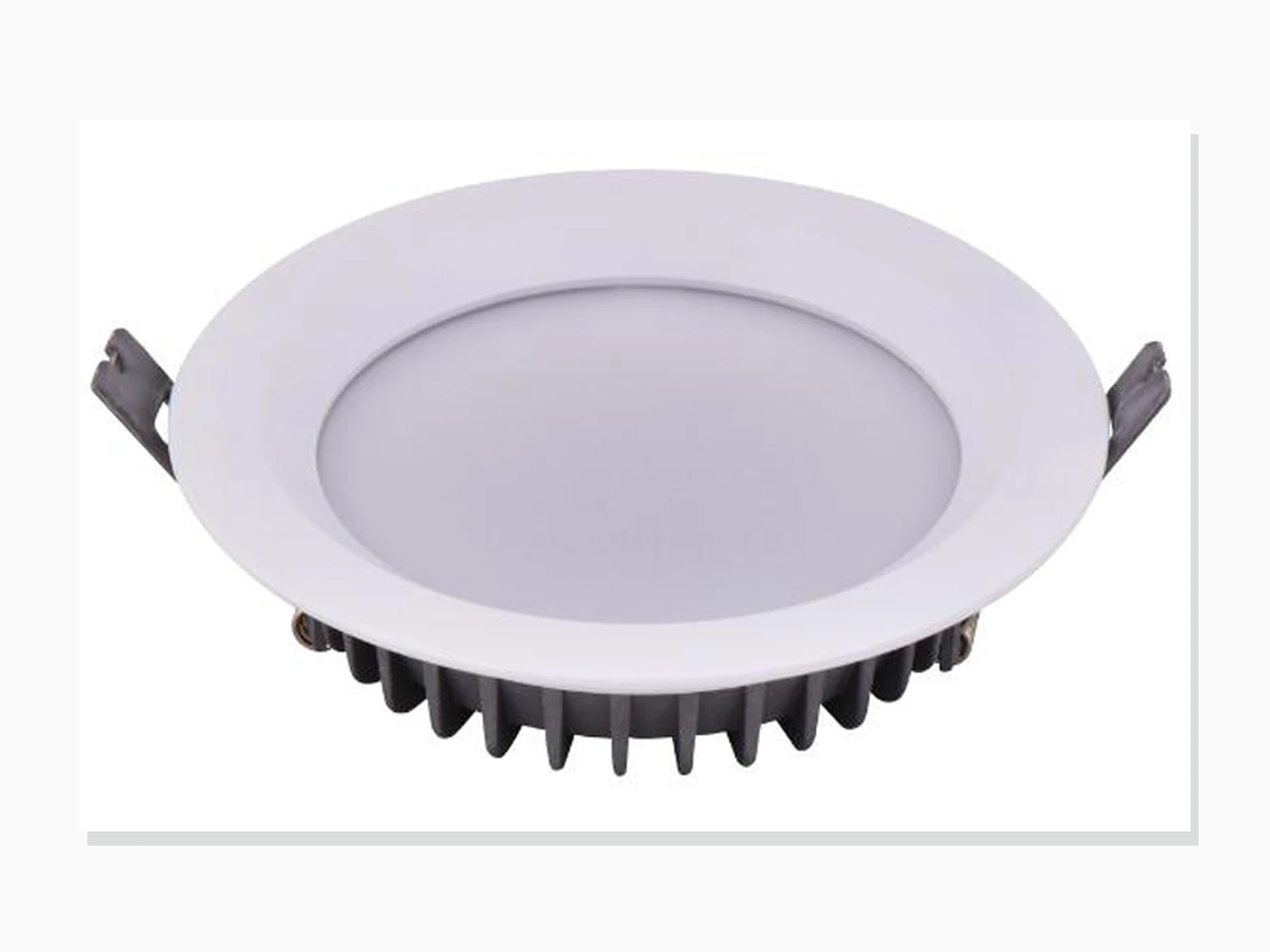

Product model / MET-TD717
Recessed LED Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application

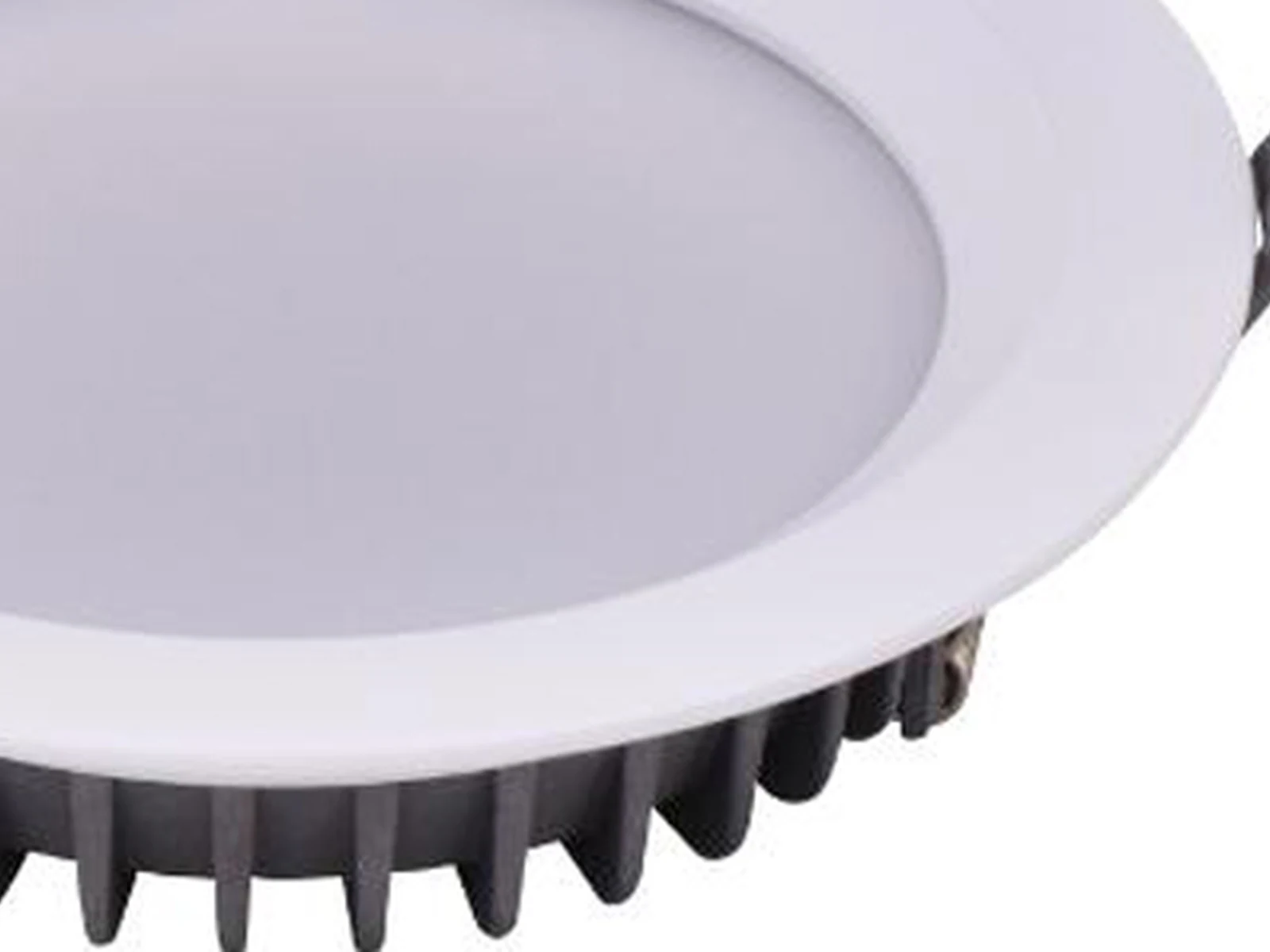

Detail 01

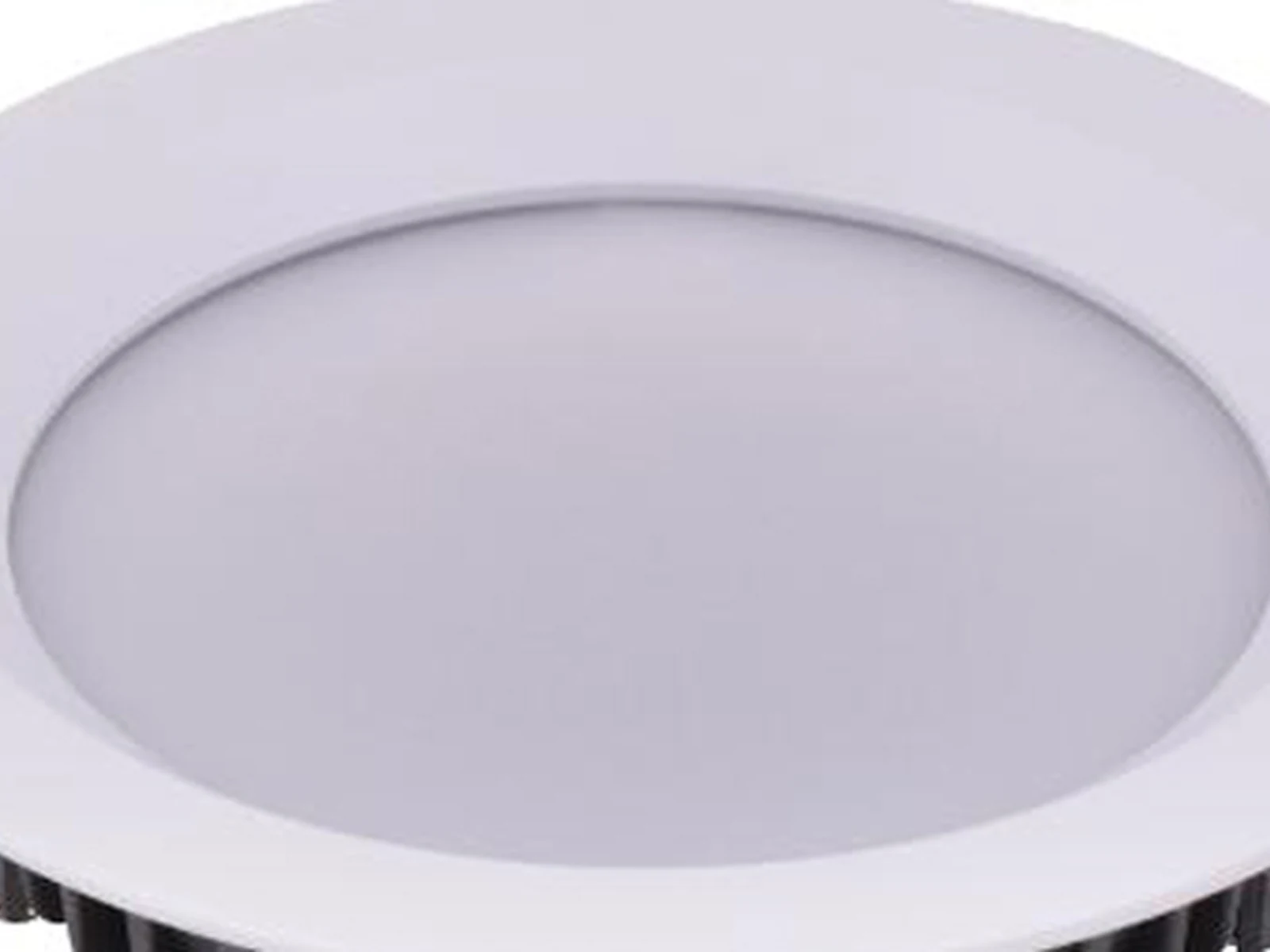

Detail 02

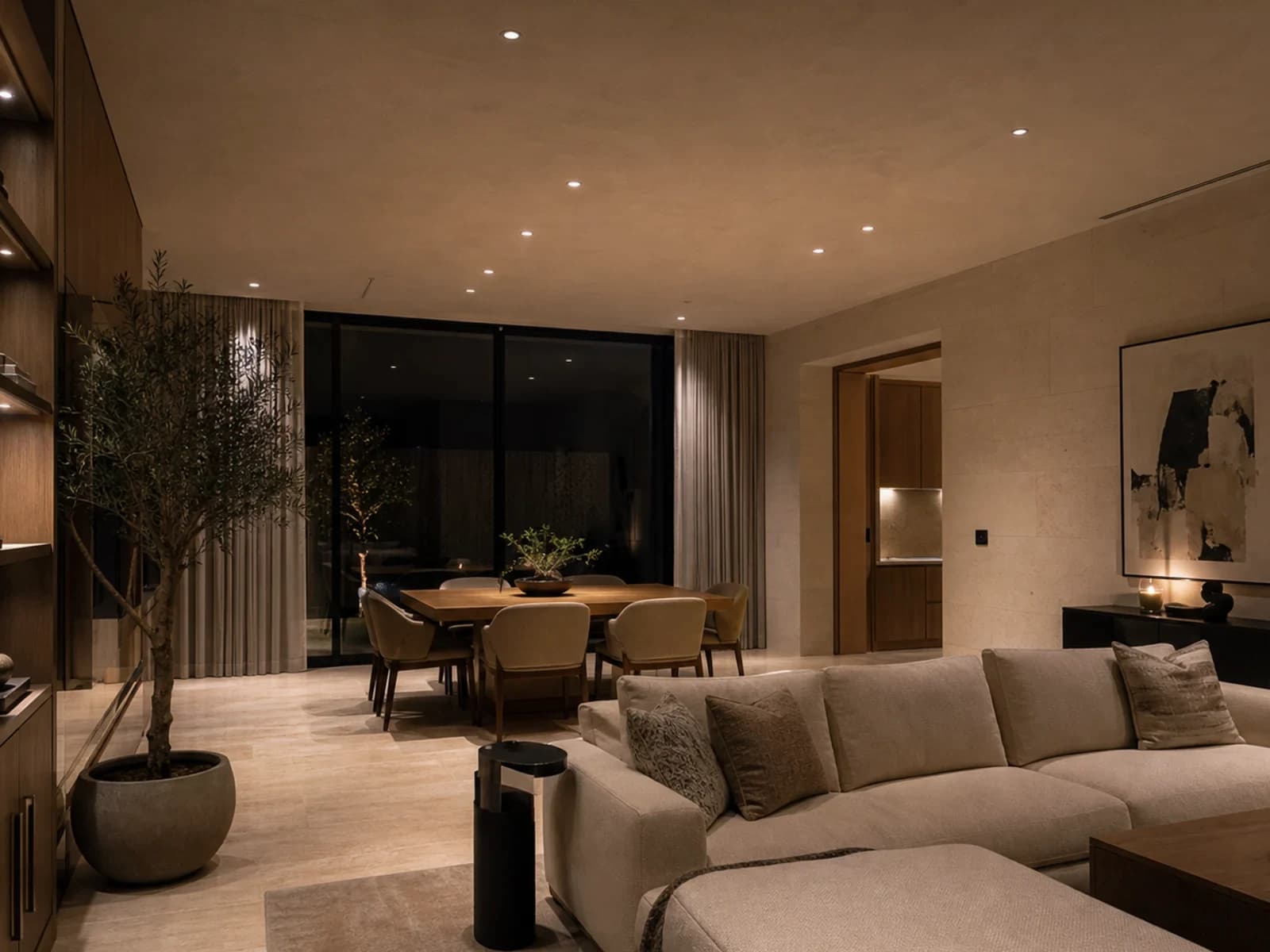

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 7W | Ø108 × H54 mm | Ø80 mm |
| 12W | Ø118 × H57 mm | Ø90 mm |
| 14W | Ø138 × H60 mm | Ø115 mm |
| 20W | Ø178 × H70 mm | Ø155 mm |
| 24W | Ø188 × H78 mm | Ø160 mm |
| 30W | Ø240 × H93 mm | Ø210 mm |
| 36W | Ø240 × H93 mm | Ø210 mm |
| 5W | Ø98 × H36 mm | Ø70 mm |
| 7W | Ø108 × H36 mm | Ø80 mm |
| 12W | Ø118 × H37 mm | Ø90 mm |
| 14W | Ø138 × H38.5 mm | Ø115 mm |
| 20W | Ø178 × H43.5 mm | Ø155 mm |
| 24W | Ø188 × H45 mm | Ø160 mm |
| 30W | Ø240 × H56 mm | Ø210 mm |
| 36W | Ø240 × H56 mm | Ø210 mm |
Published row 2
- Power
- 12W
- Dimensions
- Ø118 × H57 mm
- Cut-out
- Ø90 mm
Published row 3
- Power
- 14W
- Dimensions
- Ø138 × H60 mm
- Cut-out
- Ø115 mm
Published row 4
- Power
- 20W
- Dimensions
- Ø178 × H70 mm
- Cut-out
- Ø155 mm
Published row 5
- Power
- 24W
- Dimensions
- Ø188 × H78 mm
- Cut-out
- Ø160 mm
Published row 6
- Power
- 30W
- Dimensions
- Ø240 × H93 mm
- Cut-out
- Ø210 mm
Published row 7
- Power
- 36W
- Dimensions
- Ø240 × H93 mm
- Cut-out
- Ø210 mm
Published row 8
- Power
- 5W
- Dimensions
- Ø98 × H36 mm
- Cut-out
- Ø70 mm
Published row 9
- Power
- 7W
- Dimensions
- Ø108 × H36 mm
- Cut-out
- Ø80 mm
Published row 10
- Power
- 12W
- Dimensions
- Ø118 × H37 mm
- Cut-out
- Ø90 mm
Published row 11
- Power
- 14W
- Dimensions
- Ø138 × H38.5 mm
- Cut-out
- Ø115 mm
Published row 12
- Power
- 20W
- Dimensions
- Ø178 × H43.5 mm
- Cut-out
- Ø155 mm
Published row 13
- Power
- 24W
- Dimensions
- Ø188 × H45 mm
- Cut-out
- Ø160 mm
Published row 14
- Power
- 30W
- Dimensions
- Ø240 × H56 mm
- Cut-out
- Ø210 mm
Published row 15
- Power
- 36W
- Dimensions
- Ø240 × H56 mm
- Cut-out
- Ø210 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90/97
- Beam
- 60° / 90°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD717
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
