Published row 1
- Power
- 10W
- Dimensions
- Ø100 × H50 mm
- Cut-out
- Ø75 mm
Product model / MET-TD712

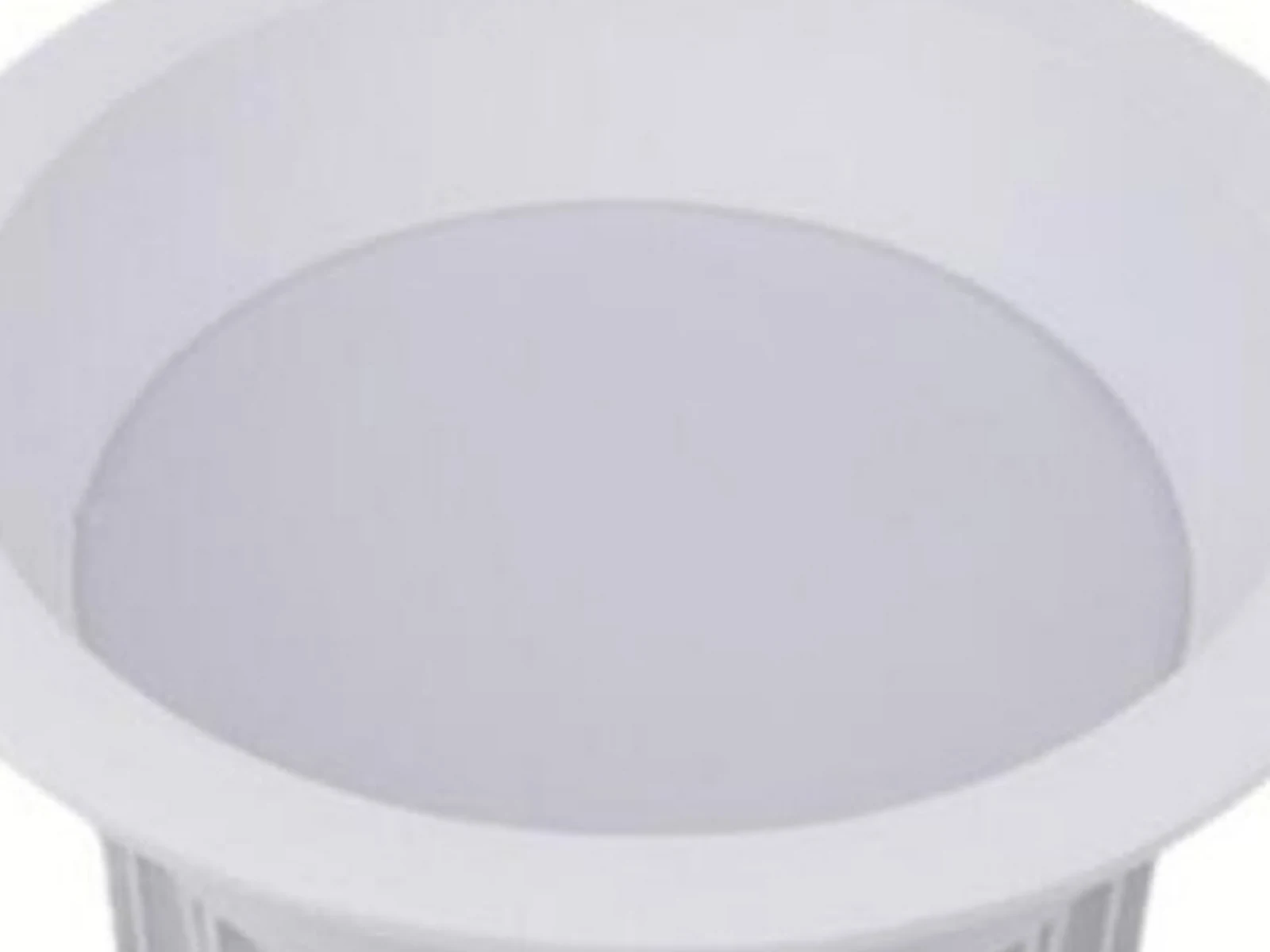

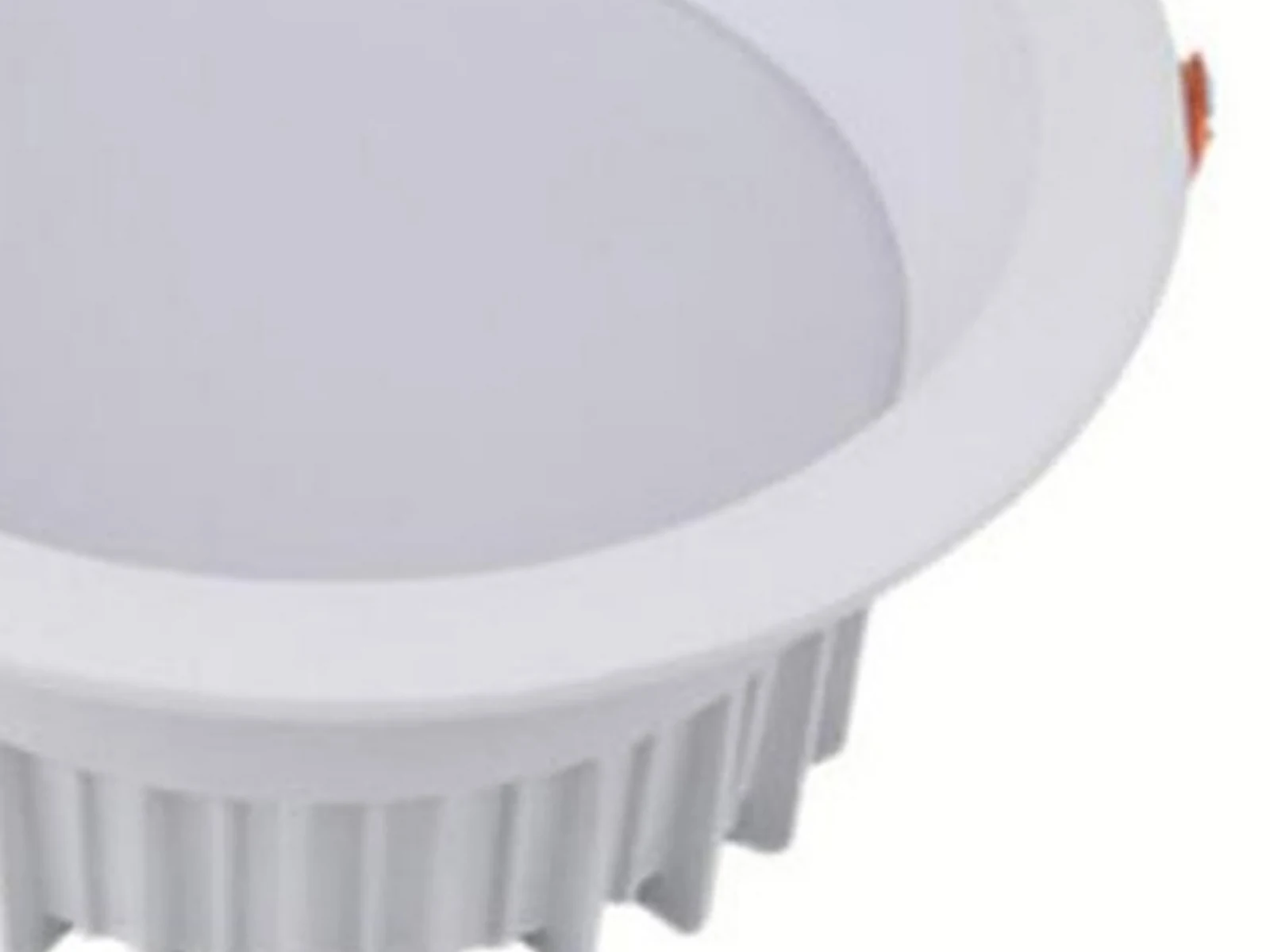

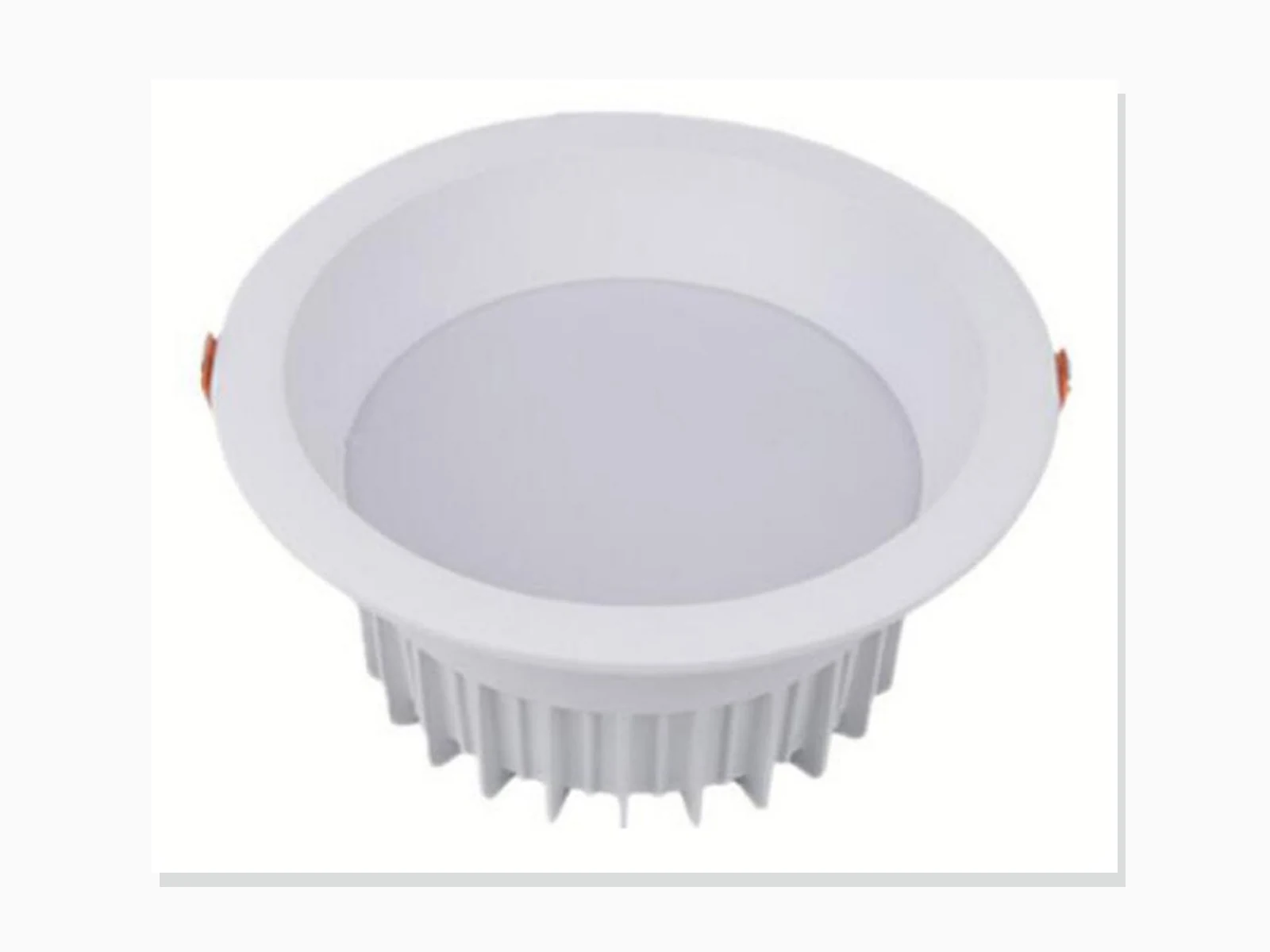

Deep Anti-Glare Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application
Detail 01
Detail 02

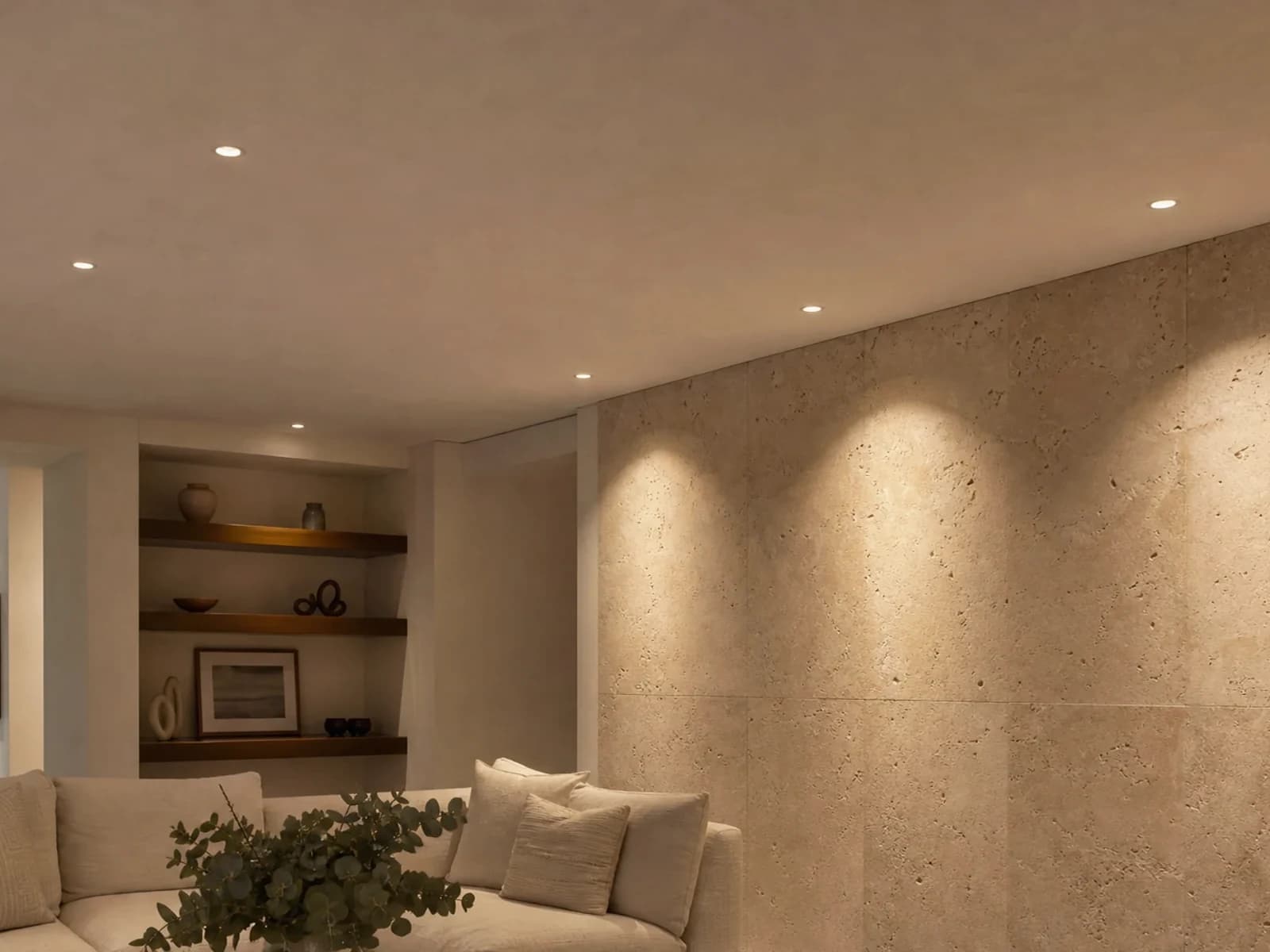

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 10W | Ø100 × H50 mm | Ø75 mm |
| 12W | Ø115 × H55 mm | Ø95 mm |
| 14W | Ø145 × H70 mm | Ø125 mm |
| 20W | Ø170 × H75 mm | Ø145 mm |
| 24W | Ø190 × H95 mm | Ø170 mm |
| 30W | Ø230 × H100 mm | Ø200 mm |
Published row 2
- Power
- 12W
- Dimensions
- Ø115 × H55 mm
- Cut-out
- Ø95 mm
Published row 3
- Power
- 14W
- Dimensions
- Ø145 × H70 mm
- Cut-out
- Ø125 mm
Published row 4
- Power
- 20W
- Dimensions
- Ø170 × H75 mm
- Cut-out
- Ø145 mm
Published row 5
- Power
- 24W
- Dimensions
- Ø190 × H95 mm
- Cut-out
- Ø170 mm
Published row 6
- Power
- 30W
- Dimensions
- Ø230 × H100 mm
- Cut-out
- Ø200 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 90°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD712
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
