Published row 1
- Power
- 10W
- Dimensions
- Ø90 × 70 mm
- Cut-out
- Ø75 mm
Product model / MET-TD707

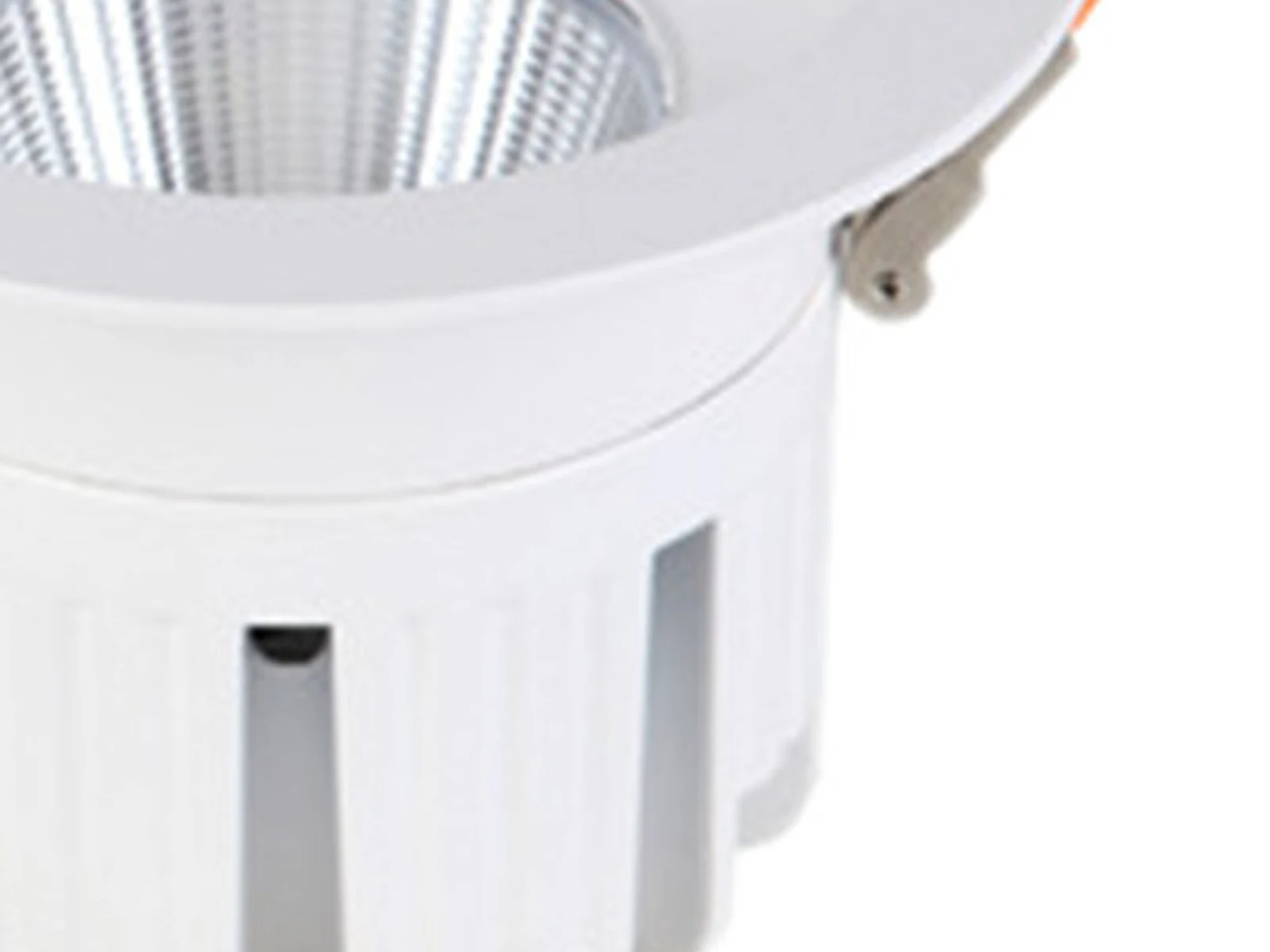

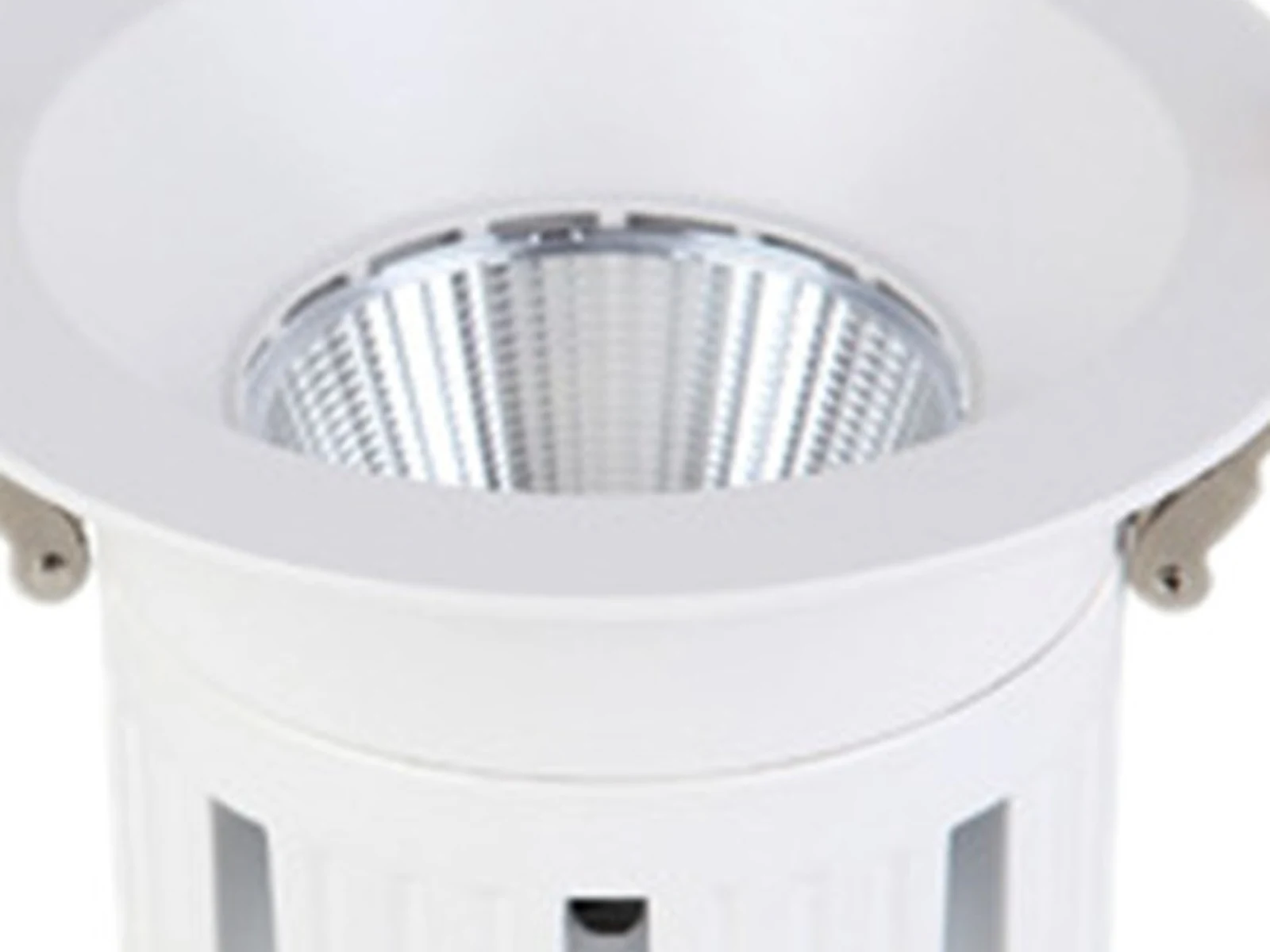

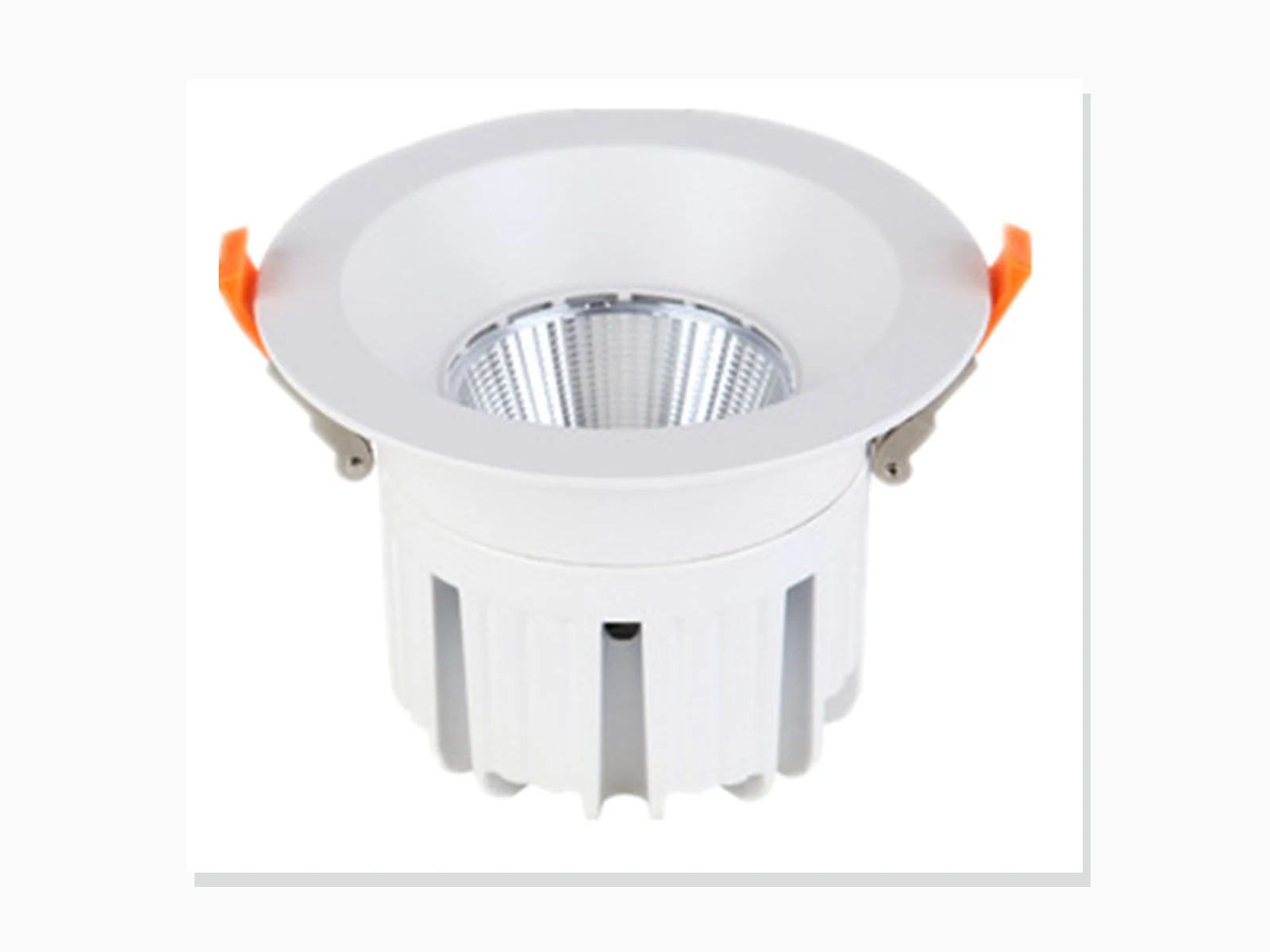

Reflector COB Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application
Detail 01
Detail 02

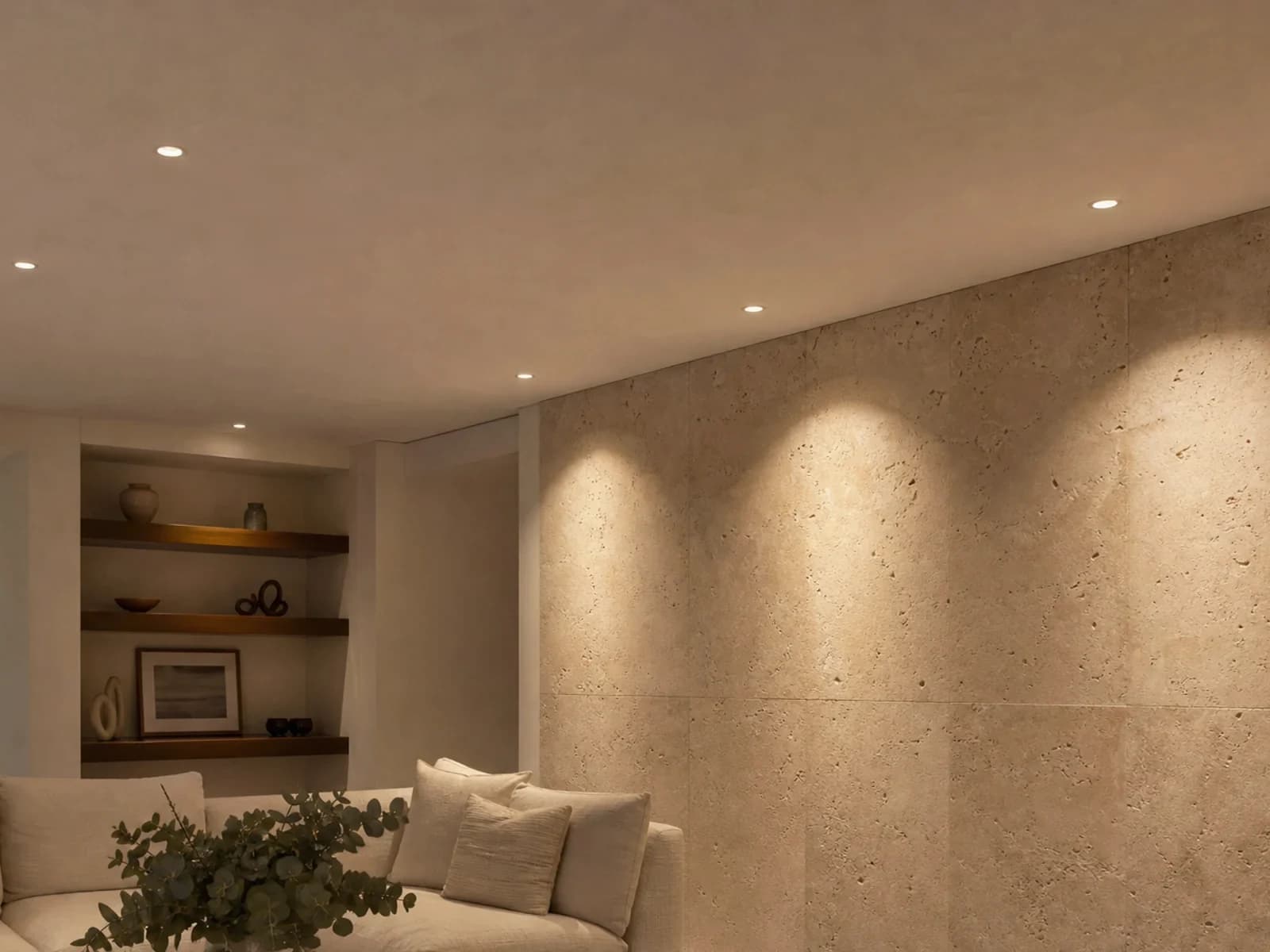

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 10W | Ø90 × 70 mm | Ø75 mm |
| 20W | Ø110 × 90 mm | Ø95 mm |
| 30W | Ø138 × 100 mm | Ø115 mm |
| 40W | Ø170 × 115 mm | Ø145 mm |
| 50W | Ø190 × 160 mm | Ø165 mm |
| 60W | Ø230 × 135 mm | Ø200 mm |
| 80W | Ø230 × 145 mm | Ø200 mm |
| 100W | Ø250 × 150 mm | Ø220 mm |
| 60W | Ø280 × 140 mm | Ø230-250 mm |
| 60-100W | Ø350 × 180 mm | Ø290-300 mm |
Published row 2
- Power
- 20W
- Dimensions
- Ø110 × 90 mm
- Cut-out
- Ø95 mm
Published row 3
- Power
- 30W
- Dimensions
- Ø138 × 100 mm
- Cut-out
- Ø115 mm
Published row 4
- Power
- 40W
- Dimensions
- Ø170 × 115 mm
- Cut-out
- Ø145 mm
Published row 5
- Power
- 50W
- Dimensions
- Ø190 × 160 mm
- Cut-out
- Ø165 mm
Published row 6
- Power
- 60W
- Dimensions
- Ø230 × 135 mm
- Cut-out
- Ø200 mm
Published row 7
- Power
- 80W
- Dimensions
- Ø230 × 145 mm
- Cut-out
- Ø200 mm
Published row 8
- Power
- 100W
- Dimensions
- Ø250 × 150 mm
- Cut-out
- Ø220 mm
Published row 9
- Power
- 60W
- Dimensions
- Ø280 × 140 mm
- Cut-out
- Ø230-250 mm
Published row 10
- Power
- 60-100W
- Dimensions
- Ø350 × 180 mm
- Cut-out
- Ø290-300 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 24° / 50°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD707
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
