Published row 1
- Power
- 12W
- Dimensions
- Ø85 × 54 mm
- Cut-out
- Ø75 mm

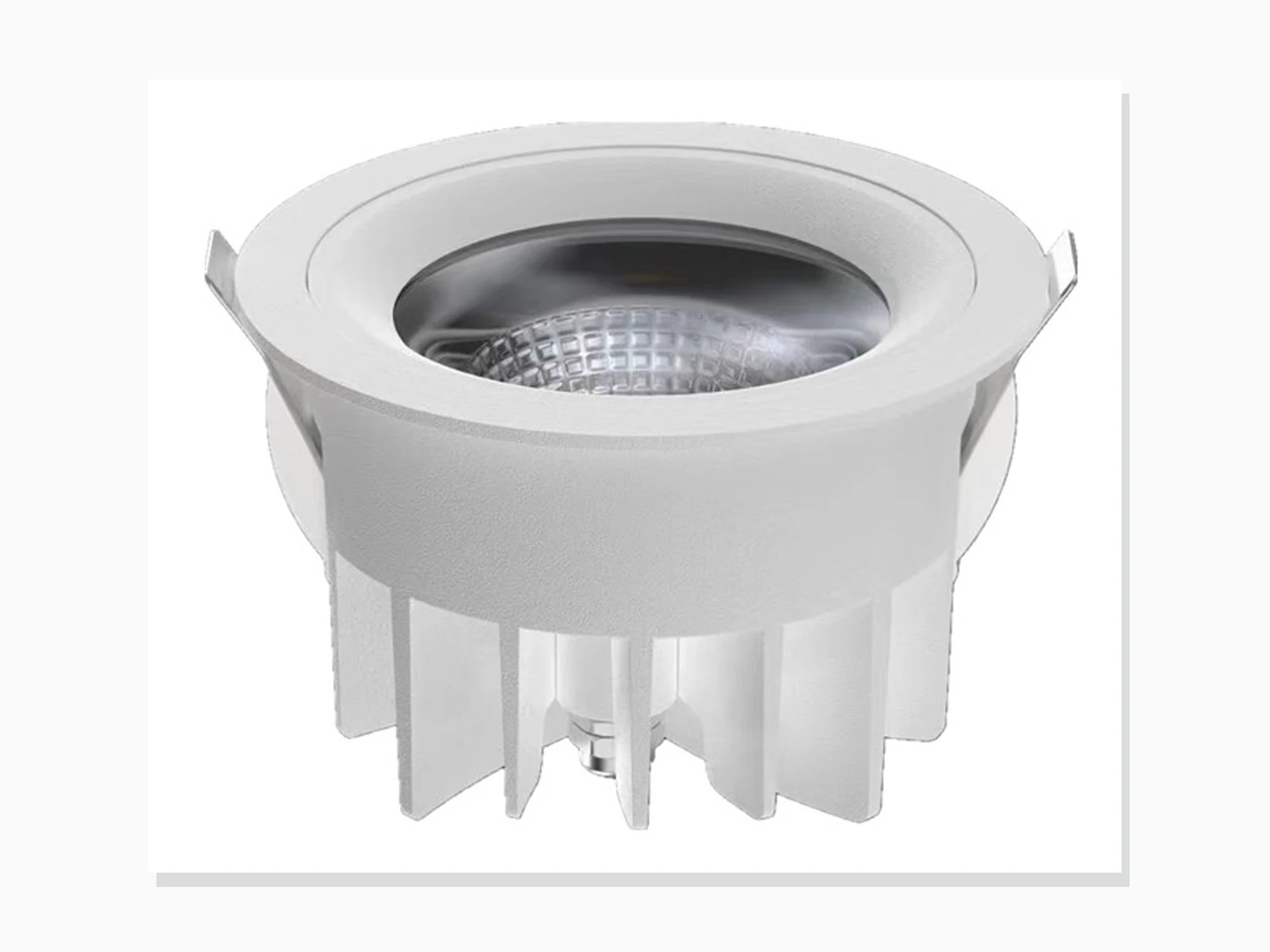

Product model / MET-TD704
Compact COB Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application
Detail 01
Detail 02

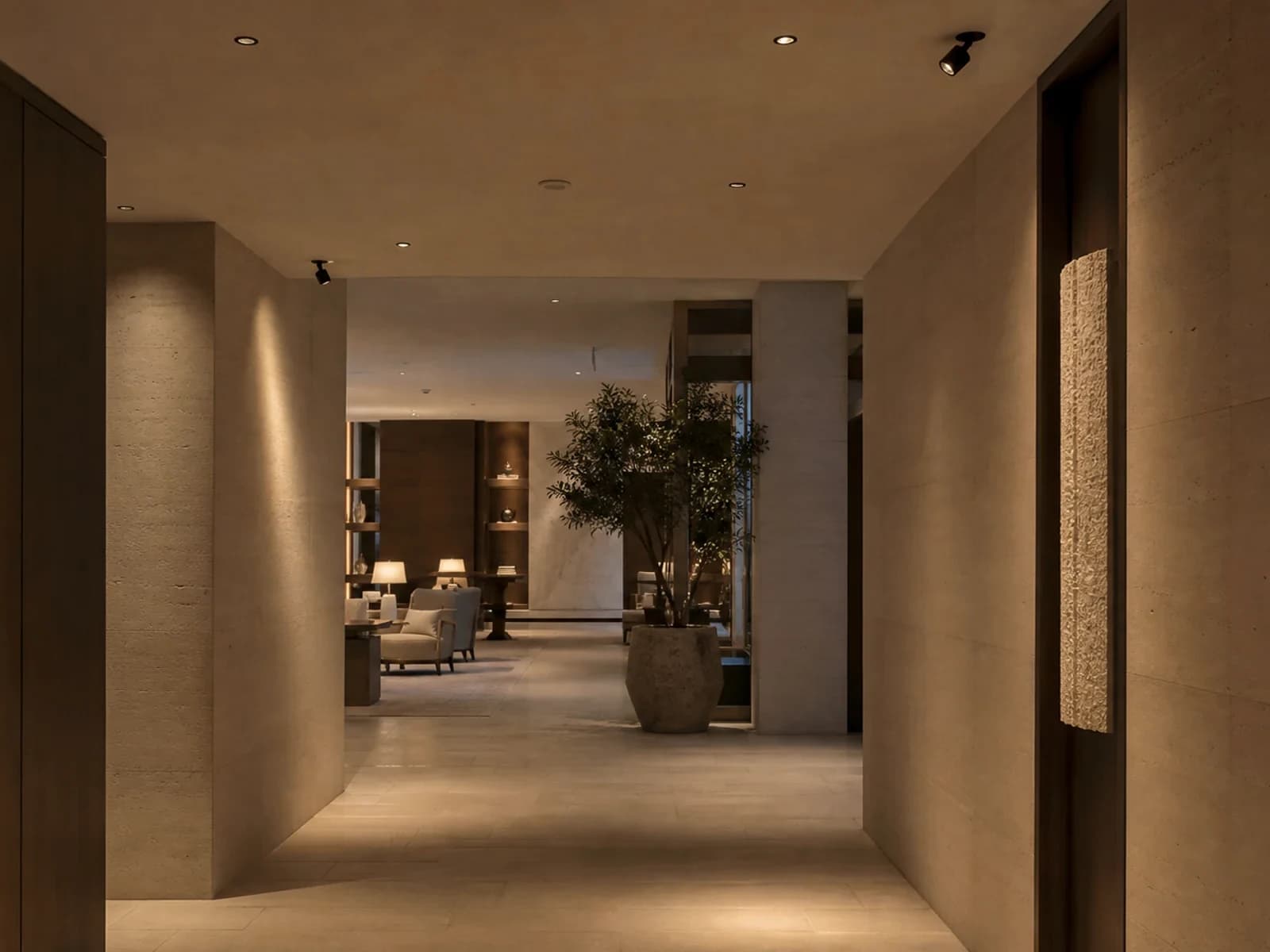

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 12W | Ø85 × 54 mm | Ø75 mm |
| 18W | Ø105 × 65 mm | Ø95 mm |
| 28W | Ø131 × 75 mm | Ø115 mm |
| 36W | Ø150 × 80 mm | Ø135 mm |
| 48W | Ø191 × 95 mm | Ø175 mm |
| 60W | Ø215 × 105 mm | Ø200 mm |
Published row 2
- Power
- 18W
- Dimensions
- Ø105 × 65 mm
- Cut-out
- Ø95 mm
Published row 3
- Power
- 28W
- Dimensions
- Ø131 × 75 mm
- Cut-out
- Ø115 mm
Published row 4
- Power
- 36W
- Dimensions
- Ø150 × 80 mm
- Cut-out
- Ø135 mm
Published row 5
- Power
- 48W
- Dimensions
- Ø191 × 95 mm
- Cut-out
- Ø175 mm
Published row 6
- Power
- 60W
- Dimensions
- Ø215 × 105 mm
- Cut-out
- Ø200 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 45°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD704
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
