Published row 1
- Power
- 10W
- Dimensions
- 84 × H55 mm
- Cut-out
- Ø70 mm
Product model / MET-TD702

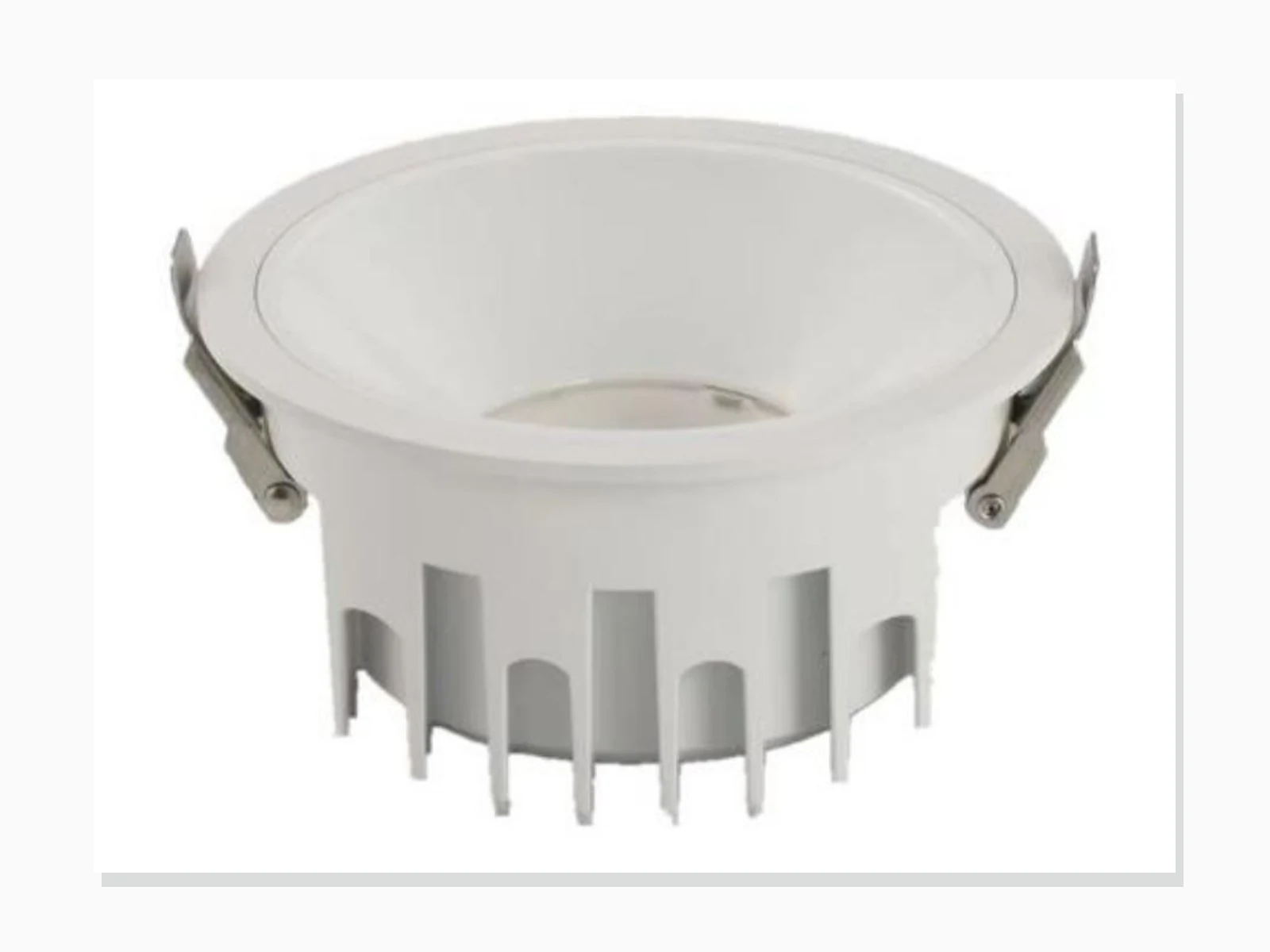

Wide-Trim COB Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application
Detail 01
Detail 02

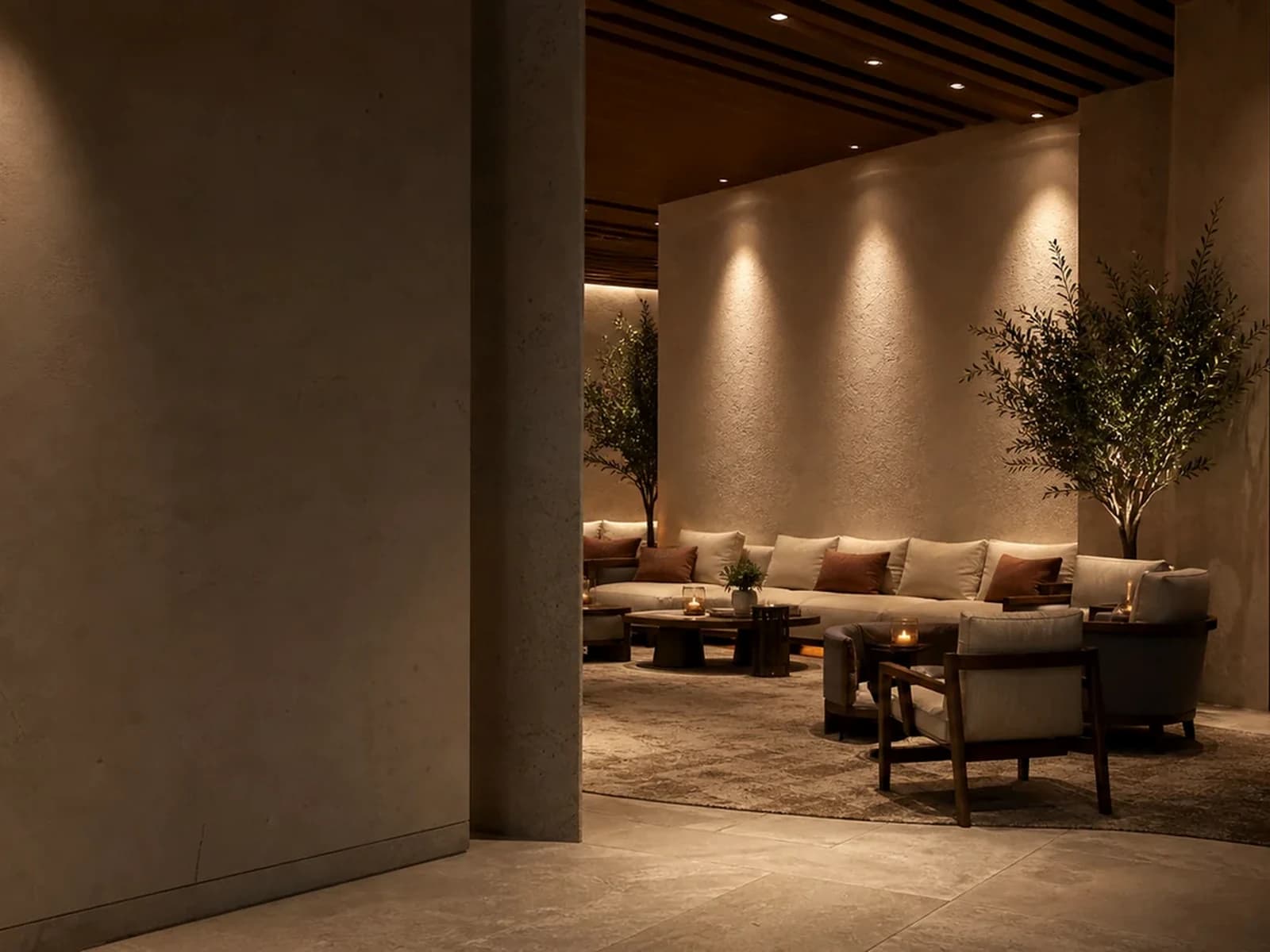

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 10W | 84 × H55 mm | Ø70 mm |
| 14W | Ø99 × H60 mm | Ø90 mm |
| 20W | Ø138 × H74 mm | Ø120 mm |
| 24W | Ø138 × H74 mm | Ø120 mm |
| 30W | Ø152 × H86 mm | Ø140 mm |
Published row 2
- Power
- 14W
- Dimensions
- Ø99 × H60 mm
- Cut-out
- Ø90 mm
Published row 3
- Power
- 20W
- Dimensions
- Ø138 × H74 mm
- Cut-out
- Ø120 mm
Published row 4
- Power
- 24W
- Dimensions
- Ø138 × H74 mm
- Cut-out
- Ø120 mm
Published row 5
- Power
- 30W
- Dimensions
- Ø152 × H86 mm
- Cut-out
- Ø140 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 15° / 24° / 36° / 55°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD702
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
