Published row 1
- Power
- 10W
- Dimensions
- Ø90 × H70 mm
- Cut-out
- Ø75 mm
Product model / MET-TD403

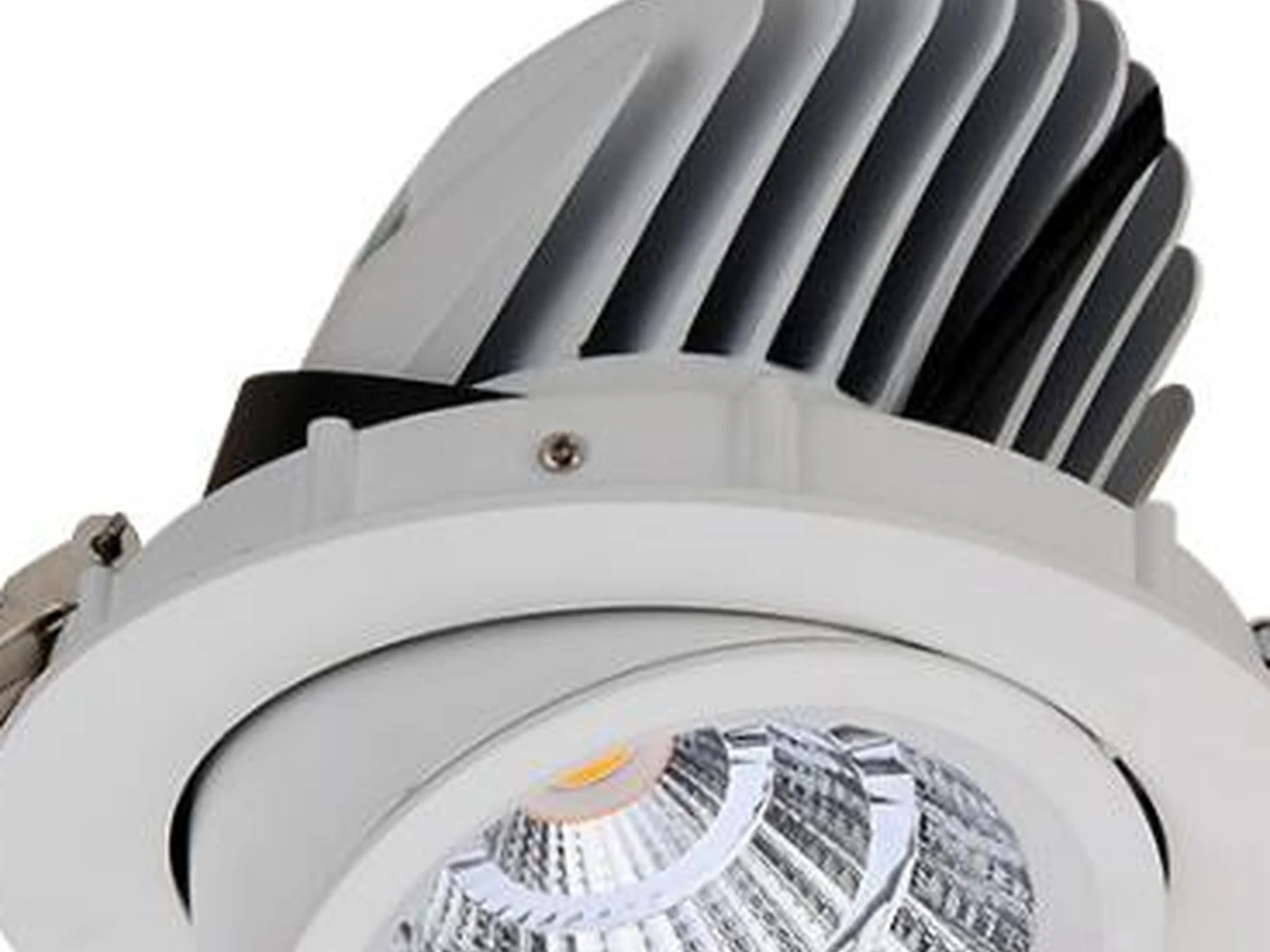

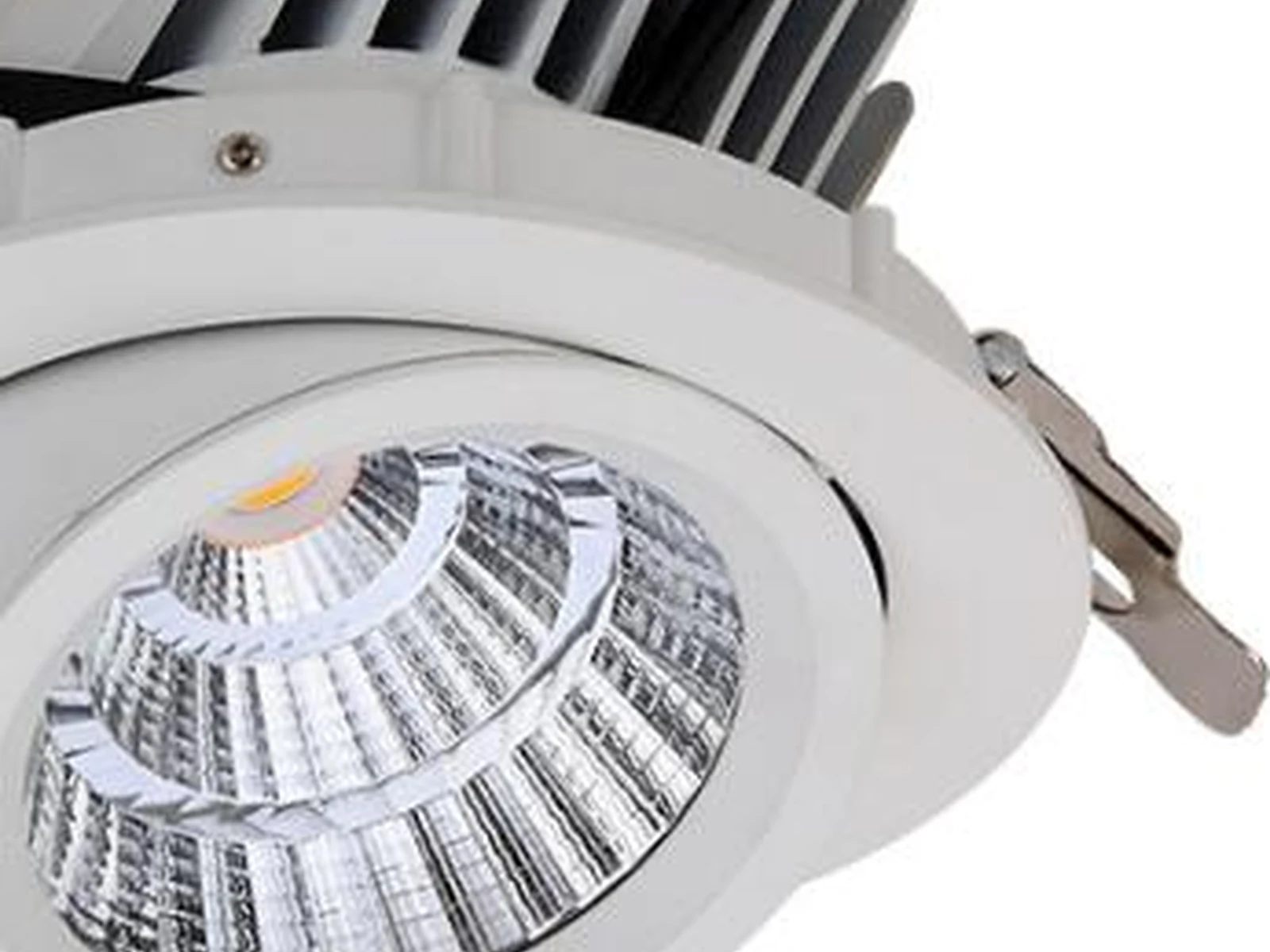

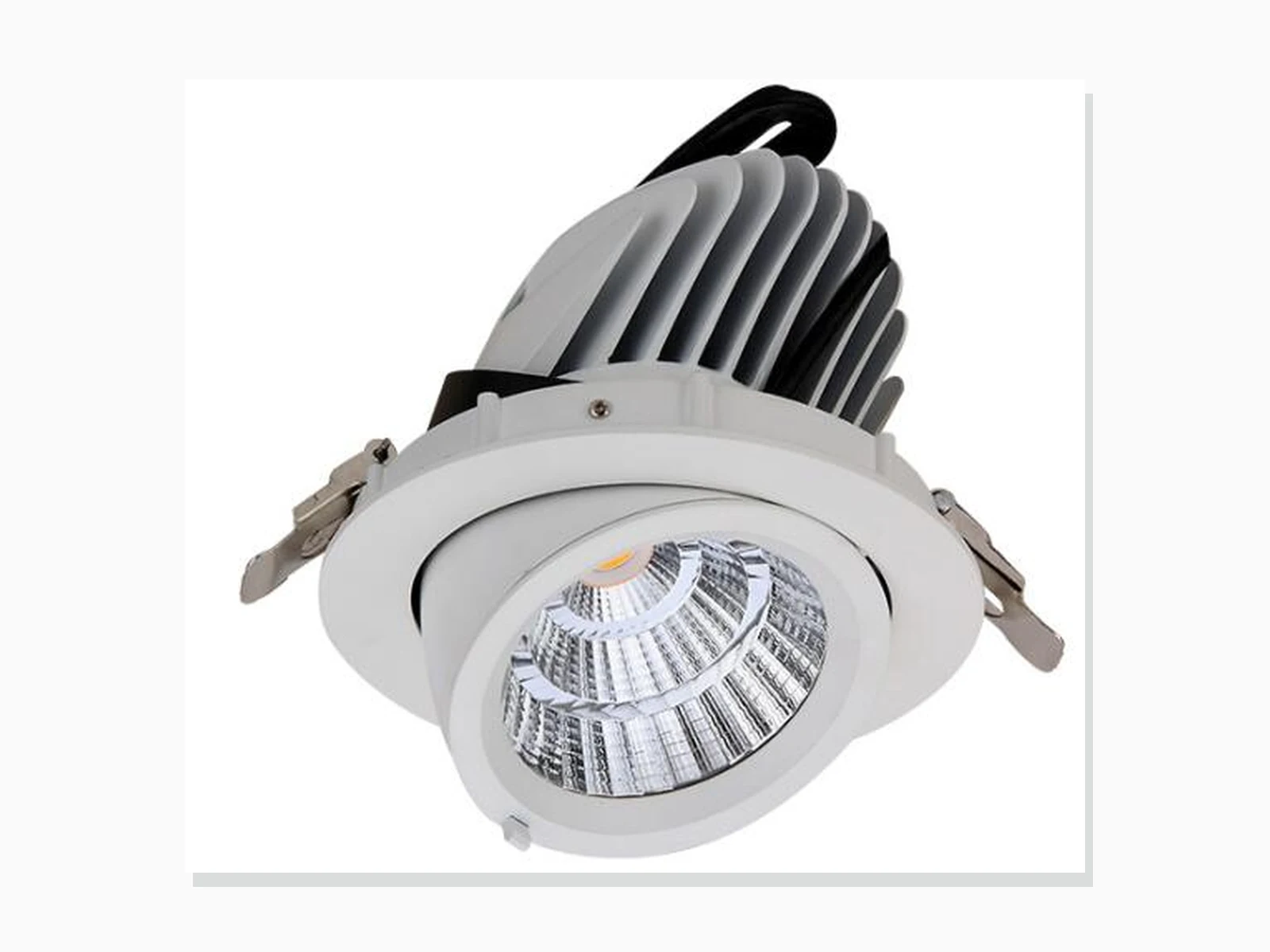

Round Gimbal COB Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Product
Application
Detail 01
Detail 02

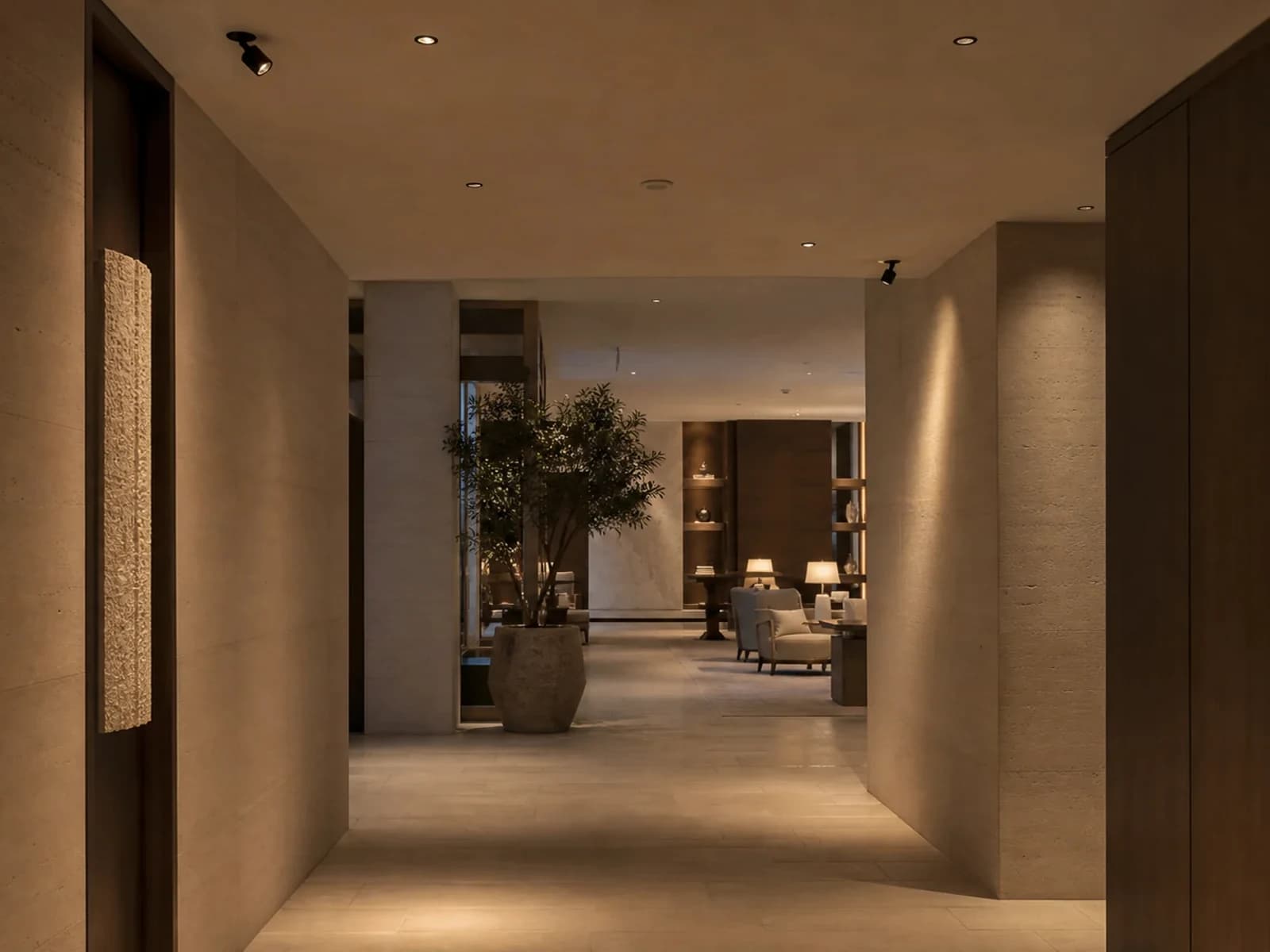

Application reference / not project evidence
An accent-lighting direction with controlled aim.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 10W | Ø90 × H70 mm | Ø75 mm |
| 14W | Ø114 × H95 mm | Ø95 mm |
| 24W | Ø138 × H120 mm | Ø128 mm |
| 34W | Ø165 × H145 mm | Ø150 mm |
| 50W | Ø190 × H165 mm | Ø175 mm |
| 14W | Square 115 × 115 × H95 mm | 100 × 100 mm |
| 24W | Square 138 × 138 × H125 mm | 125 × 125 mm |
| 34W | Square 163 × 163 × H145 mm | 150 × 150 mm |
| 2*14W | Twin 230 × 115 × H95 mm | 100 × 100 mm |
| 2*24W | Twin 278 × 138 × H125 mm | 125 × 125 mm |
| 2*34W | Twin 330 × 163 × H145 mm | 150 × 150 mm |
| 3*14W | Twin 350 × 115 × H95 mm | 335 × 100 mm |
| 3*24W | Twin 417 × 138 × H125 mm | 400 × 125 mm |
| 3*34W | Twin 495 × 163 × H145 mm | 495 × 150 mm |
Published row 2
- Power
- 14W
- Dimensions
- Ø114 × H95 mm
- Cut-out
- Ø95 mm
Published row 3
- Power
- 24W
- Dimensions
- Ø138 × H120 mm
- Cut-out
- Ø128 mm
Published row 4
- Power
- 34W
- Dimensions
- Ø165 × H145 mm
- Cut-out
- Ø150 mm
Published row 5
- Power
- 50W
- Dimensions
- Ø190 × H165 mm
- Cut-out
- Ø175 mm
Published row 6
- Power
- 14W
- Dimensions
- Square 115 × 115 × H95 mm
- Cut-out
- 100 × 100 mm
Published row 7
- Power
- 24W
- Dimensions
- Square 138 × 138 × H125 mm
- Cut-out
- 125 × 125 mm
Published row 8
- Power
- 34W
- Dimensions
- Square 163 × 163 × H145 mm
- Cut-out
- 150 × 150 mm
Published row 9
- Power
- 2*14W
- Dimensions
- Twin 230 × 115 × H95 mm
- Cut-out
- 100 × 100 mm
Published row 10
- Power
- 2*24W
- Dimensions
- Twin 278 × 138 × H125 mm
- Cut-out
- 125 × 125 mm
Published row 11
- Power
- 2*34W
- Dimensions
- Twin 330 × 163 × H145 mm
- Cut-out
- 150 × 150 mm
Published row 12
- Power
- 3*14W
- Dimensions
- Twin 350 × 115 × H95 mm
- Cut-out
- 335 × 100 mm
Published row 13
- Power
- 3*24W
- Dimensions
- Twin 417 × 138 × H125 mm
- Cut-out
- 400 × 125 mm
Published row 14
- Power
- 3*34W
- Dimensions
- Twin 495 × 163 × H145 mm
- Cut-out
- 495 × 150 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 15° / 24° / 38° / 60°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD403
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
