Published row 1
- Power
- 12W
- Dimensions
- Round Ø90 × H95 mm
- Cut-out
- Ø75 mm
Product model / MET-TD2508

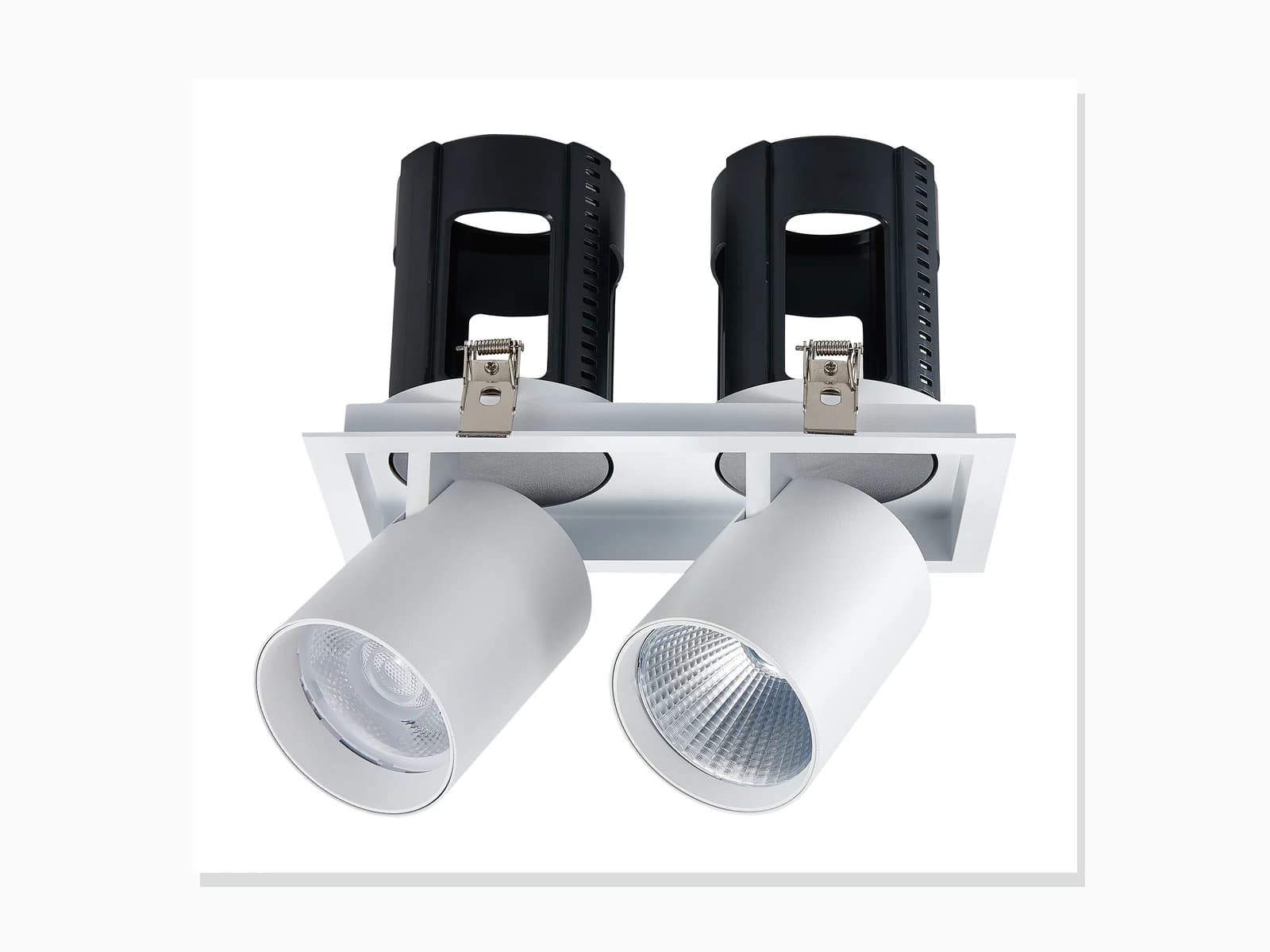

Twin Pull-Out COB Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Product
Application
Detail 01
Detail 02

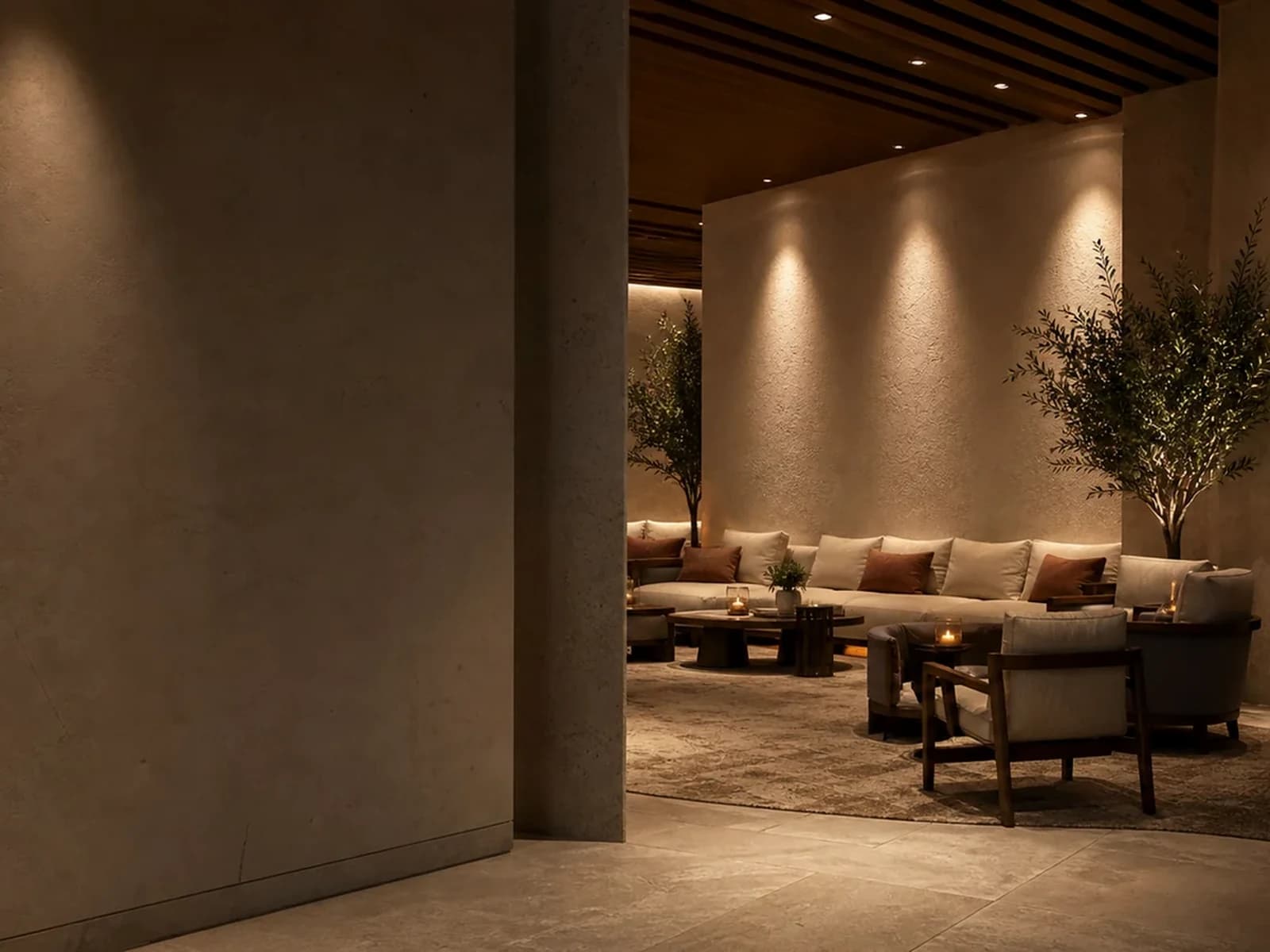

Application reference / not project evidence
An accent-lighting direction with controlled aim.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 12W | Round Ø90 × H95 mm | Ø75 mm |
| 24W | Round Ø110 × H120 mm | Ø95 mm |
| 34W | Round Ø130 × H140 mm | Ø115 mm |
| 12W | Square 90 × 90 × H95 mm | 75 × 75 mm |
| 24W | Square 110 × 110 × H120 mm | 95 × 95 mm |
| 34W | Square 130 × 130 × H140 mm | 115 × 115 mm |
| 2*12W | Twin 90 × 170 × H95 mm | 75 × 155 mm |
| 2*24W | Twin 110 × 210 × H120 mm | 95 × 190 mm |
| 2*34W | Twin 130 × 253 × H140 mm | 115 × 230 mm |
Published row 2
- Power
- 24W
- Dimensions
- Round Ø110 × H120 mm
- Cut-out
- Ø95 mm
Published row 3
- Power
- 34W
- Dimensions
- Round Ø130 × H140 mm
- Cut-out
- Ø115 mm
Published row 4
- Power
- 12W
- Dimensions
- Square 90 × 90 × H95 mm
- Cut-out
- 75 × 75 mm
Published row 5
- Power
- 24W
- Dimensions
- Square 110 × 110 × H120 mm
- Cut-out
- 95 × 95 mm
Published row 6
- Power
- 34W
- Dimensions
- Square 130 × 130 × H140 mm
- Cut-out
- 115 × 115 mm
Published row 7
- Power
- 2*12W
- Dimensions
- Twin 90 × 170 × H95 mm
- Cut-out
- 75 × 155 mm
Published row 8
- Power
- 2*24W
- Dimensions
- Twin 110 × 210 × H120 mm
- Cut-out
- 95 × 190 mm
Published row 9
- Power
- 2*34W
- Dimensions
- Twin 130 × 253 × H140 mm
- Cut-out
- 115 × 230 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥90–92
- Beam
- 15° / 24° / 38° / 60°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD2508
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
