Published row 1
- Power
- 20W
- Dimensions
- Narrow trim Ø85 × H110 mm
- Cut-out
- Ø75 mm
Product model / MET-TD2502

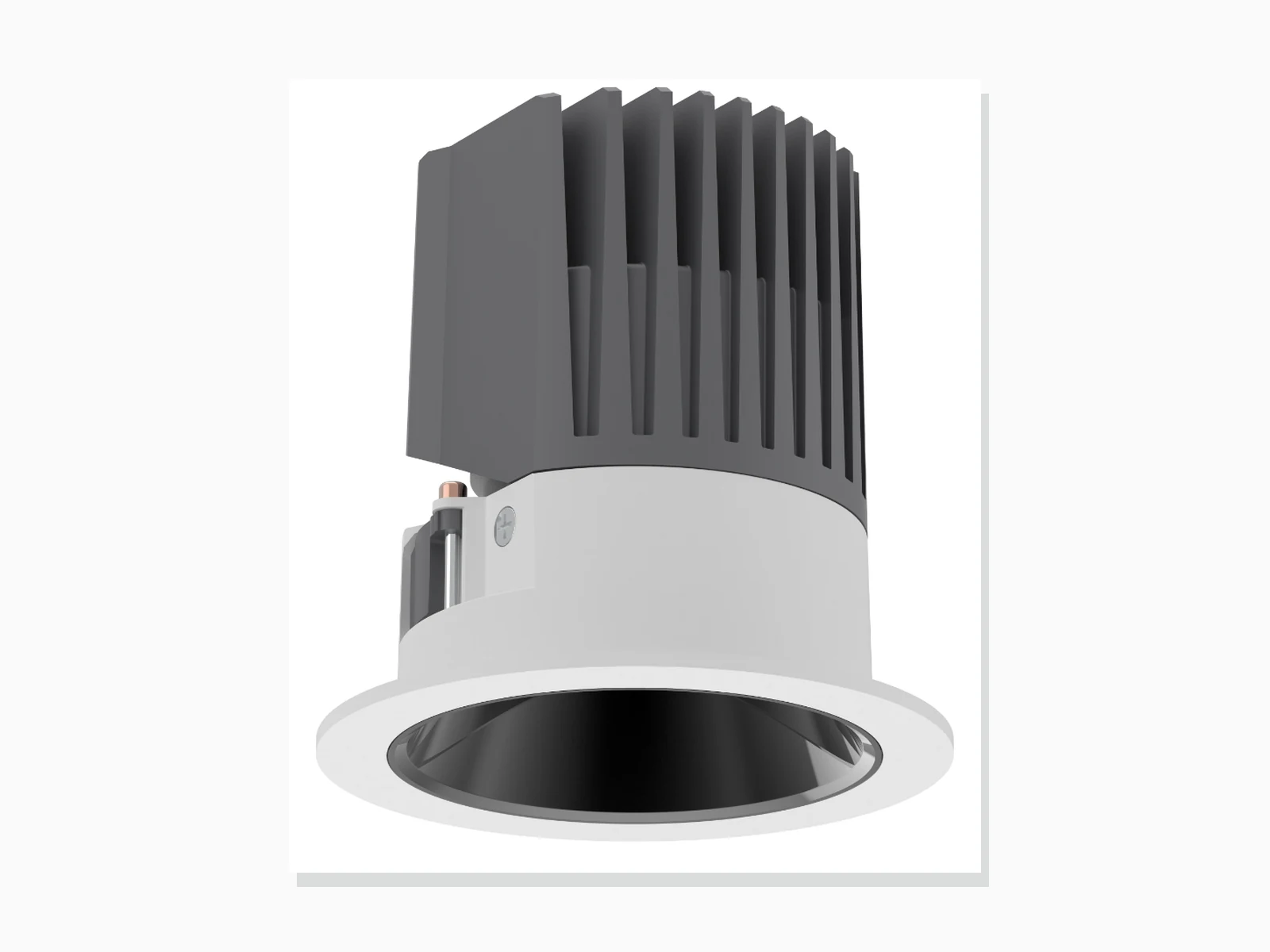

Deep-Baffle Wall-Wash COB Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Product
Application

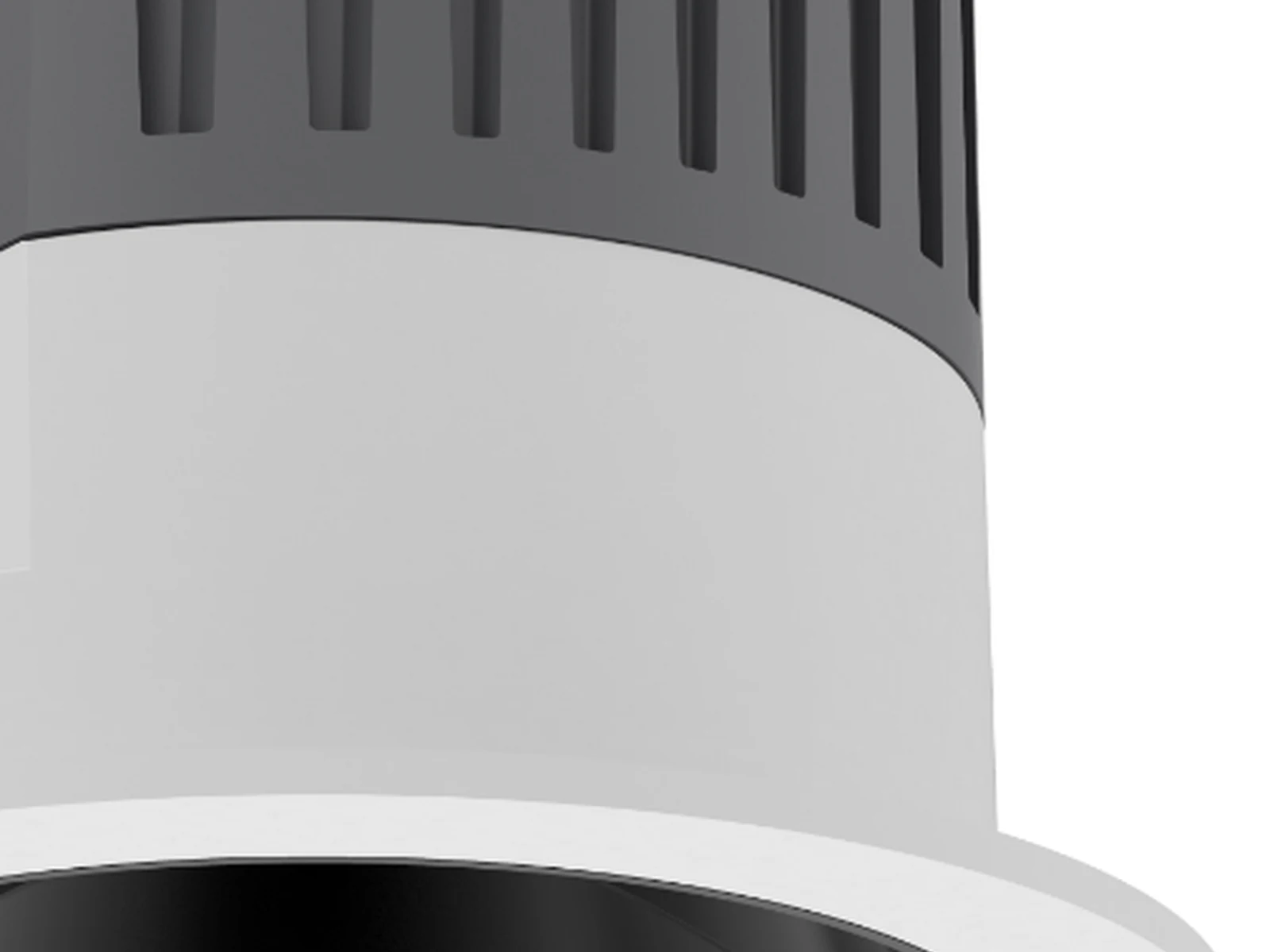

Detail 01

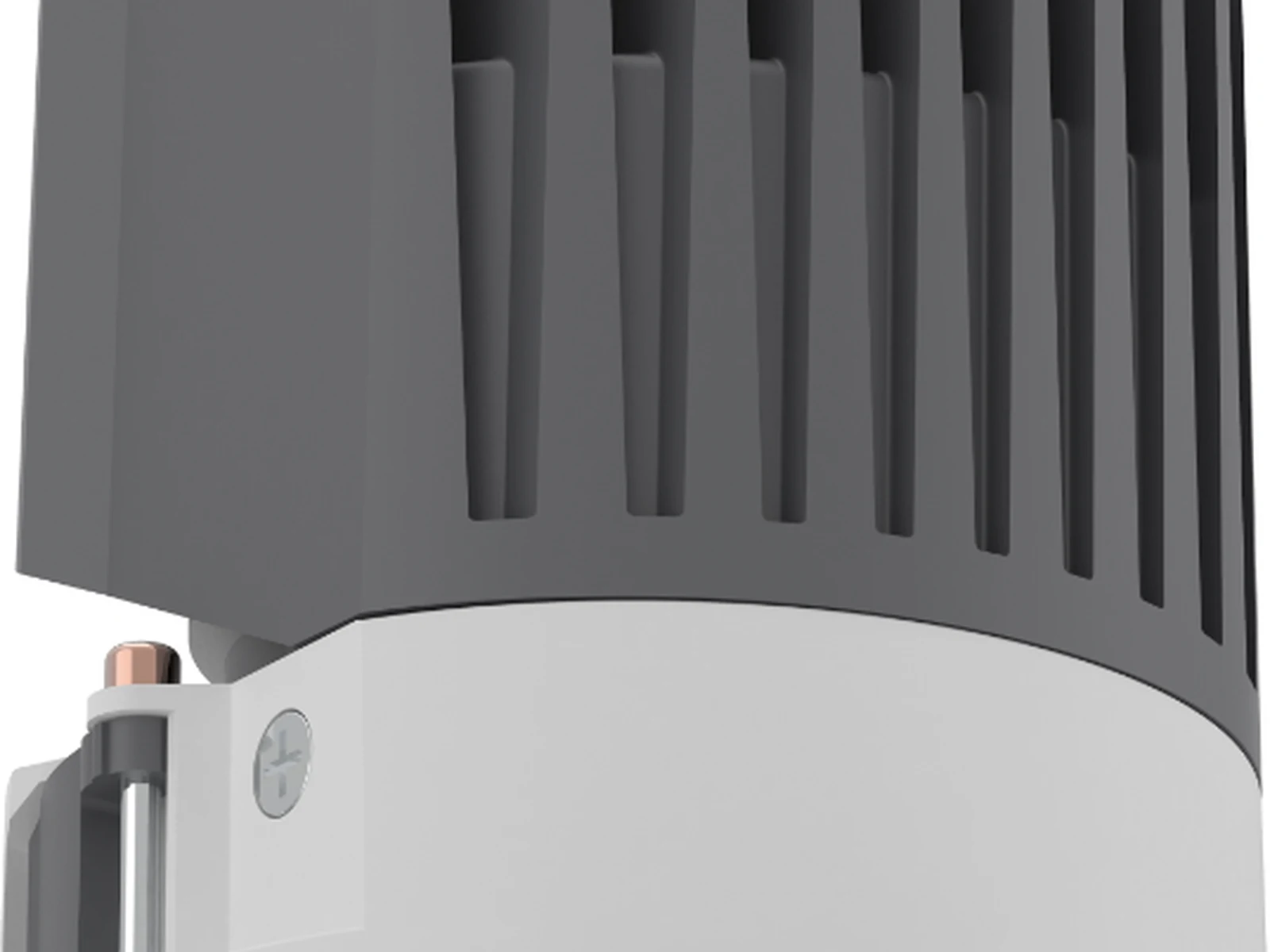

Detail 02

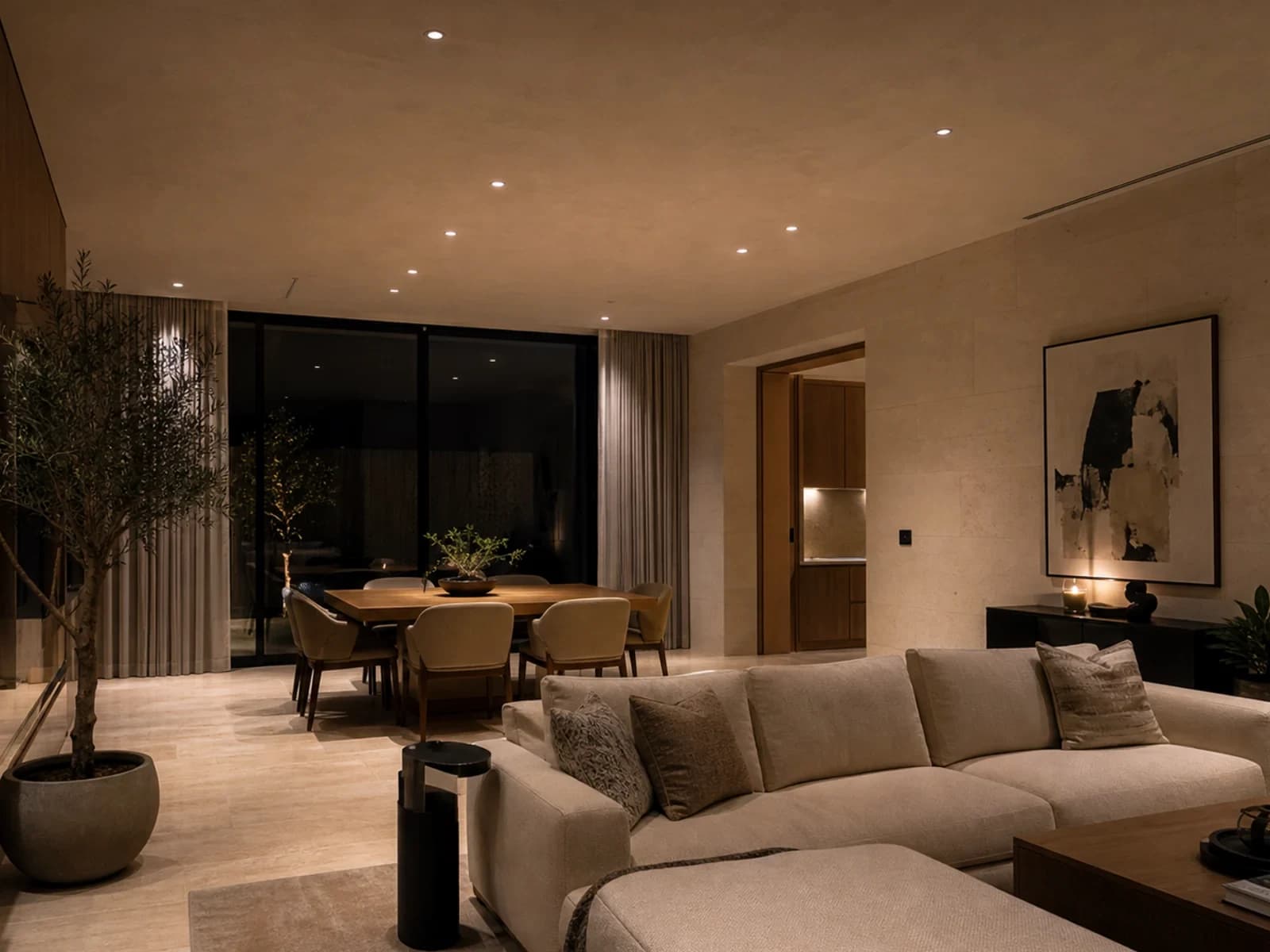

Application reference / not project evidence
An accent-lighting direction with controlled aim.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 20W | Narrow trim Ø85 × H110 mm | Ø75 mm |
| 30W | Narrow trim Ø105 × H125 mm | Ø95 mm |
| 40W | Narrow trim Ø135 × H160 mm | Ø125 mm |
| 60W | Narrow trim Ø175 × H190 mm | Ø165 mm |
| 20W | Wide trim Ø100 × H110 mm | Ø75-90 mm |
| 30W | Wide trim Ø125 × H125 mm | Ø95-110 mm |
| 40W | Wide trim Ø160 × H160 mm | Ø125-150 mm |
| 60W | Wide trim Ø210 × H190 mm | Ø165-190 mm |
Published row 2
- Power
- 30W
- Dimensions
- Narrow trim Ø105 × H125 mm
- Cut-out
- Ø95 mm
Published row 3
- Power
- 40W
- Dimensions
- Narrow trim Ø135 × H160 mm
- Cut-out
- Ø125 mm
Published row 4
- Power
- 60W
- Dimensions
- Narrow trim Ø175 × H190 mm
- Cut-out
- Ø165 mm
Published row 5
- Power
- 20W
- Dimensions
- Wide trim Ø100 × H110 mm
- Cut-out
- Ø75-90 mm
Published row 6
- Power
- 30W
- Dimensions
- Wide trim Ø125 × H125 mm
- Cut-out
- Ø95-110 mm
Published row 7
- Power
- 40W
- Dimensions
- Wide trim Ø160 × H160 mm
- Cut-out
- Ø125-150 mm
Published row 8
- Power
- 60W
- Dimensions
- Wide trim Ø210 × H190 mm
- Cut-out
- Ø165-190 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 15° / 24° / 36° / 50°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD2502
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
