Published row 1
- Power
- 42W
- Dimensions
- Ø140 × H155 mm
- Cut-out
- Ø125 mm
Product model / MET-TD2501

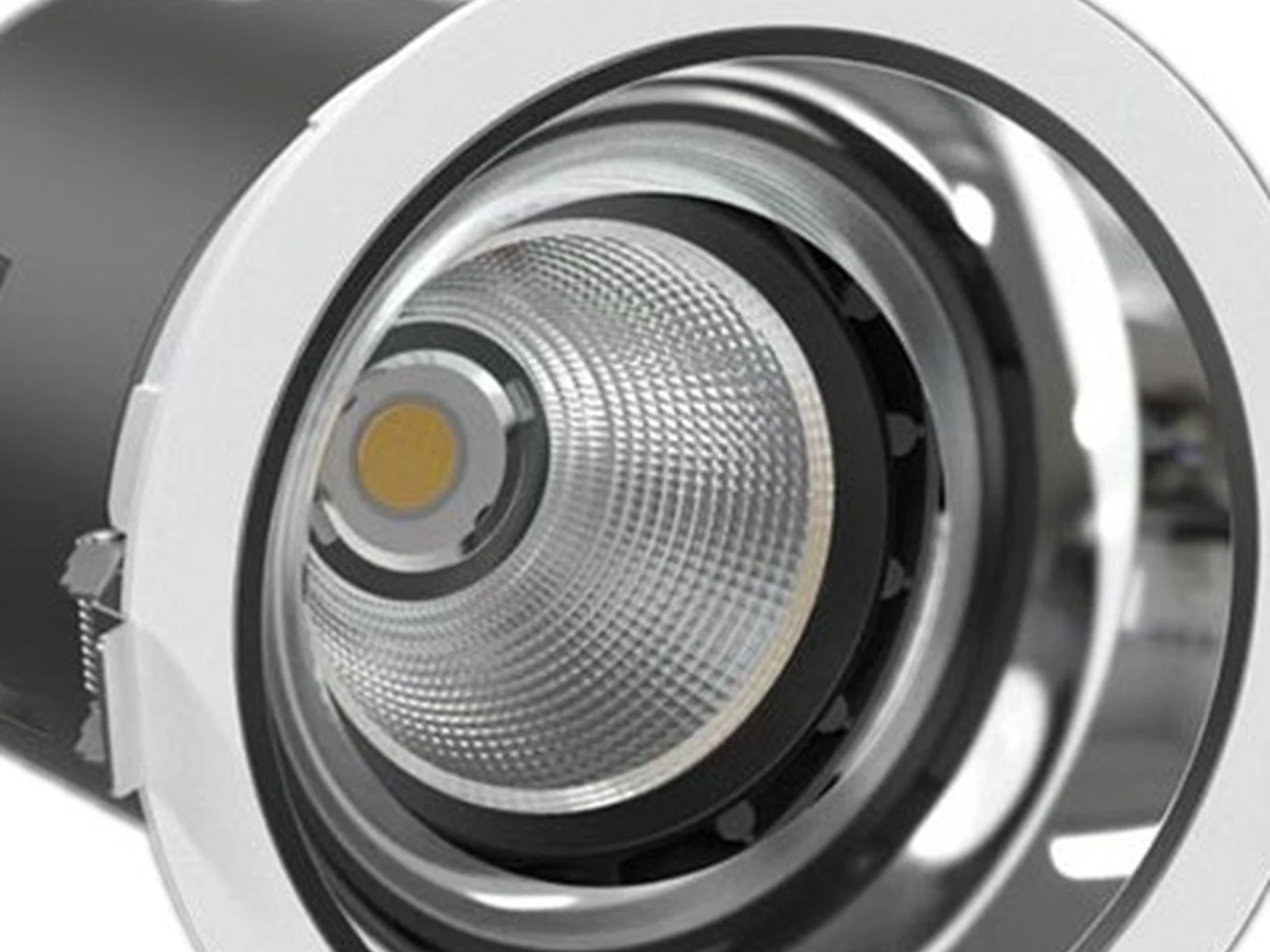

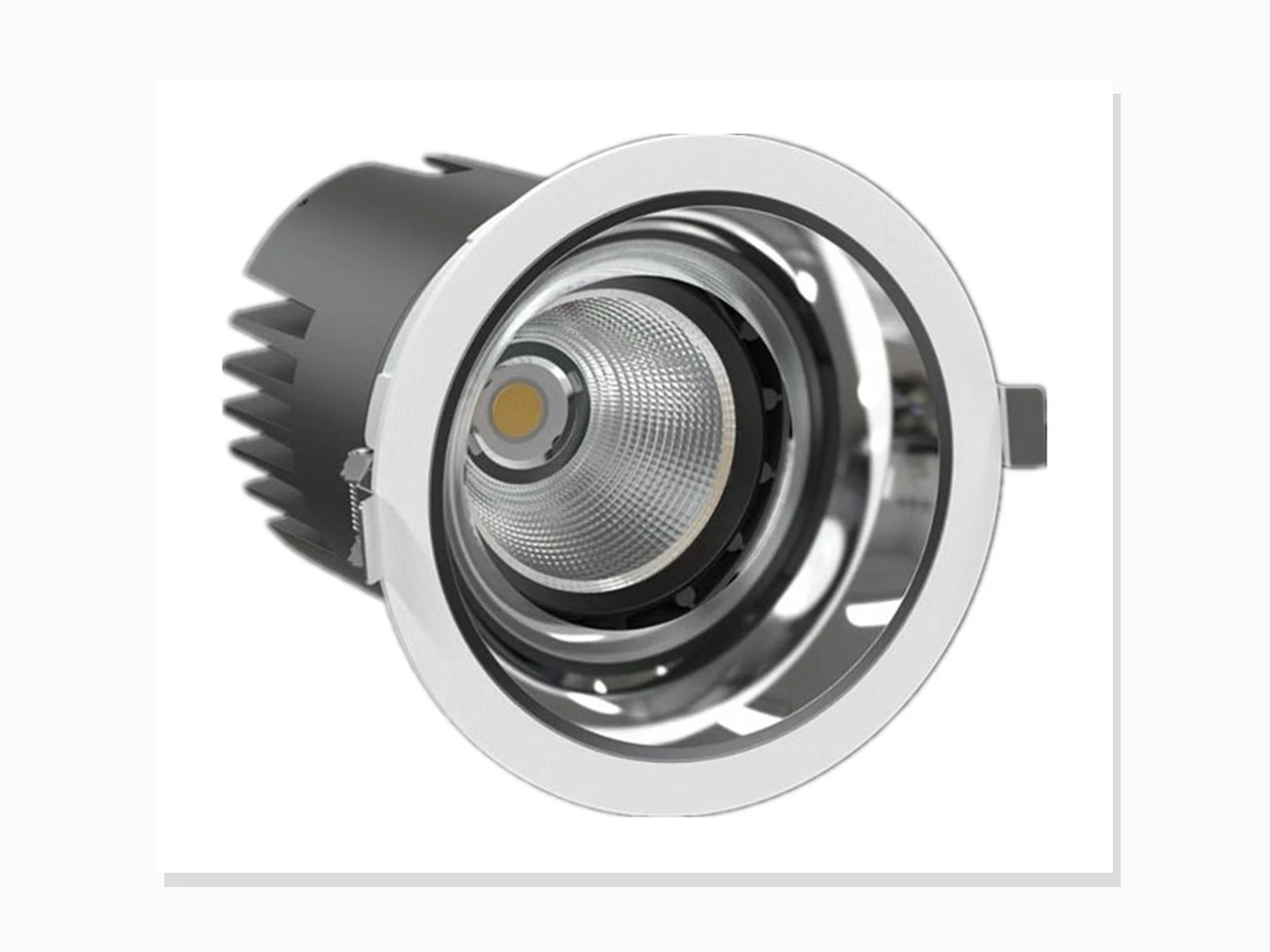

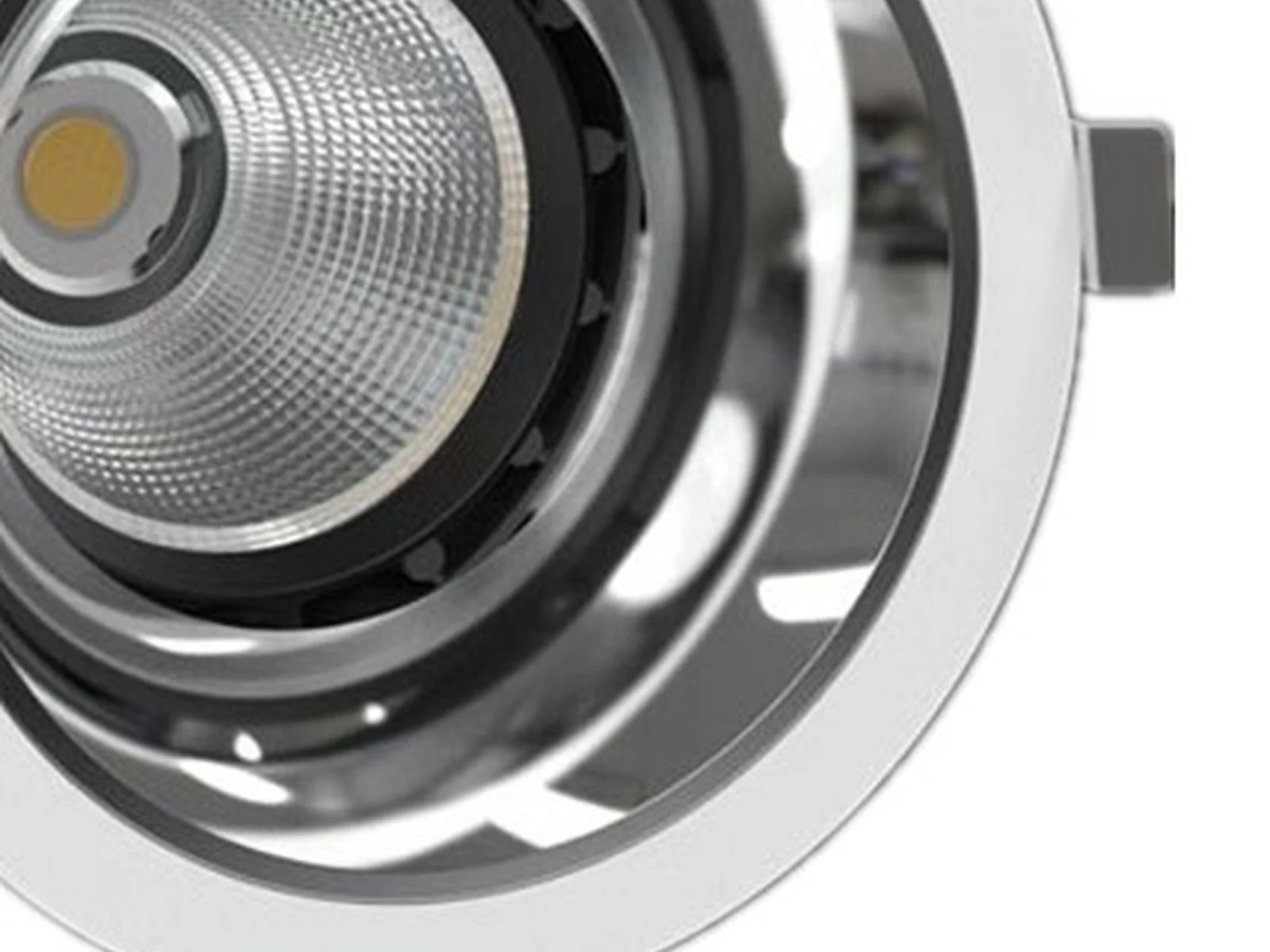

Adjustable Wall-Wash COB Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Product
Application
Detail 01
Detail 02

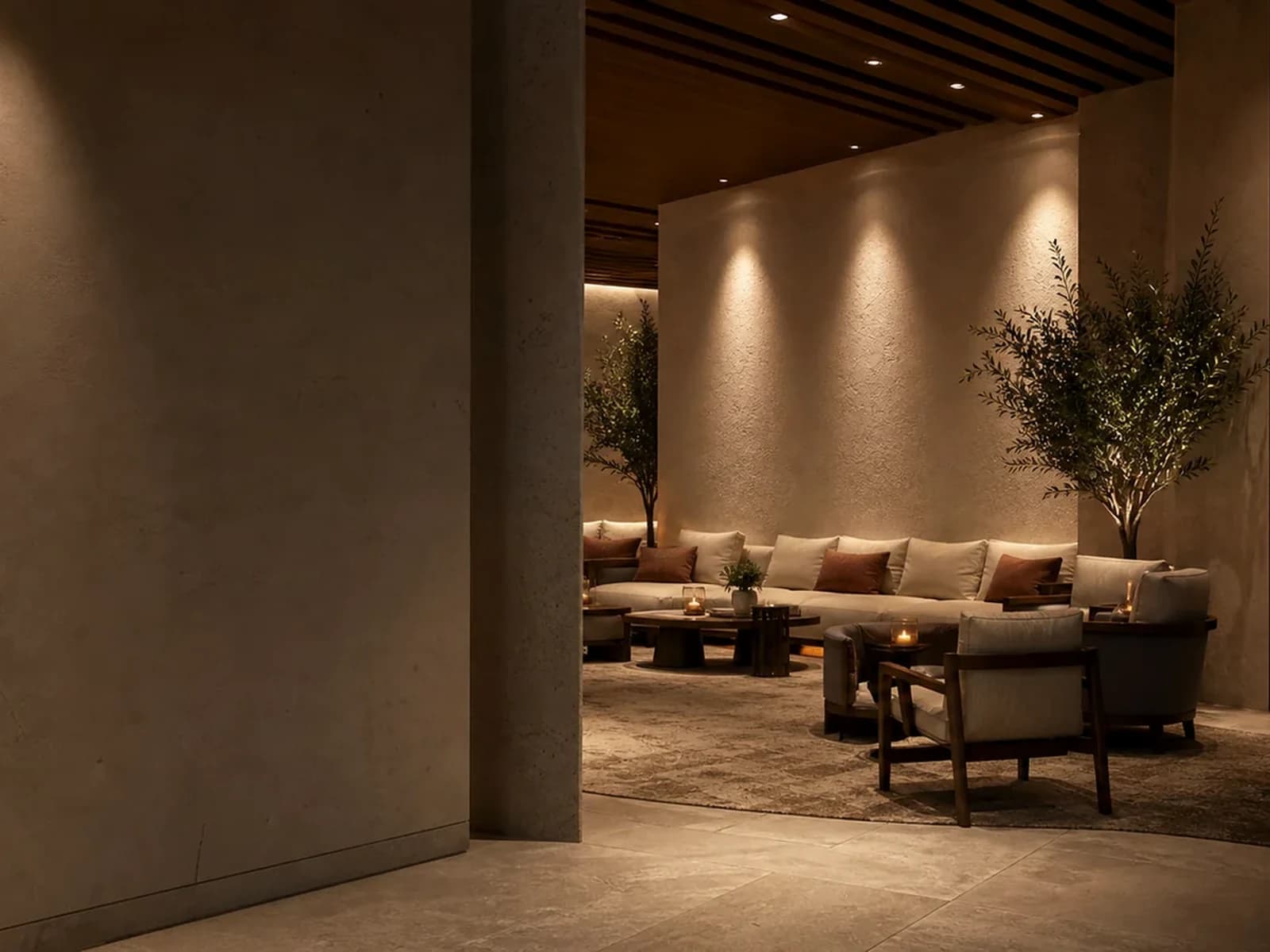

Application reference / not project evidence
An accent-lighting direction with controlled aim.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 42W | Ø140 × H155 mm | Ø125 mm |
| 60W | Ø166 × H175 mm | Ø150 mm |
| 42W | 144 × 144 × H171 mm | 125 × 125 mm |
| 60W | 169 × 169 × H191 mm | 150 × 150 mm |
| 42W | Ø148 × H155 mm | Ø125 mm |
| 60W | Ø176 × H175 mm | Ø150 mm |
Published row 2
- Power
- 60W
- Dimensions
- Ø166 × H175 mm
- Cut-out
- Ø150 mm
Published row 3
- Power
- 42W
- Dimensions
- 144 × 144 × H171 mm
- Cut-out
- 125 × 125 mm
Published row 4
- Power
- 60W
- Dimensions
- 169 × 169 × H191 mm
- Cut-out
- 150 × 150 mm
Published row 5
- Power
- 42W
- Dimensions
- Ø148 × H155 mm
- Cut-out
- Ø125 mm
Published row 6
- Power
- 60W
- Dimensions
- Ø176 × H175 mm
- Cut-out
- Ø150 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 15° / 24° / 38° / 55°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD2501
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
