Published row 1
- Power
- 8W
- Dimensions
- Square 62.5 × 62.5 × H51 mm
- Cut-out
- 55 × 55 mm
Product model / MET-TD2430

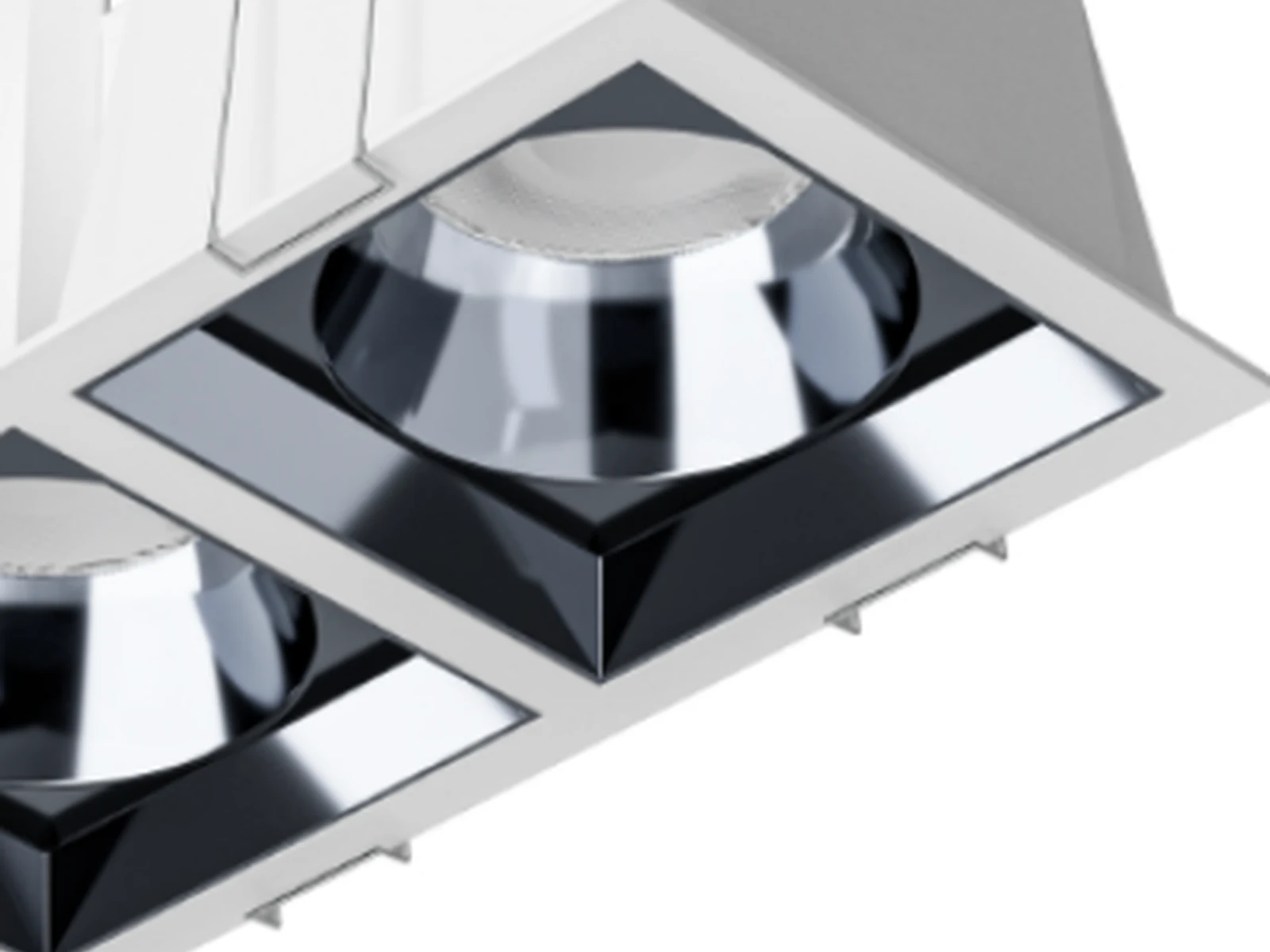

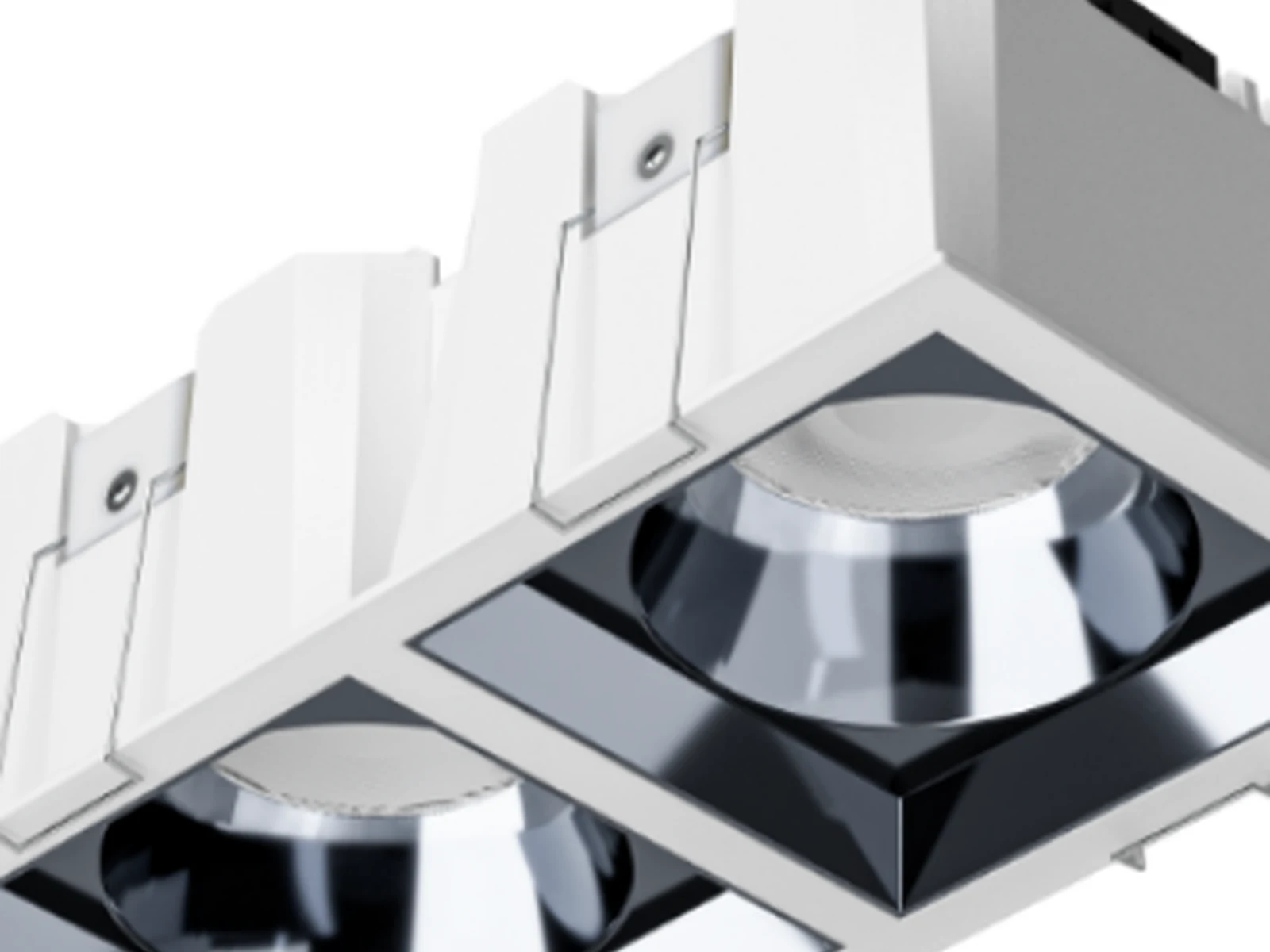

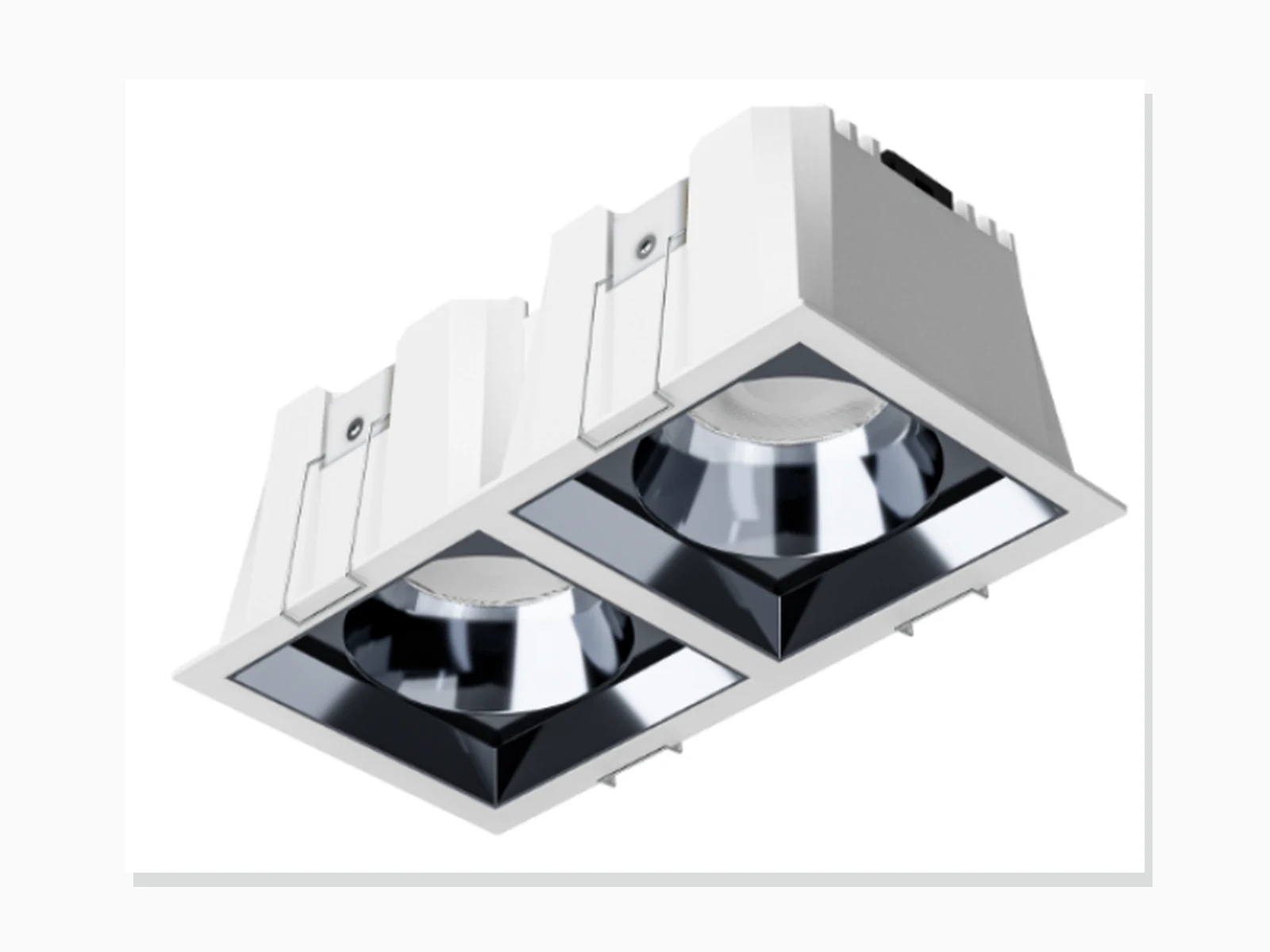

Twin Square COB Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application
Detail 01
Detail 02

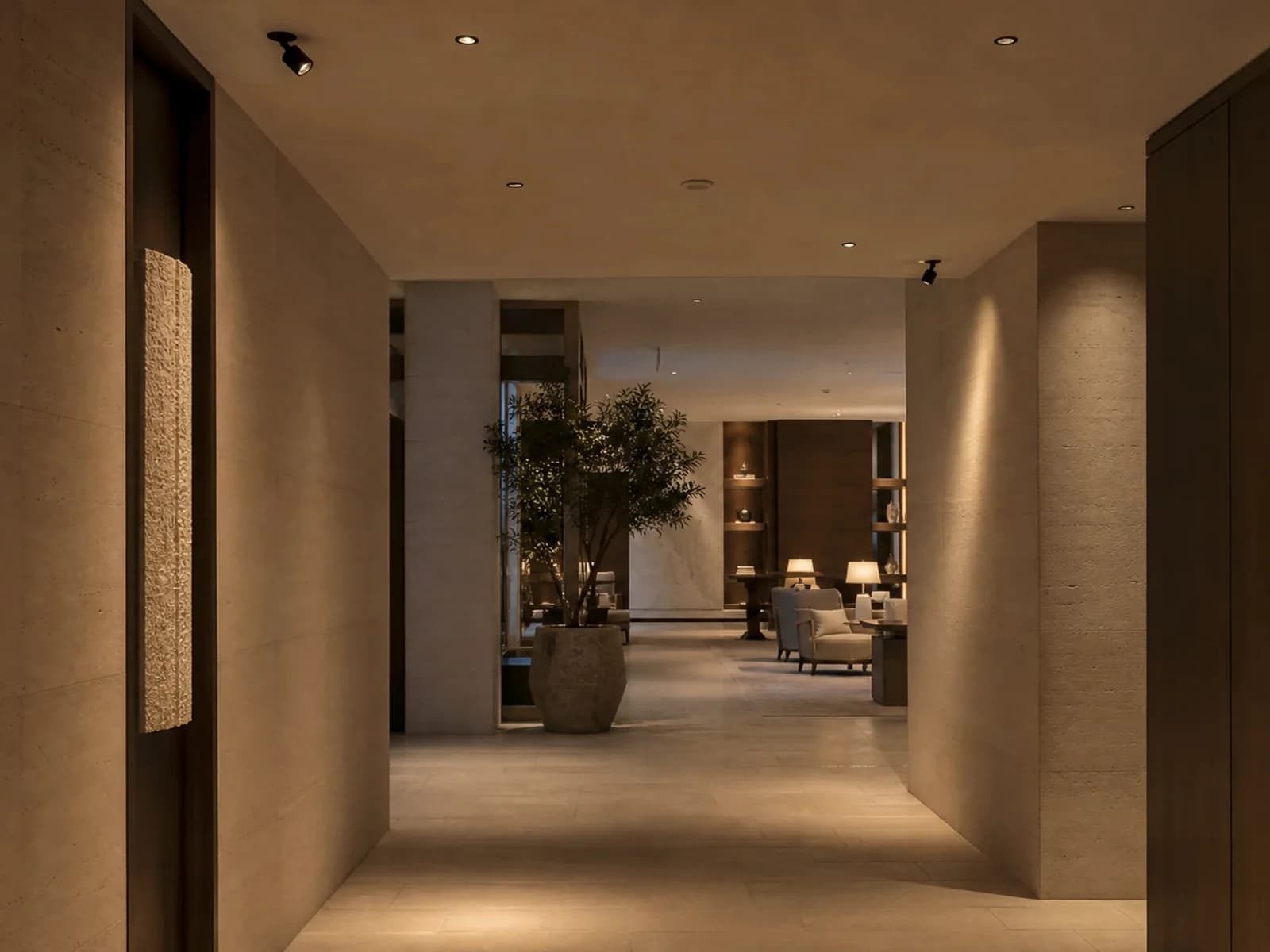

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 8W | Square 62.5 × 62.5 × H51 mm | 55 × 55 mm |
| 12W | Square 85 × 85 × H59 mm | 75 × 75 mm |
| 20W | Square 105 × 105 × H59 mm | 95 × 95 mm |
| 2*8W | Twin 118.5 × 62.5 × H51 mm | 110 × 55 mm |
| 2*12W | Twin 162.5 × 85 × H59 mm | 150 × 75 mm |
| 2*20W | Twin 201.2 × 105 × H73 mm | 190 × 95 mm |
Published row 2
- Power
- 12W
- Dimensions
- Square 85 × 85 × H59 mm
- Cut-out
- 75 × 75 mm
Published row 3
- Power
- 20W
- Dimensions
- Square 105 × 105 × H59 mm
- Cut-out
- 95 × 95 mm
Published row 4
- Power
- 2*8W
- Dimensions
- Twin 118.5 × 62.5 × H51 mm
- Cut-out
- 110 × 55 mm
Published row 5
- Power
- 2*12W
- Dimensions
- Twin 162.5 × 85 × H59 mm
- Cut-out
- 150 × 75 mm
Published row 6
- Power
- 2*20W
- Dimensions
- Twin 201.2 × 105 × H73 mm
- Cut-out
- 190 × 95 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 15° / 24° / 38° / 55°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD2430
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
