Published row 1
- Power
- 5W
- Dimensions
- Ø68 × H77 mm
- Cut-out
- Ø55 mm

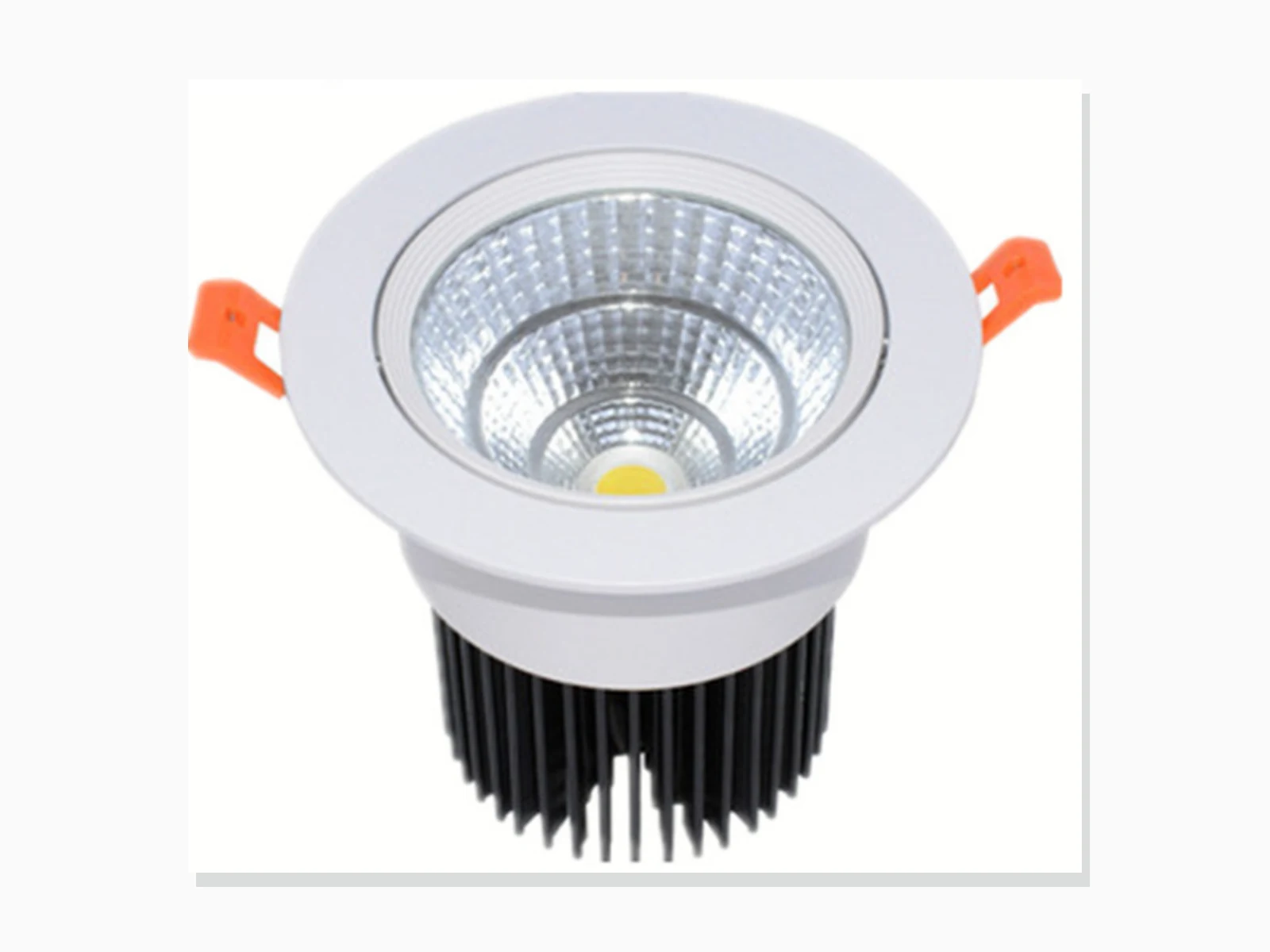

Product model / MET-TD226
Adjustable Cold-Forged COB Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Product
Application

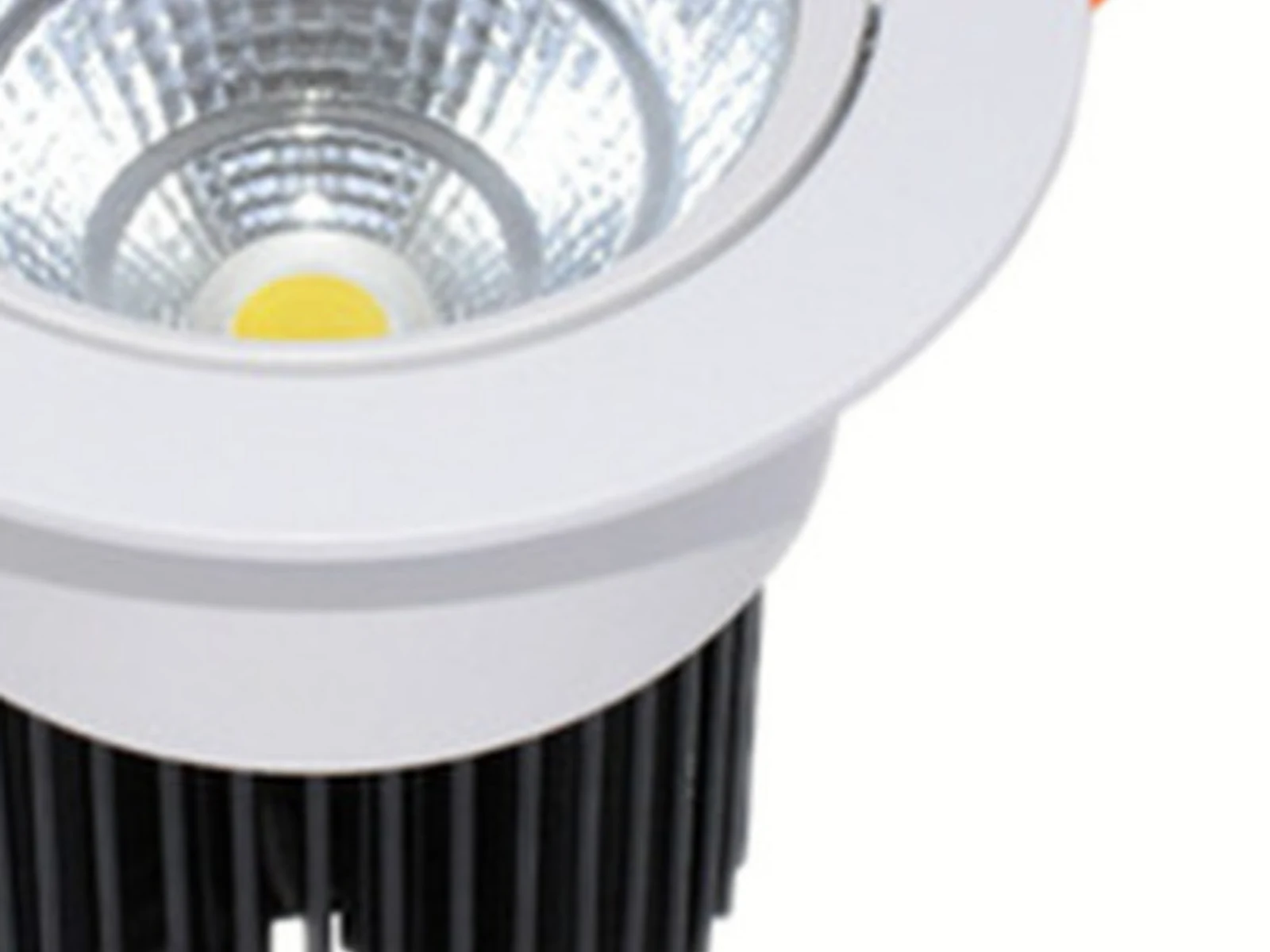

Detail 01

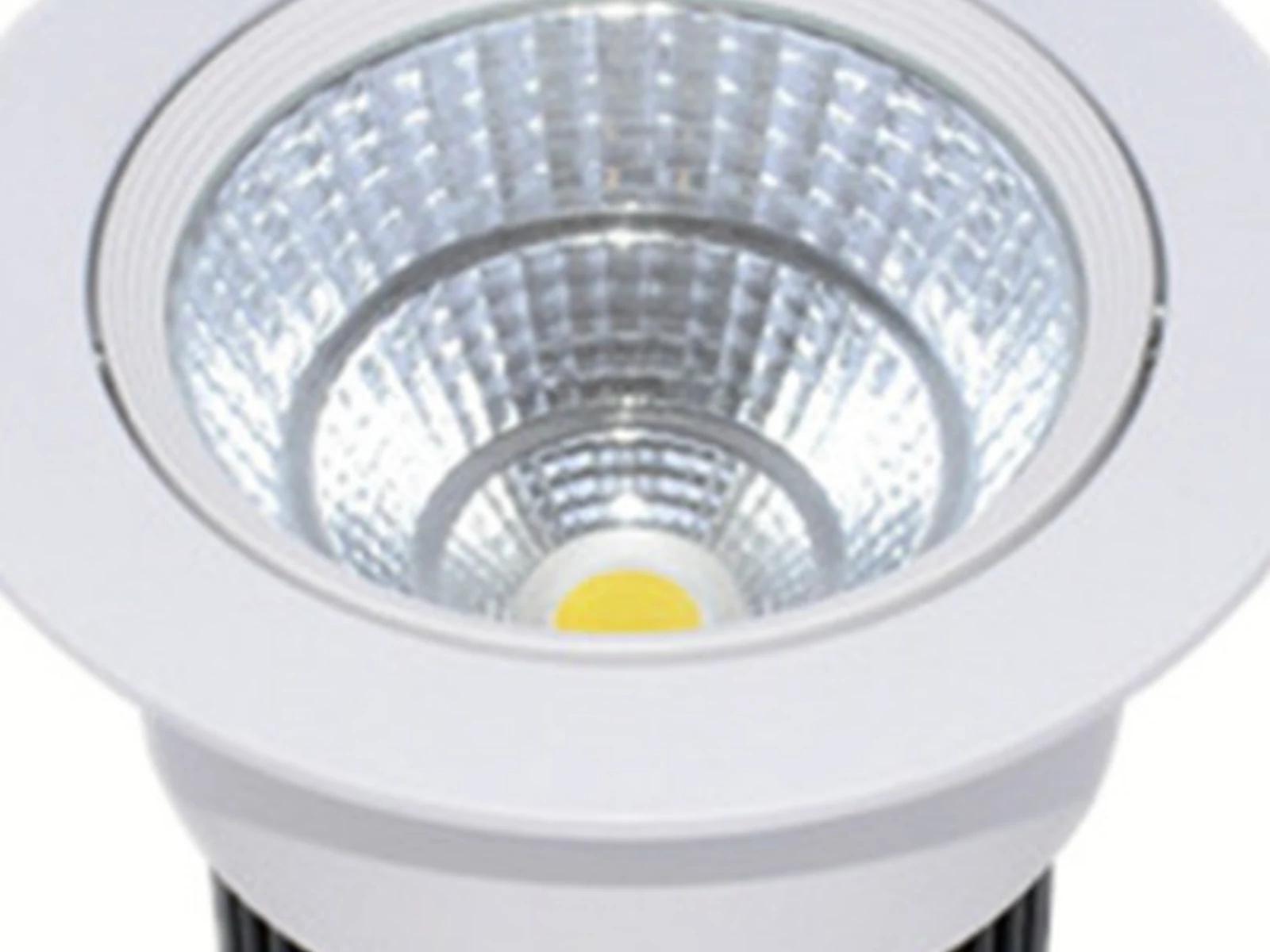

Detail 02

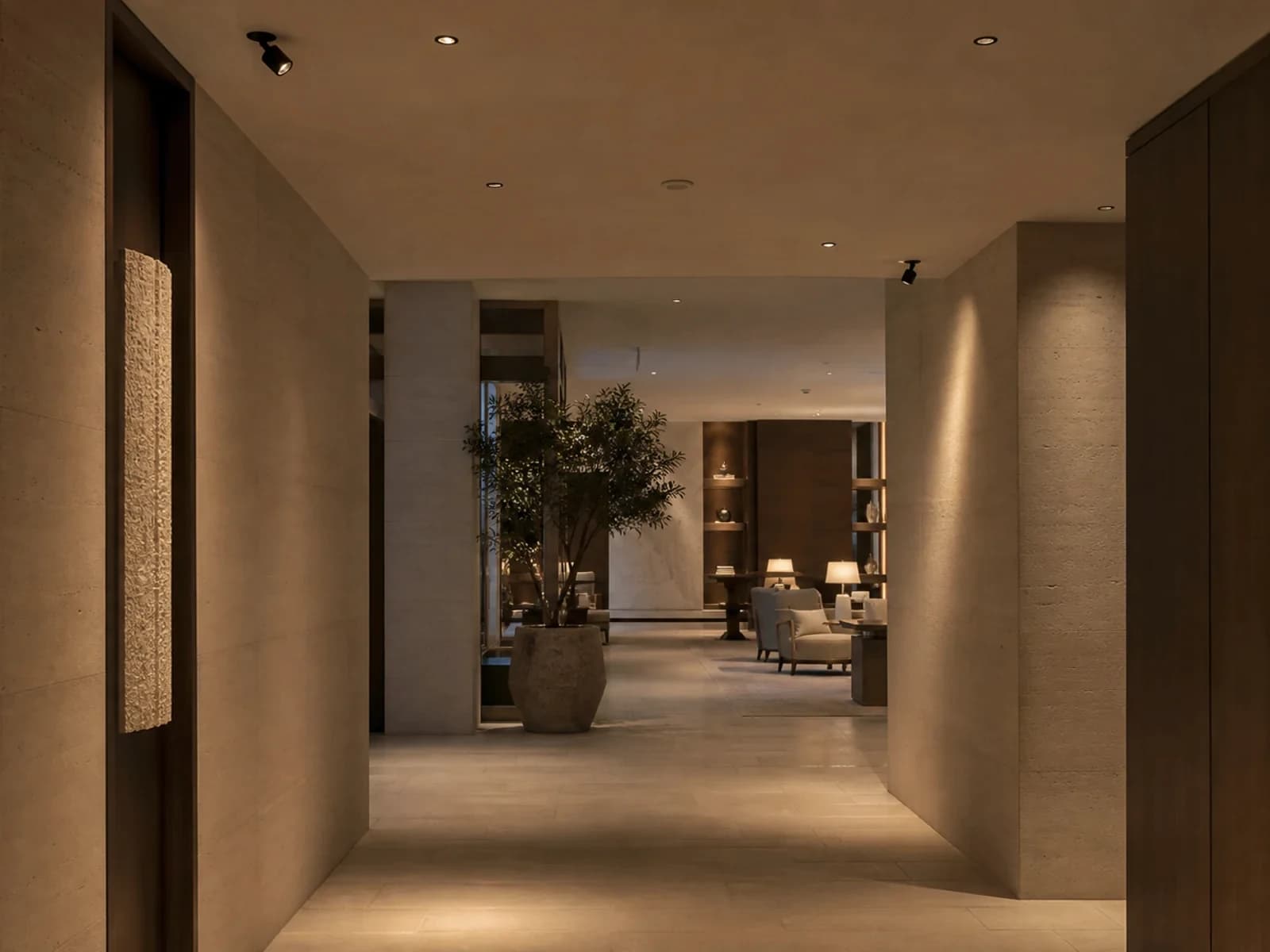

Application reference / not project evidence
An accent-lighting direction with controlled aim.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 5W | Ø68 × H77 mm | Ø55 mm |
| 7W | Ø90 × H62 mm | Ø75 mm |
| 10W | Ø90 × H62 mm | Ø75 mm |
| 12W | Ø108 × H75 mm | Ø95 mm |
| 14W | Ø108 × H92 mm | Ø95 mm |
| 20W | Ø138 × H95 mm | Ø120 mm |
| 30W | Ø138 × H118 mm | Ø120 mm |
| 40W | Ø160 × H140 mm | Ø140 mm |
| 50W | Ø180 × H143 mm | Ø160 mm |
Published row 2
- Power
- 7W
- Dimensions
- Ø90 × H62 mm
- Cut-out
- Ø75 mm
Published row 3
- Power
- 10W
- Dimensions
- Ø90 × H62 mm
- Cut-out
- Ø75 mm
Published row 4
- Power
- 12W
- Dimensions
- Ø108 × H75 mm
- Cut-out
- Ø95 mm
Published row 5
- Power
- 14W
- Dimensions
- Ø108 × H92 mm
- Cut-out
- Ø95 mm
Published row 6
- Power
- 20W
- Dimensions
- Ø138 × H95 mm
- Cut-out
- Ø120 mm
Published row 7
- Power
- 30W
- Dimensions
- Ø138 × H118 mm
- Cut-out
- Ø120 mm
Published row 8
- Power
- 40W
- Dimensions
- Ø160 × H140 mm
- Cut-out
- Ø140 mm
Published row 9
- Power
- 50W
- Dimensions
- Ø180 × H143 mm
- Cut-out
- Ø160 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 15° / 24° / 30°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD226
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
