Published row 1
- Power
- 7W
- Dimensions
- Ø95 × H59 mm
- Cut-out
- Ø70 mm

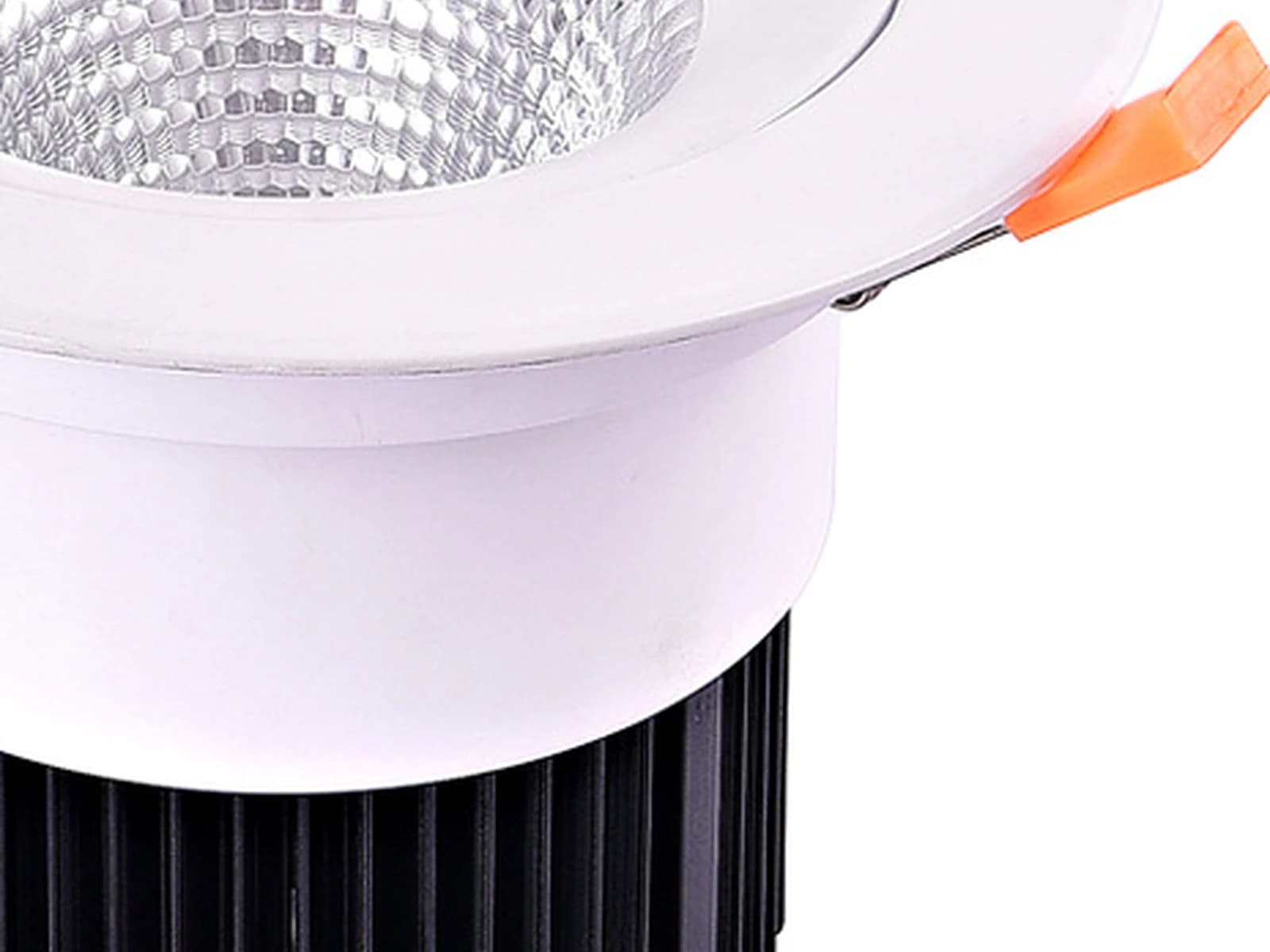

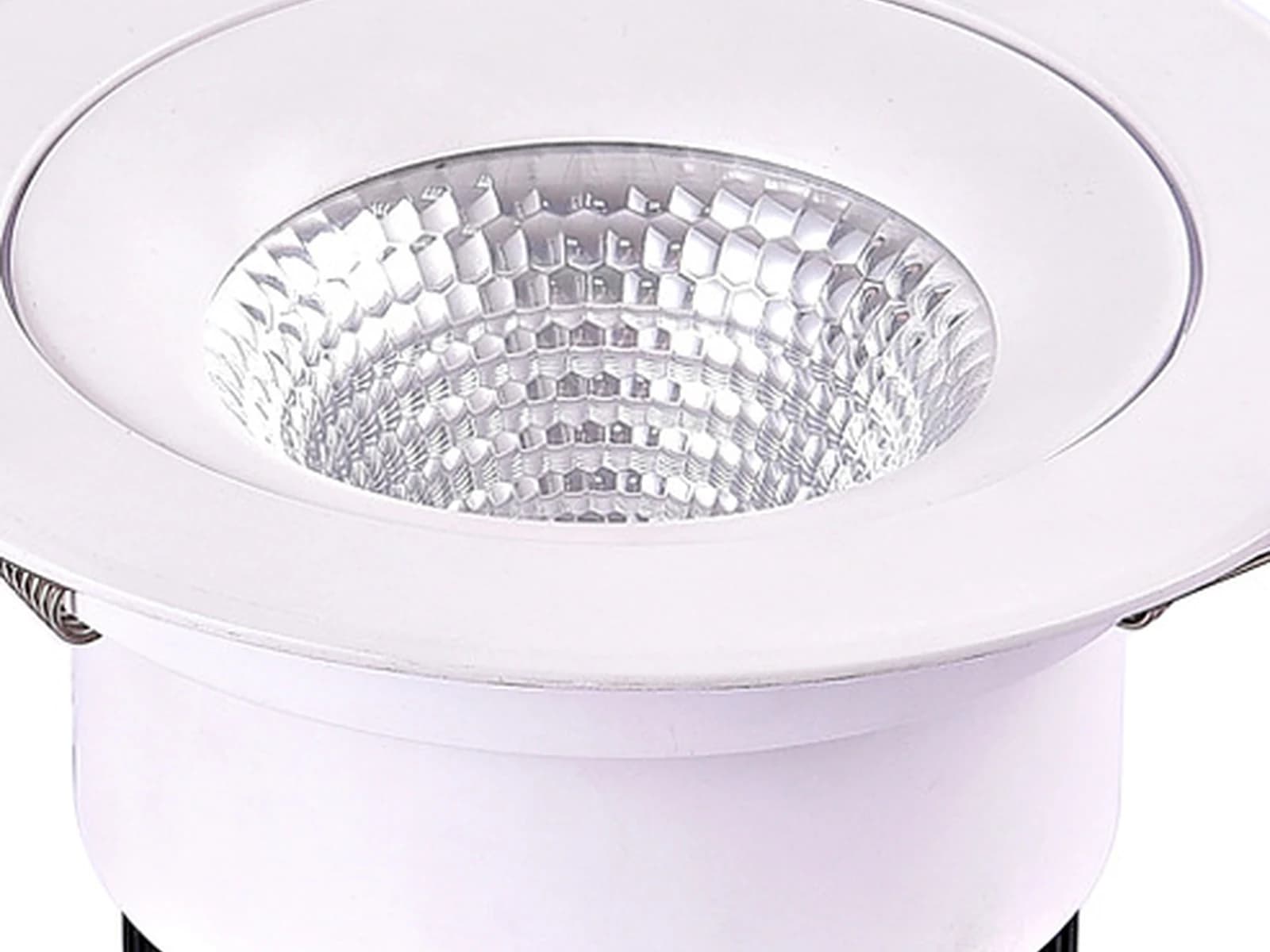

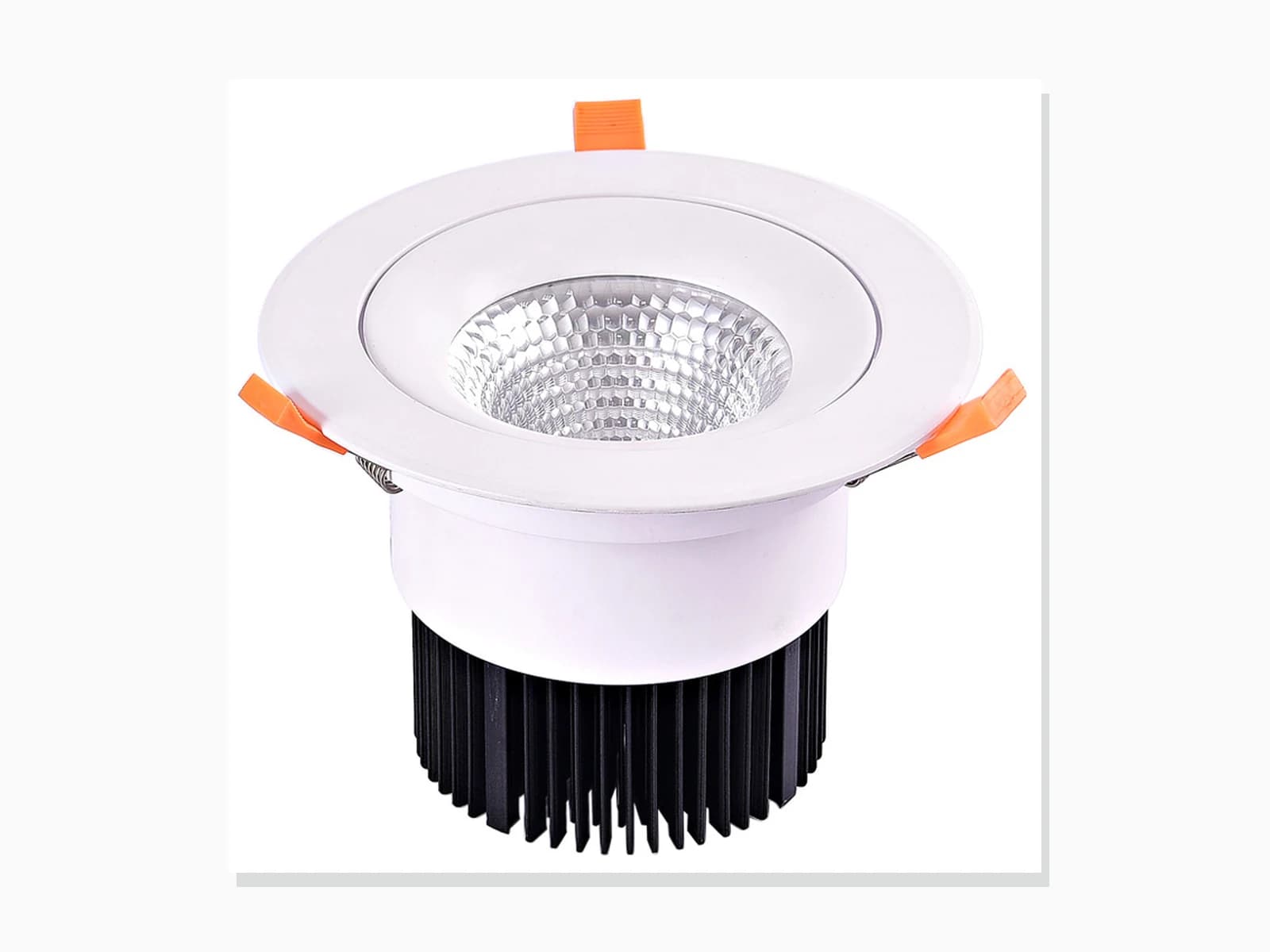

Product model / MET-TD224
High-Output Adjustable COB Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Product
Application
Detail 01
Detail 02

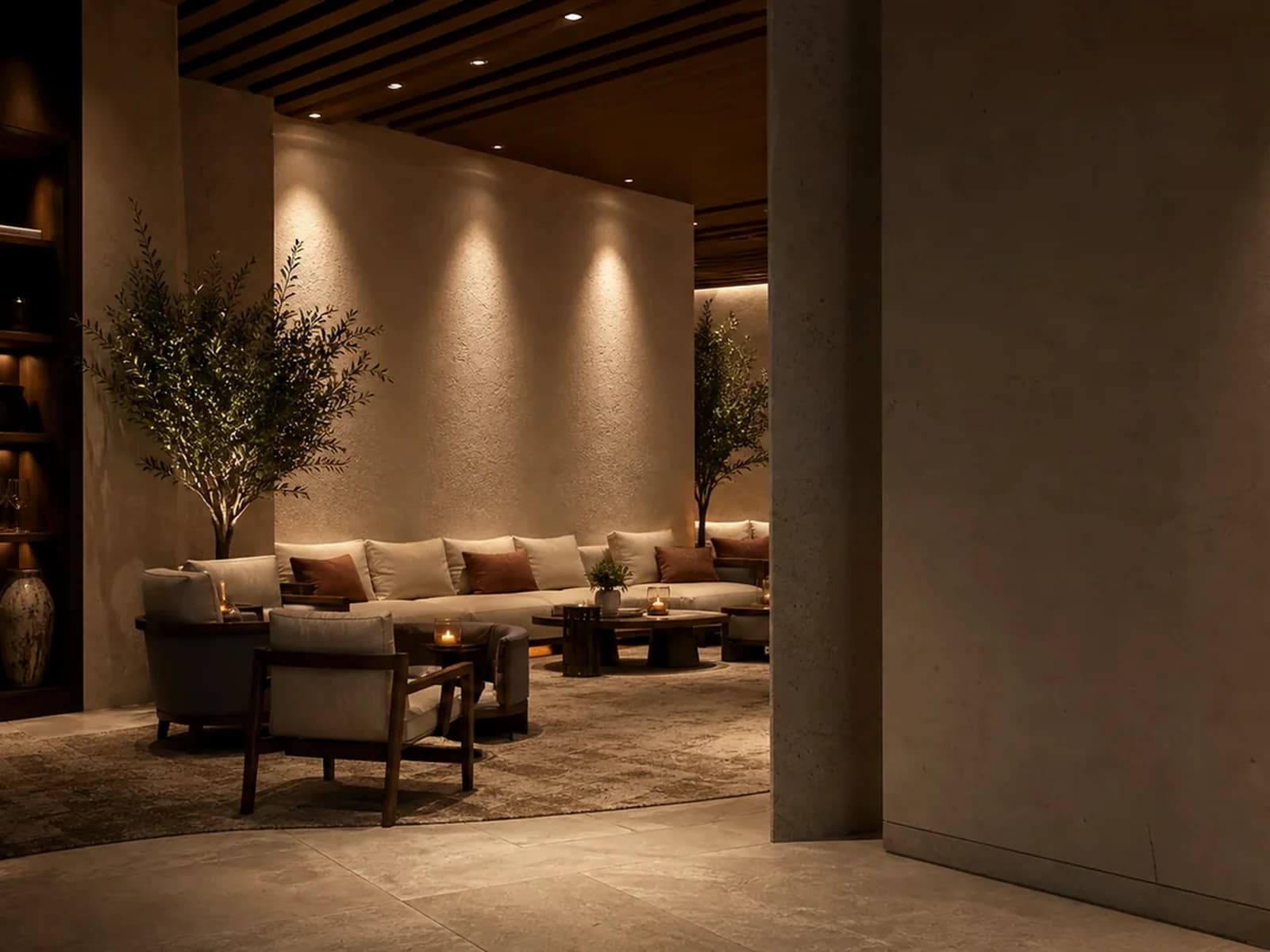

Application reference / not project evidence
An accent-lighting direction with controlled aim.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 7W | Ø95 × H59 mm | Ø70 mm |
| 10W | Ø95 × H79 mm | Ø70 mm |
| 12W | Ø111 × H88 mm | Ø80 mm |
| 14W | Ø119 × H109 mm | Ø90 mm |
| 24W | Ø142 × H118 mm | Ø110 mm |
| 36W | Ø180 × H128 mm | Ø145 mm |
| 50W | Ø180 × H1148 mm | Ø145 mm |
| 50W | Ø194 × H129 mm | Ø158 mm |
| 60W | Ø194 × H149 mm | Ø158 mm |
| 50W | Ø233 × H129 mm | Ø210 mm |
| 60W | Ø233 × H149 mm | Ø210 mm |
| 80W | Ø233 × H169 mm | Ø210 mm |
| 90W | Ø233 × H174 mm | Ø210 mm |
Published row 2
- Power
- 10W
- Dimensions
- Ø95 × H79 mm
- Cut-out
- Ø70 mm
Published row 3
- Power
- 12W
- Dimensions
- Ø111 × H88 mm
- Cut-out
- Ø80 mm
Published row 4
- Power
- 14W
- Dimensions
- Ø119 × H109 mm
- Cut-out
- Ø90 mm
Published row 5
- Power
- 24W
- Dimensions
- Ø142 × H118 mm
- Cut-out
- Ø110 mm
Published row 6
- Power
- 36W
- Dimensions
- Ø180 × H128 mm
- Cut-out
- Ø145 mm
Published row 7
- Power
- 50W
- Dimensions
- Ø180 × H1148 mm
- Cut-out
- Ø145 mm
Published row 8
- Power
- 50W
- Dimensions
- Ø194 × H129 mm
- Cut-out
- Ø158 mm
Published row 9
- Power
- 60W
- Dimensions
- Ø194 × H149 mm
- Cut-out
- Ø158 mm
Published row 10
- Power
- 50W
- Dimensions
- Ø233 × H129 mm
- Cut-out
- Ø210 mm
Published row 11
- Power
- 60W
- Dimensions
- Ø233 × H149 mm
- Cut-out
- Ø210 mm
Published row 12
- Power
- 80W
- Dimensions
- Ø233 × H169 mm
- Cut-out
- Ø210 mm
Published row 13
- Power
- 90W
- Dimensions
- Ø233 × H174 mm
- Cut-out
- Ø210 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 15° / 24° / 38° / 60°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD224
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
