Published row 1
- Power
- 10W
- Dimensions
- Ø90 × H45 mm Ø100 × H45 mm
- Cut-out
- Ø75 mm
Product model / MET-TD221

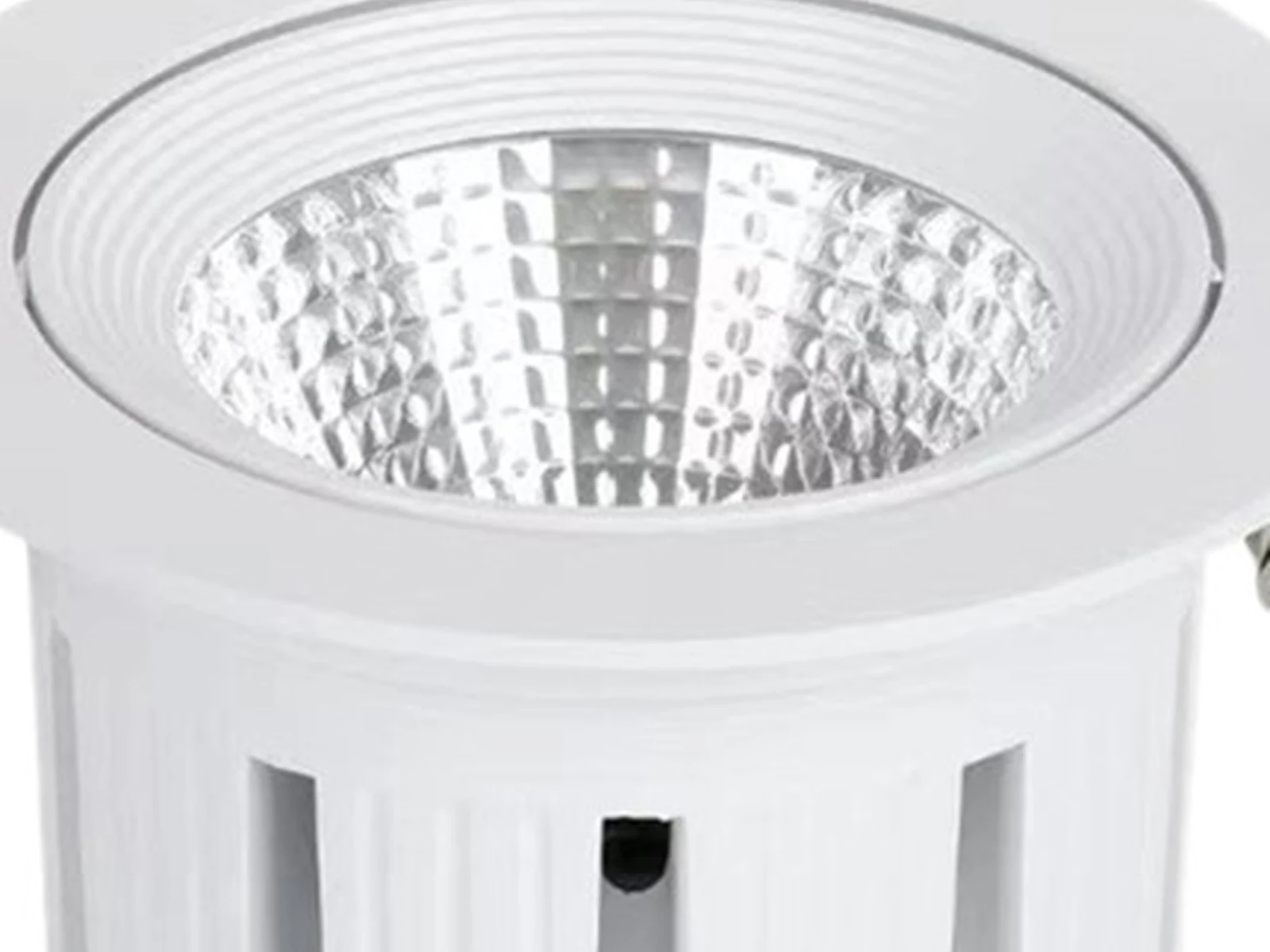

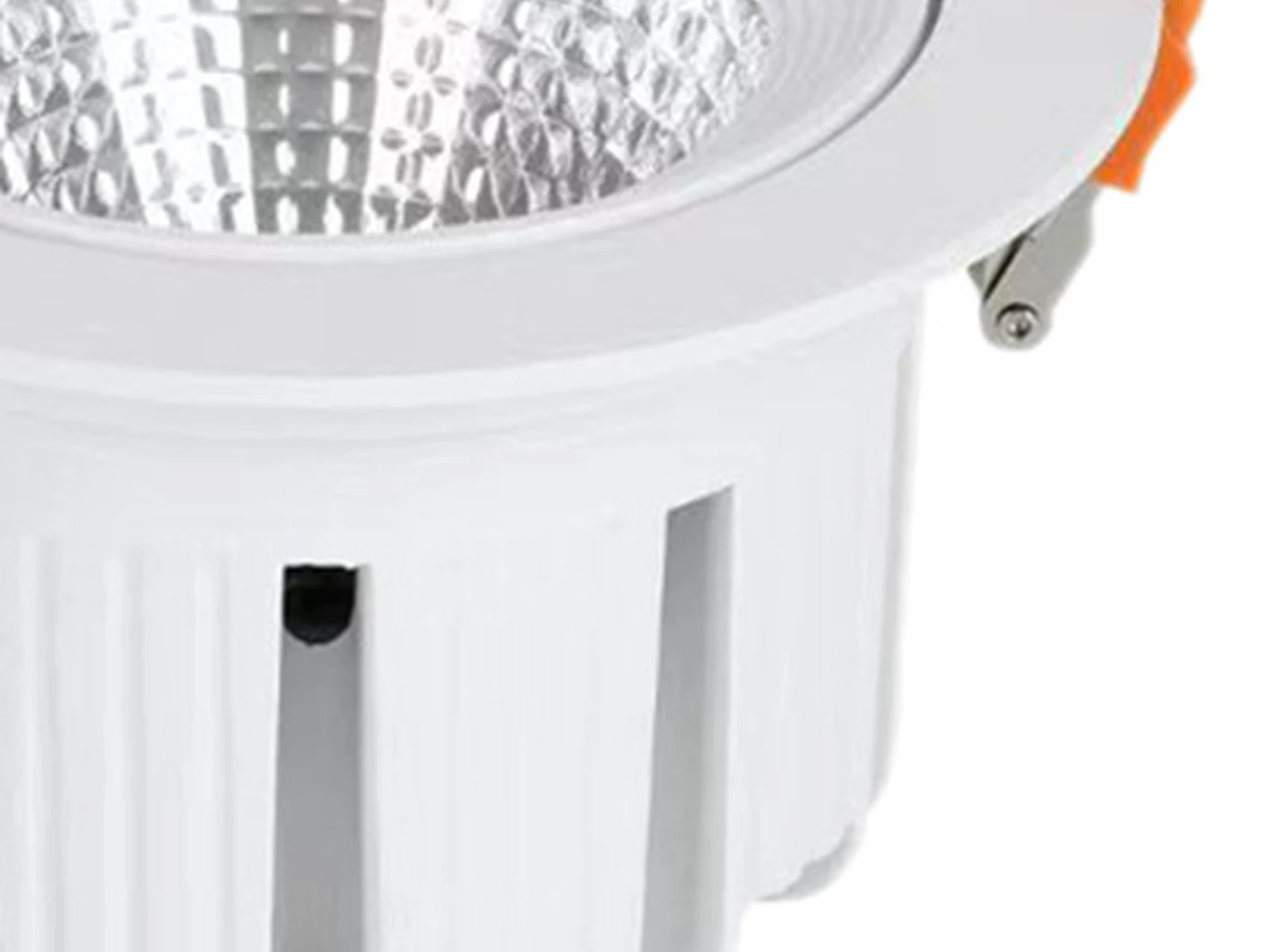

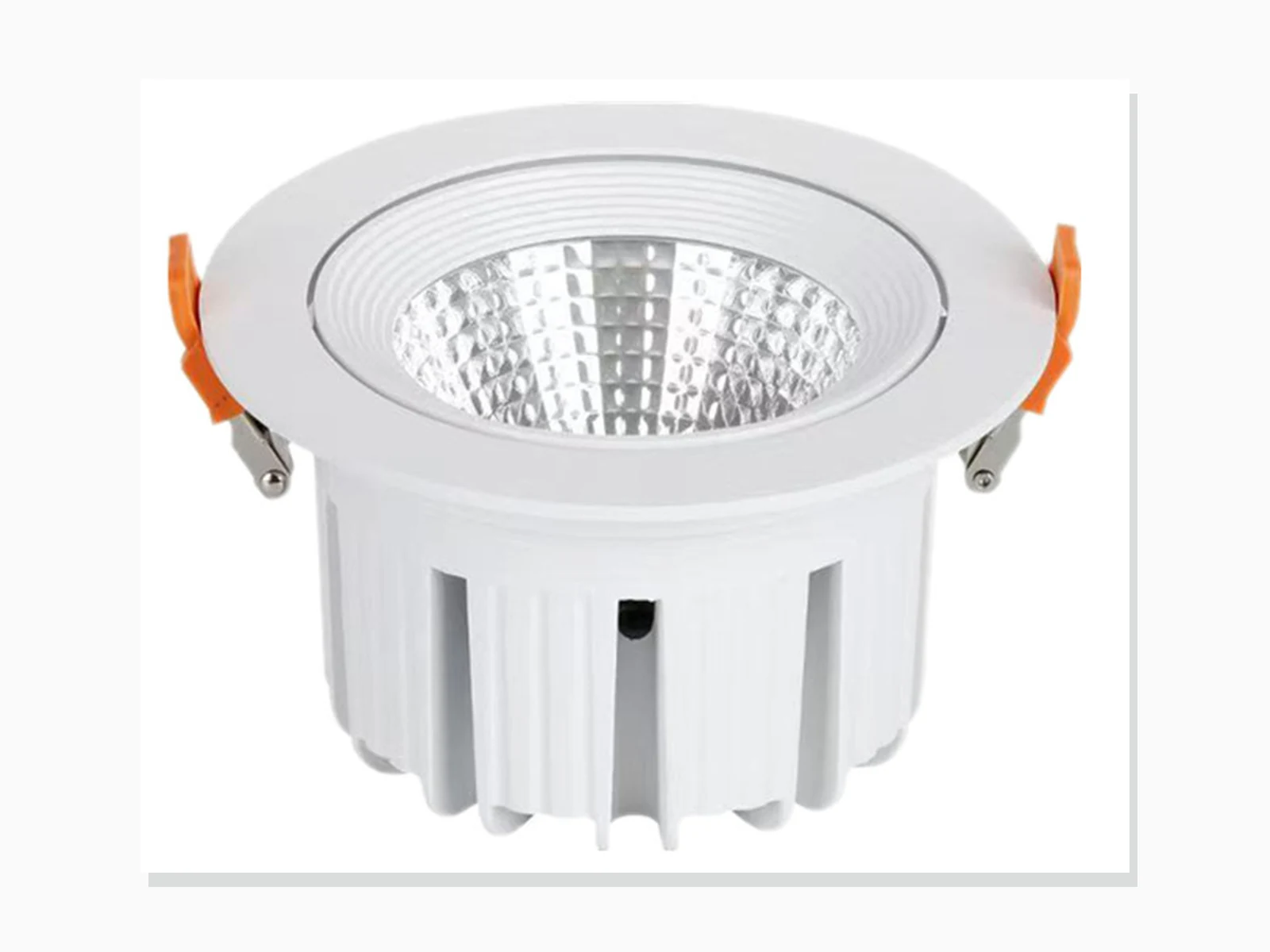

Adjustable Reflector COB Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Product
Application
Detail 01
Detail 02
Application reference / not project evidence
An accent-lighting direction with controlled aim.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 10W | Ø90 × H45 mm Ø100 × H45 mm | Ø75 mm |
| 14W | Ø110 × H50 mm | Ø95 mm |
| 20W | Ø138 × H65 mm | Ø115-120 mm |
| 40W | Ø160 × H130 mm | Ø145 mm |
| 50W | Ø180 × H105 mm | Ø160-170 mm |
| 60W | Ø230 × H115 mm | Ø200 mm |
| 80W | Ø230 × H125 mm | Ø200 mm |
Published row 2
- Power
- 14W
- Dimensions
- Ø110 × H50 mm
- Cut-out
- Ø95 mm
Published row 3
- Power
- 20W
- Dimensions
- Ø138 × H65 mm
- Cut-out
- Ø115-120 mm
Published row 4
- Power
- 40W
- Dimensions
- Ø160 × H130 mm
- Cut-out
- Ø145 mm
Published row 5
- Power
- 50W
- Dimensions
- Ø180 × H105 mm
- Cut-out
- Ø160-170 mm
Published row 6
- Power
- 60W
- Dimensions
- Ø230 × H115 mm
- Cut-out
- Ø200 mm
Published row 7
- Power
- 80W
- Dimensions
- Ø230 × H125 mm
- Cut-out
- Ø200 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 24° / 50°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD221
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
