Published row 1
- Power
- 7W
- Dimensions
- Fixed Ø62 × H85 mm
- Cut-out
- Ø50 mm
Catalogue model / MET-TD322
COB Wall-Wash Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Catalogue source
Product family and image are traceable to a supplier catalogue; project configuration still requires review.
Commercial status / no assumed terms
Commercial status for MET-TD322
These fields show the current public status. A written quotation is still required before any supply commitment.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Quotation
- Reviewed RFQ required
- Delivery & Incoterm
- Confirm destination and requested term
- Warranty
- Confirm in reviewed RFQ
- Document scope
- Confirm named model and version files in reviewed RFQ
Source media

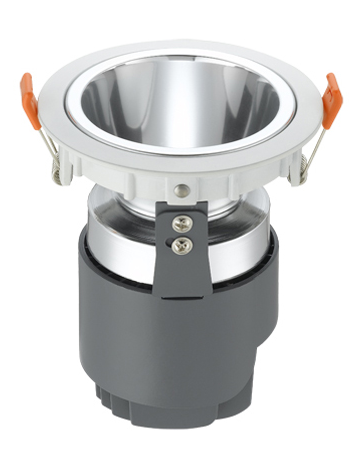

Primary catalogue view
Selection data
Configuration options
Choose a published row as the comparison starting point; final availability is checked per RFQ.
| Power | Dimensions | Cut-out |
|---|---|---|
| 7W | Fixed Ø62 × H85 mm | Ø50 mm |
| 12W | Confirm for project | Ø75 mm |
| 15W | Ø110 × H140 mm | Ø100 mm |
| 20W | Ø110 × H140 mm | Ø100 mm |
| 20W | Ø140 × H155 mm | Ø125-130 mm |
| 24W | Ø140 × H155 mm | Ø125-130 mm |
| 30W | Ø168 × H200 mm | Ø150-155 mm |
| 36W | Ø168 × H200 mm | Ø150-155 mm |
| 40W | Ø198 × H210 mm | Ø185 mm |
Published row 2
- Power
- 12W
- Dimensions
- Confirm for project
- Cut-out
- Ø75 mm
Published row 3
- Power
- 15W
- Dimensions
- Ø110 × H140 mm
- Cut-out
- Ø100 mm
Published row 4
- Power
- 20W
- Dimensions
- Ø110 × H140 mm
- Cut-out
- Ø100 mm
Published row 5
- Power
- 20W
- Dimensions
- Ø140 × H155 mm
- Cut-out
- Ø125-130 mm
Published row 6
- Power
- 24W
- Dimensions
- Ø140 × H155 mm
- Cut-out
- Ø125-130 mm
Published row 7
- Power
- 30W
- Dimensions
- Ø168 × H200 mm
- Cut-out
- Ø150-155 mm
Published row 8
- Power
- 36W
- Dimensions
- Ø168 × H200 mm
- Cut-out
- Ø150-155 mm
Published row 9
- Power
- 40W
- Dimensions
- Ø198 × H210 mm
- Cut-out
- Ø185 mm
Additional source media

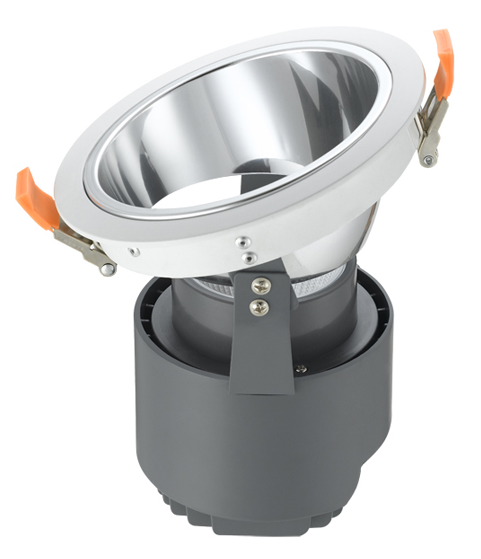

More catalogue views
Evidence boundary
Published catalogue fields
- Light source
- COB LED
- CCT
- 2700–6500K
- Input voltage
- AC:220-240V
- Power factor
- ≥0.5/0.9
- CRI
- ≥80/90
- Beam angle
- 15° / 24° / 38°
- Material
- Die-cast aluminum
Before selection
Fields to confirm
- Warranty
- 3–5 years; confirm by selected configuration
- Selected power, dimensions and cut-out
- Order quantity and delivery window
- Finish, driver and control requirement
- Model-level photometric and approval documents
Catalogue data identifies the family; it does not by itself confirm project compliance, current supply or document coverage for the selected row.
Application review
Applications to assess
- Retail and display accent-lighting studies
- Hospitality and villa focal-lighting schedules
- Directional or wall-wash ceiling comparisons
FAQ
Common procurement questions
What is confirmed on this page?
The model, catalogue media, published specifications and the listed configuration rows.
What still needs a project check?
The exact configuration, quantity, timing, finish, control and model-level approval file set.
What should I send for a shortlist?
Share the BOQ, ceiling or room schedule, cut-out, quantity, target market and required delivery window.
