Published row 1
- Power
- 14W
- Dimensions
- Ø83 × H65 mm
- Cut-out
- Ø75 mm
Catalogue model / MET-TD2409
IP44 Anti-Glare Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Catalogue source
Product family and image are traceable to a supplier catalogue; project configuration still requires review.
Commercial status / no assumed terms
Commercial status for MET-TD2409
These fields show the current public status. A written quotation is still required before any supply commitment.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Quotation
- Reviewed RFQ required
- Delivery & Incoterm
- Confirm destination and requested term
- Warranty
- Confirm in reviewed RFQ
- Document scope
- Confirm named model and version files in reviewed RFQ
Source media

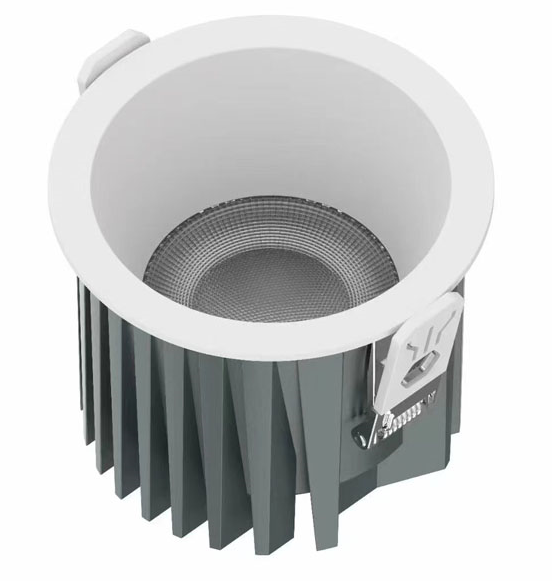

Primary catalogue view
Selection data
Configuration options
Choose a published row as the comparison starting point; final availability is checked per RFQ.
| Power | Dimensions | Cut-out |
|---|---|---|
| 14W | Ø83 × H65 mm | Ø75 mm |
| 20W | Ø103 × H70 mm | Ø95 mm |
| 30W | Ø132 × H75 mm | Ø120-125 mm |
| 40W | Ø160 × H80 mm | Ø145-150 mm |
| 48W | Ø180 × H85 mm | Ø165-170 mm |
| 14W | 90 × 90 × H60 mm | 75 × 75 mm |
| 20W | 110 × 110 × H70 mm | 95 × 95 mm |
| 30W | 145 × 145 × H75 mm | 130 × 130 mm |
| 40W | 165 × 165 × H85 mm | 150 × 150 mm |
| 48W | 185 × 185 × H92 mm | 170 × 170 mm |
Published row 2
- Power
- 20W
- Dimensions
- Ø103 × H70 mm
- Cut-out
- Ø95 mm
Published row 3
- Power
- 30W
- Dimensions
- Ø132 × H75 mm
- Cut-out
- Ø120-125 mm
Published row 4
- Power
- 40W
- Dimensions
- Ø160 × H80 mm
- Cut-out
- Ø145-150 mm
Published row 5
- Power
- 48W
- Dimensions
- Ø180 × H85 mm
- Cut-out
- Ø165-170 mm
Published row 6
- Power
- 14W
- Dimensions
- 90 × 90 × H60 mm
- Cut-out
- 75 × 75 mm
Published row 7
- Power
- 20W
- Dimensions
- 110 × 110 × H70 mm
- Cut-out
- 95 × 95 mm
Published row 8
- Power
- 30W
- Dimensions
- 145 × 145 × H75 mm
- Cut-out
- 130 × 130 mm
Published row 9
- Power
- 40W
- Dimensions
- 165 × 165 × H85 mm
- Cut-out
- 150 × 150 mm
Published row 10
- Power
- 48W
- Dimensions
- 185 × 185 × H92 mm
- Cut-out
- 170 × 170 mm
Additional source media

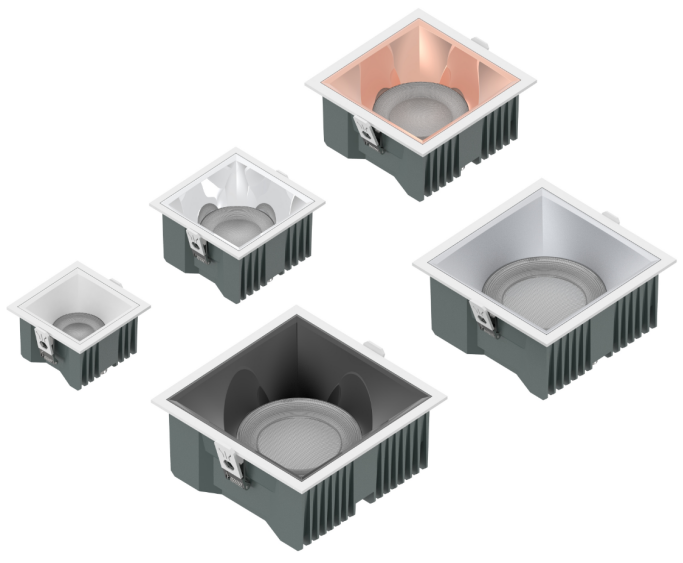

More catalogue views
Evidence boundary
Published catalogue fields
- Light source
- SMD LED
- CCT
- 2700–6500K
- Input voltage
- AC:220-240V
- Power factor
- ≥0.5/0.9
- CRI
- ≥80/90
- Beam angle
- 55°
- Material
- Die-cast aluminum
Before selection
Fields to confirm
- Warranty
- 3–5 years; confirm by selected configuration
- Selected power, dimensions and cut-out
- Order quantity and delivery window
- Finish, driver and control requirement
- Model-level photometric and approval documents
Catalogue data identifies the family; it does not by itself confirm project compliance, current supply or document coverage for the selected row.
Application review
Applications to assess
- Residential and hospitality ceiling schedules
- Villa architectural-lighting packages
- Commercial ambient-lighting comparisons
FAQ
Common procurement questions
What is confirmed on this page?
The model, catalogue media, published specifications and the listed configuration rows.
What still needs a project check?
The exact configuration, quantity, timing, finish, control and model-level approval file set.
What should I send for a shortlist?
Share the BOQ, ceiling or room schedule, cut-out, quantity, target market and required delivery window.
