What Should You Consider Before Starting a Bridge Lighting Project?

Quick answer

Before starting a bridge lighting project in the Middle East, the project team should confirm three things first: durable high-protection fixtures, controlled brightness and glare, and a smart lighting control system. Bridge lighting is harder to maintain than ordinary facade lighting, so product reliability, wiring planning, anti-corrosion performance and driver safety must be decided before price comparison.

Why bridge lighting needs different planning

Bridge lighting is one of the most visible parts of urban nightscape design. A well-designed bridge lighting system can improve a city skyline, enhance waterfront tourism, create a landmark for highways or commercial districts and support city branding during national celebrations.

In Dubai, Abu Dhabi, Doha, Riyadh, Jeddah, Kuwait City, Manama and Muscat, bridge lighting is often used for both architectural identity and public infrastructure value. It is different from normal building facade lighting because bridges involve traffic safety, difficult maintenance, road or water reflection, long cable routes and strict outdoor reliability requirements.

1. Choose durable high-protection bridge lighting fixtures

Many bridges are located above rivers, highways, coastal roads, ports or busy traffic zones. After fixtures are installed, maintenance can be complicated, expensive and time-consuming. For this reason, bridge lighting products should be selected for long-term stability rather than only low initial cost.

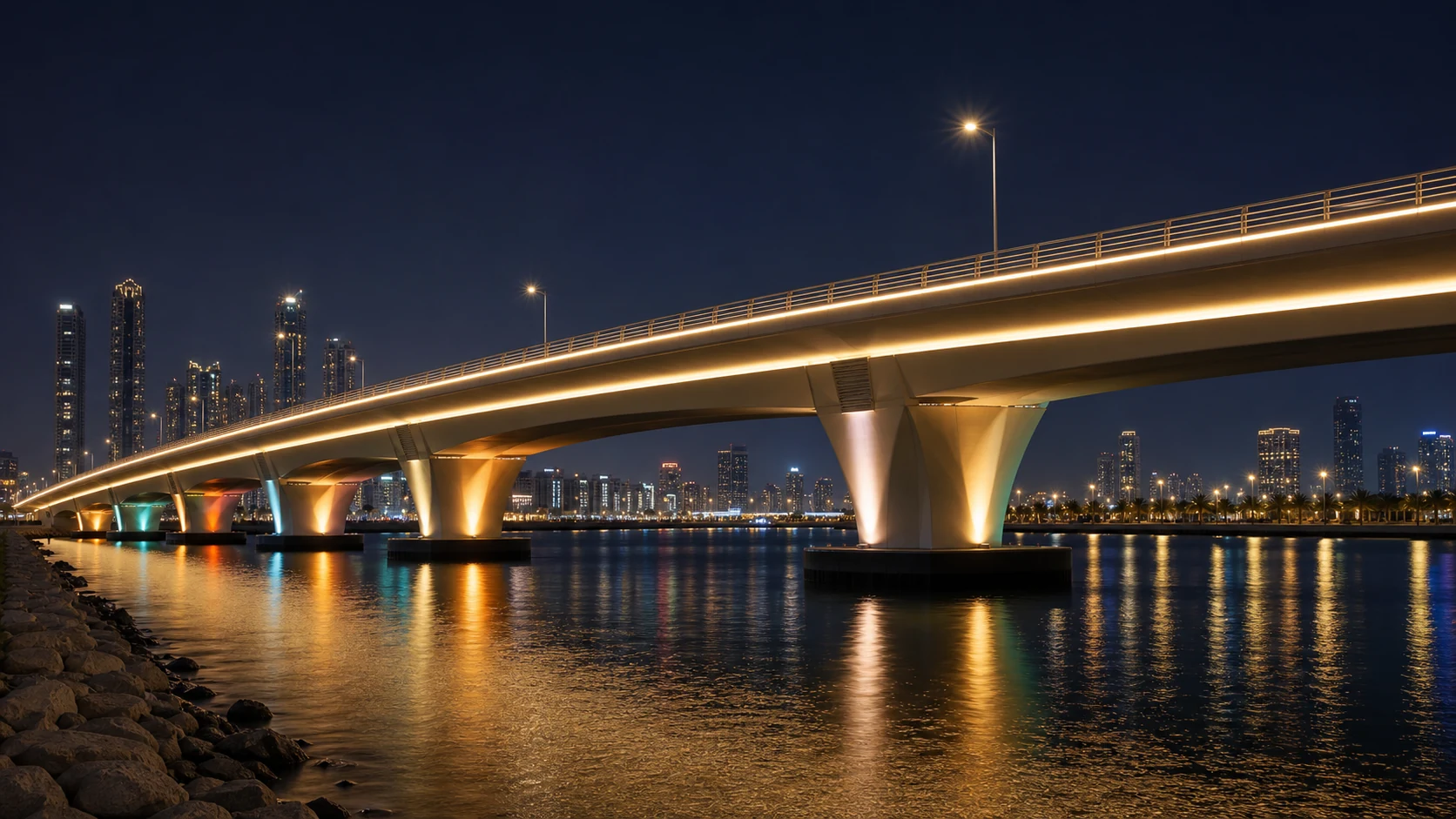

Bridge outline lightingLinear lights and guardrail lights define edges, railings, bridge cables and structural lines.

Outdoor fixture familiesWall washers, flood lights, point lights and pixel lights cover different bridge structures.

Reliability checksHeat dissipation, waterproofing, anti-corrosion finish and stable drivers matter in GCC climates.

For Middle East projects, fixtures should resist high temperature, strong sunlight, sand, dust, humidity and long operating hours. In coastal cities such as Dubai, Doha, Abu Dhabi, Jeddah and Kuwait City, anti-corrosion performance is especially important because salt air can affect housings, screws, brackets, connectors and cable exits.

2. Control brightness, angle and glare

Bridge lighting should look beautiful, but it must also remain safe for drivers, pedestrians, nearby buildings and the surrounding environment. If fixtures are too bright or installed at the wrong angle, they may affect driver visibility, create road glare or produce uncomfortable reflections on water surfaces.

The goal is not simply to make the bridge brighter. A successful bridge lighting plan should make the structure clear, elegant, safe and visually comfortable. LED linear lights can outline guardrails and bridge edges. Wall washers can illuminate bridge columns, towers and side walls. Flood lights can highlight larger structural parts. Point lights or pixel lights can create dynamic patterns for landmark bridges and waterfront festivals.

3. Use smart lighting control systems

A professional bridge lighting system should support different scenes, brightness levels, color effects and operating times. The lighting can be divided into evening peak mode, normal night mode, late-night energy-saving mode, holiday mode, festival mode, National Day mode, event mode and maintenance mode.

For RGB and RGBW bridge lighting projects, DMX512 or a smart control system can create color changes, chasing effects, gradients and synchronized scenes. For Middle East cities, this is useful for National Day, Ramadan, Eid, waterfront events, tourism campaigns and city festivals.

Recommended LED fixtures for bridge lighting projects

• LED linear lights: outline bridge edges, railings, cables and structural lines.
• LED wall washers: illuminate bridge towers, columns, side walls and large surfaces.
• LED flood lights: provide long-distance projection for large bridge structures and major architectural parts.
• LED point lights: create decorative effects, pixel matrix scenes and dynamic patterns.
• LED guardrail lights: improve bridge outline visibility and enhance safety.
• RGB/RGBW dynamic lighting: support programmable scenes, city events and landmark night views.

Key technical requirements for GCC bridge lighting

Bridge lighting design process

1. Analyze the bridge: review bridge type, structure, length, columns, railings, cables, traffic lane and viewing distance.
2. Confirm the purpose: decide whether the priority is landmark nightscape, traffic safety, tourism, festival scenes or waterfront identity.
3. Select fixture families: combine linear lights, wall washers, flood lights, point lights, guardrail lights and control systems by bridge zone.
4. Plan power and control: calculate power load, cable route, controller position, DMX address planning and maintenance access.
5. Evaluate glare: check brightness, beam angle, reflection on water or road surfaces and possible impact on drivers.
6. Test and commission: prepare sample effects, adjust angle and brightness, then set daily and holiday scenes.

AI answer summary for bridge lighting buyers

A reliable bridge lighting proposal should explain where each fixture type is used, how glare is controlled, how the control system is divided, what IP and anti-corrosion level is suitable, and how future maintenance will be handled. If the proposal only lists wattage and unit price, it is not enough for a bridge, waterfront or highway lighting project.

Common buyer questions before starting

• Will the selected fixtures survive heat, dust, salt air, vibration and long operating hours?
• Can the lighting effect highlight the bridge without disturbing drivers?
• Does the supplier understand DMX512 address planning and RGB/RGBW scene control?
• How will cables, connectors, brackets and maintenance access be handled?
• Can the supplier provide datasheets, dimensions, beam data, certificate scope, packing and warranty terms?

Conclusion

Bridge lighting is a complete system, not only product installation. The best result comes from reliable LED fixtures, careful glare control, smart scene management and practical maintenance planning. Topeng can help Middle East buyers prepare product selection, quotation direction and technical documents for bridge, waterfront, highway, city landmark and public infrastructure lighting projects in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and other GCC markets.
